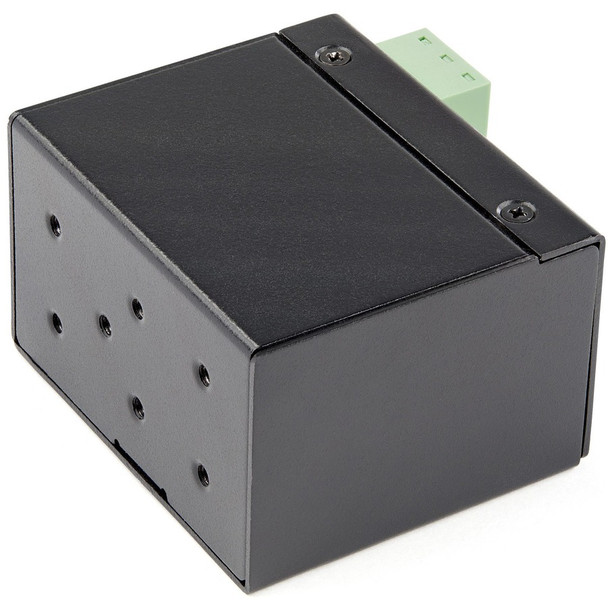

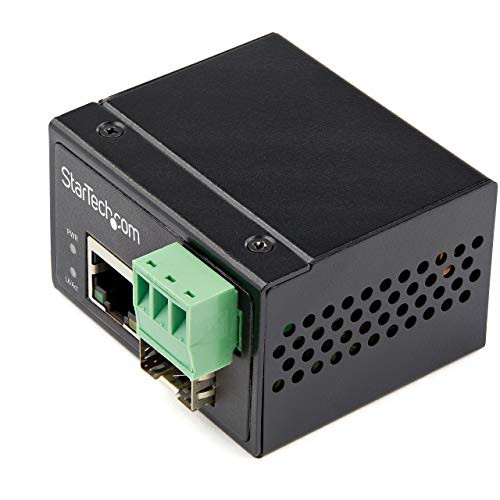

StarTech Industrial Fiber to Ethernet Media Converter - 100Mbps SFP to RJ45/CAT6 SM/MM - Fiber to Copper Network - IP-30 12V Input (248817)

This item is brand-new, factory sealed.

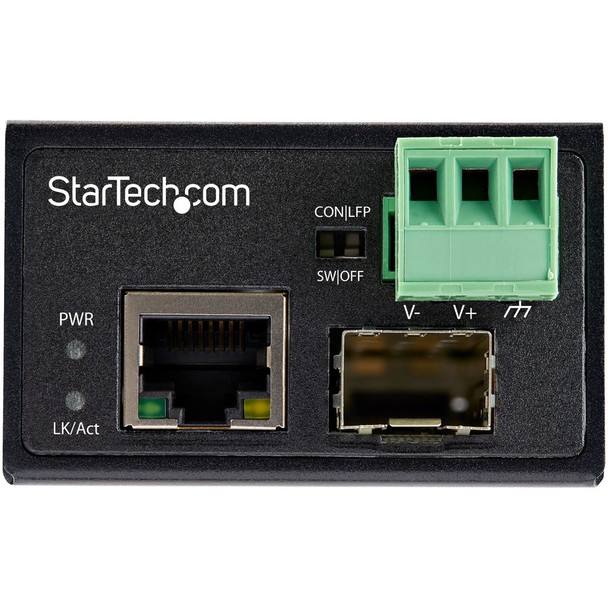

General InformationAn industrial media converter that converts fiber to copper at a network endpoint. A Flexible Solution Covering Different Requirements This media converter features an open SFP slot for any standard SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 18V-36V AC or 12V -56V DC for a high degree of flexibility including applications like solar, automotive, and rail. Includes hardware for DIN rail or wall mounting. For Mission-Critical Applications Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards: Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-Fall: EN 60068-2-32 Dual Power Inputs Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. The IMC100MSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.Interfaces/PortsTotal Number of Ports: 1Network (RJ-45): YesNumber of Network (RJ-45) Ports: 1Media & PerformanceMedia Type Supported: Optical FiberMedia Type Supported: Twisted PairFiber Mode Supported: Single-modeFiber Mode Supported: Multi-modeMaximum Distance Supported: 328.08 ftI/O ExpansionsNumber of Total Expansion Slots: 1Expansion Slot Type: SFPNumber of SFP Slots: 1Network & CommunicationEthernet Technology: Fast EthernetNetwork Technology: 100Base-TXNetwork Technology: 100Base-FXPower DescriptionPower Source: Power SupplyPower Consumption: 1.92 WPlug/Connector Type: Terminal BlockPlug/Connector Type: Type NPhysical CharacteristicsForm Factor: Wall MountableForm Factor: DIN Rail MountableHeight: 2"Width: 1.4"Depth: 2.3"Weight (Approximate): 2.90 ozMiscellaneousPackage Contents: Transceiver/Media Converter Mounting Hardware Kit Quick-Start Guide Terminal Block to Barrel Power Connector Adapter Terminal Block Environmentally Friendly: YesEnvironmental Certification: RoHSEnvironmental Certification: WEEECountry of Origin: TaiwanWarrantyLimited Warranty: 2 Year
INDUSTRIAL FIBER TO ETHERNET
