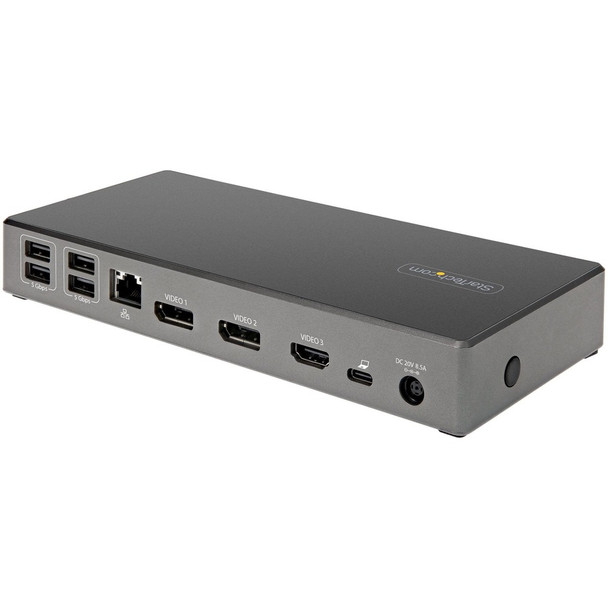

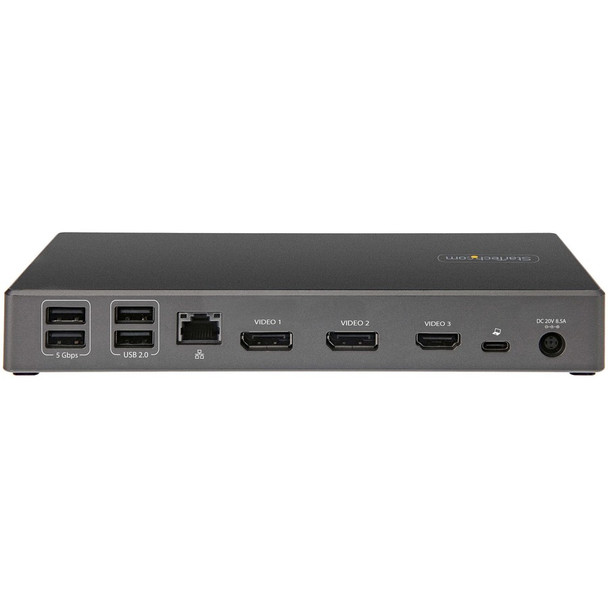

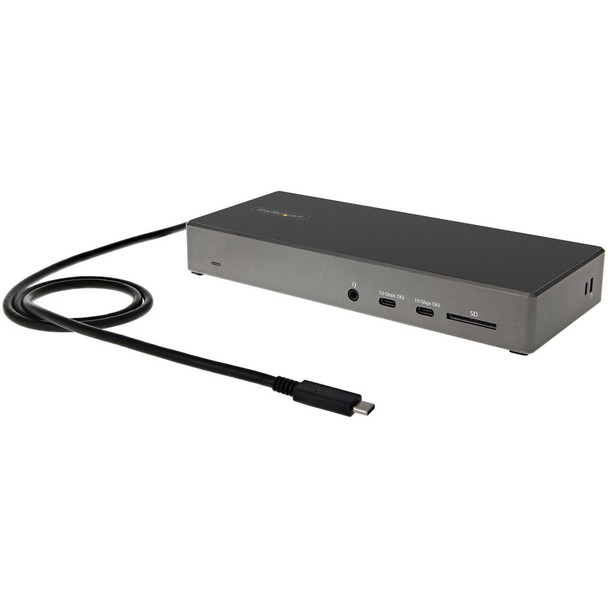

StarTech USB C Dock DK31C2DHSPD

This item is brand-new, factory sealed.

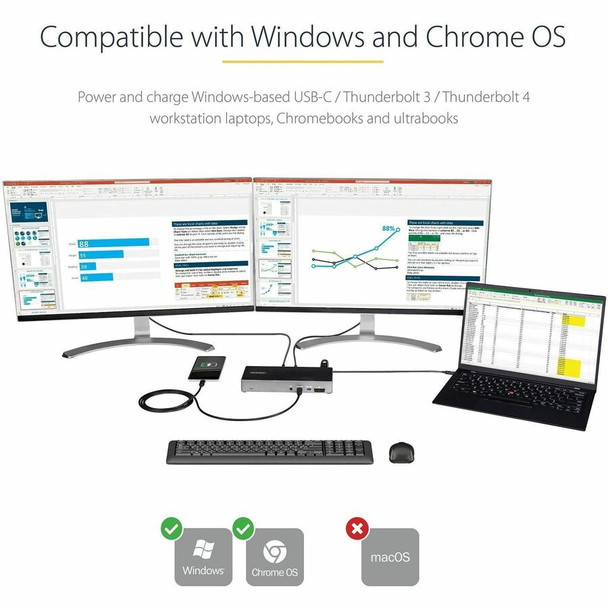

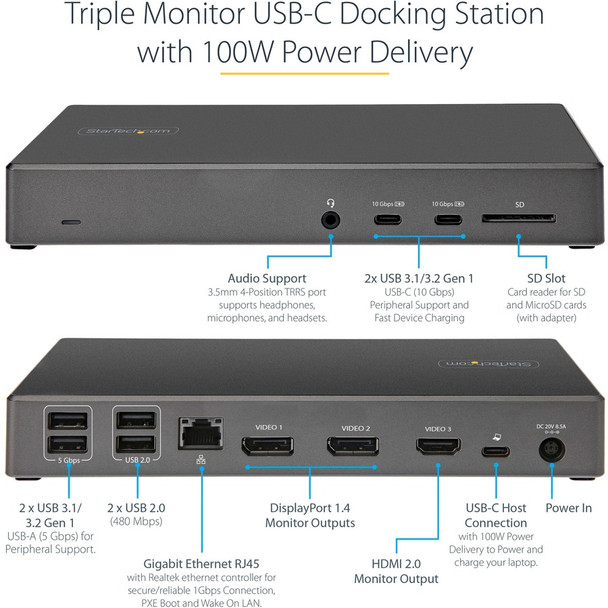

General InformationThis USB-C Gen 2 10Gbps docking station turns your USB-C or Thunderbolt 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.HDMI & DisplayPort for Multiple Monitor Outputs This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements. DP 1.4 HBR3 with DSC EnabledDP 1.4 HBR3 (without DSC)DP 1.2 HBR2 Triple Display Up to 4096 x 2160 @ 30HzUp to 1920 x 1080 @ 60HzUp to 1600 x 900 @ 60HzDual Display Up to 4096 x 2160 @ 60Hz HDMI port + DP port or 2 DP portsUp to 2560 x 1440 @ 60HzUp to 1920 x 1080 @ 60HzSingle DisplayUp to 4096 x 2160 @ 60HzUp to 3840 x 2160 @ 60HzUp to 3840 x 2160 @ 30HzPower & Charge with 100W Power Delivery Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage. Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected. Integrated 6-Port USB Hub & SD Card Reader This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD (4.0) card reader for media storage. 2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Aways-On) 2x USB-A 3.2 Gen 1 - 5 Gbps 2x USB-A 2.0 - 480 Mbps SD 4.0 Card Reader Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic. Additional Security Features This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock. Connected Device Transparency with the StarTech.com MAC Address Changer Utility The DK31C2DHSPD includes a free Windows application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer's MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.Technical InformationConnectivity Technology: WiredDevice Supported: Notebook/Tablet/Workstation/MonitorNumber of Displays Supported: 3Screen Mode Supported: 4KSupported Resolutions: 4096 x 2160Supported Resolutions: 3840 x 2160Supported Resolutions: 2560 x 1440Supported Resolutions: 1920 x 1080Supported Resolutions: 1600 x 900Network & CommunicationEthernet Technology: Gigabit Ethernet
StarTech.com USB C Dock, Triple 4K Monitor USB-C Docking Station with DP 1.4 & DSC, 2x DisplayPort & 1x HDMI, 100W PD, 6x USB (2x 10Gbps)

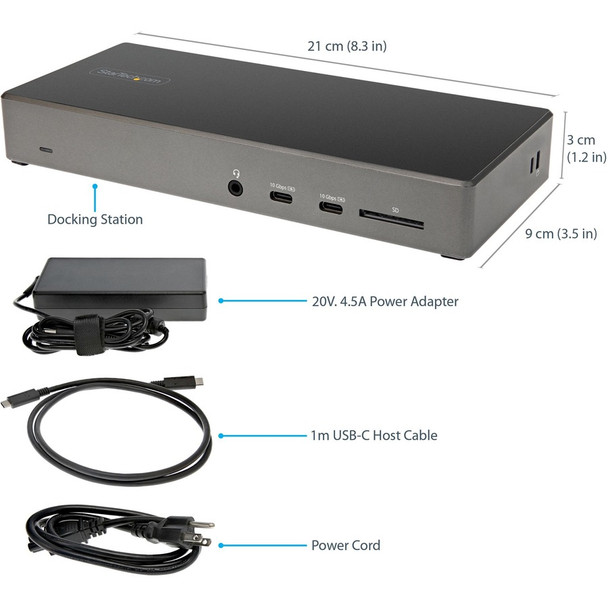

Package Contents:

• Docking Station
• AC Adapter
• 2 x Power Cable NA/JP & ANZ
• 1 x USB-C Cable (1 m)
• Quick-Start Guide
