Startech 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane For 3.5in Sas Ii/sata Iii - 6 Gbps Hdd - 3 X Total Bay - 3 X 3.5 Bay - Serial Ata/600 (hsb3satsasba)"
(No reviews yet)
Write a Review
- SKU:
- 18150177
- MPN:
- hsb3satsasba
- Availability:
- Usually ships the same or next business day. In stock at our CA, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/31/2026 07:08:48 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $107.60 each 107.6 |
| Buy 3 or above | and pay only $105.20 each 105.2 |
- Stock Update:
- 01/31/2026 07:08:48 PM PST
Description
This item is brand-new, factory sealed.

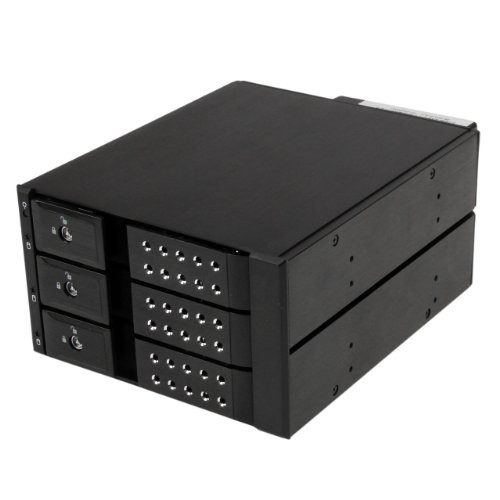

Easily connect and hot swap up to three 3.5" SATA/SAS hard drives from two 5.25" bays. The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5" SATA or SAS hard drives (HDD).For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accomodation for enterprise system applications.

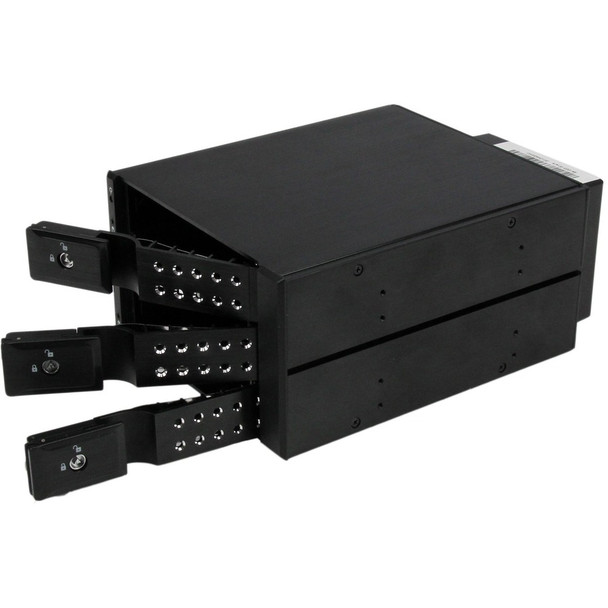

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Features
Package Contents:
EU RoHS
Yes
China
- 3 SATA HDD Backplane
- 1 x Installation Screw Kit
- 1 x Instruction Manual
- 2 x Bay Key s
- 3 x 18" SATA Cables
Environmental Certification:
EU RoHS
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Product Material | Aluminum |
| Cooling Fan | Yes |
| Form Factor | Internal |
| Weight (Approximate) | 2.70 lb |
| Product Color | Black |
| Height | 4.3" |
| Color Family | Black |
| Compatible Drive Bay Width | 5.25" |
| Width | 5.7" |
| Depth | 7.6" |
| Warranty | |
| Limited Warranty | 2 Year |
| I/O Expansions | |
| Number of Total Expansion Bays | 3 |
| Number of 3.5" Bays | 3 |
| Interfaces/Ports | |
| Network (RJ-45) | No |
| Host Interface | Serial ATA/600 |
| Drive Interface |
|
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5" SATA or SAS hard drives (HDD). For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications. For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure. The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer |
| Product Type | Drive Enclosure |
| Product Name | 3 SATA HDD Backplane |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | HSB3SATSASBA |
| Packaged Quantity | 1 Each |
| Network & Communication | |
| Wireless LAN | No |
| Technical Information | |
| Number of Hard Drives Supported | 3 |
| Number of Hard Drives Installed | No |
