StarTech 4 Bay SATA HDD Docking Station - For 2.5 / 3.5in SSD / HDDs - USB 3.1 [10Gbps] - USB-C / USB-A - Hard Drive Docking Station (223933)

This item is brand-new, factory sealed.

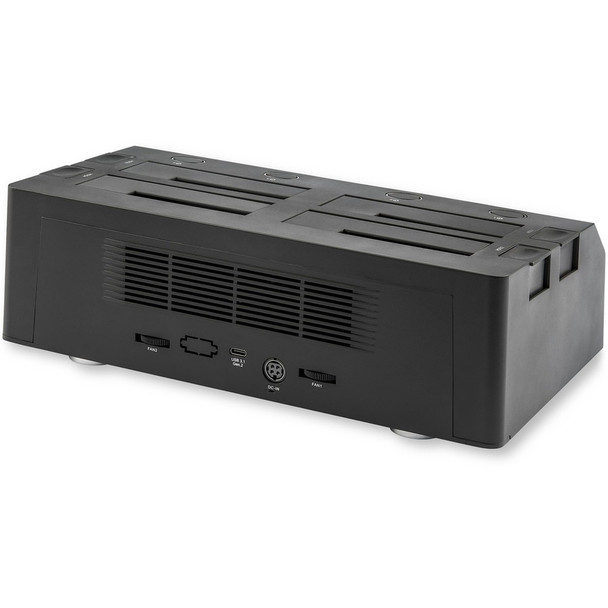

This 4-bay SATA HDD docking station lets you access up to four solid-state drives or hard drives simultaneously over USB 3.1 (10Gbps), and hot swap drives with ease. Ideal for IT professionals, the docking station provides large data capacity and fast file transfers, helping you manage your workflow more efficiently.

Save time accessing and managing your data

When youre managing a large number of drives, the HDD/SSD docking station saves you time. Quickly dock and swap your drives for disk imaging, data recovery from failing drives, data backups, or other tasks.

The hard drive docking station also has SMART support, for accessing important drive information such as hours in use, number of power cycles, and disk health.

Fast data transfers

With USB 3.1 Gen 2, the HDD docking station lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.

Convenient compatibility

The hard drive docking station includes a USB Type-C cable, for connecting to USB-C equipped laptops and devices, and a USB Type-A cable, for backward compatibility with your existing USB 3.0, 2.0 and 1.x devices.

The docking station also works with 2.5 and 3.5 IDE hard drives, mSATA drives and M.2 drives using a compatible StarTech.com adapter:

IDE hard drives: Use StarTech.com adapter SAT2IDEADP SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks

mSATA drives: Use StarTech.com adapter SAT32MSAT257 mSATA SSD to 2.5in SATA Adapter Converter

M.2 drives: Use StarTech.com adapter SAT32M225 M.2 NGFF SSD to 2.5in SATA Adapter Converter

The SDOCK4U313 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
HARDWARE
Bus Type
USB 3.1 Gen 2
Chipset ID
VIA Labs - VL820
VIA Labs - VL715
Compatible Drive Types
SATA
Drive Installation
Removable
Drive Size
2.5in and 3.5in
Fan Bearing Type
Sleeve Bearing
Fan(s)
Yes
Fans
2 - 60 mm
Interface
USB 3.1 Gen 2
Number of Drives
4
PERFORMANCE
4Kn Support
Yes
Hot Swap Capability
Yes
Insertion Rating
10000
Max Drive Capacity
Tested up to 10TB
Maximum Data Transfer Rate
10Gbps
MTBF
30000 hours
Noise Level
19.04 dBA
S.M.A.R.T. Support
Yes
TRIM Support
Yes
Type and Rate
USB 3.1 Gen 2 - 10 Gbit/s
SATA III (6 Gbps)
UASP Support
Yes
CONNECTOR(S)
Drive Connectors
4 - 22 pin SATA Data Power Combo Receptacle
Host Connectors
1 - USB Type-C (24 pin) USB 3.1 (10Gbps) Female
SOFTWARE
OS Compatibility
OS independent No software or drivers required
INDICATORS
LED Indicators
4 - Power
4 - Activity
POWER
Input Current
2.0A
Input Voltage
100 to 240 AC
Output Current
6500mA
Output Voltage
12 DC
Plug Type
4-pin DIN
Power Consumption (In Watts)
78
Power Source
AC Adapter Included
ENVIRONMENTAL
Humidity
20% to 80% RH
Operating Temperature
5^oC to 35^oC (41^oF to 95^oF)
Storage Temperature
-20^oC to 50^oC (-4^oF to 122^oF)
PHYSICAL CHARACTERISTICS
Color
Black
Enclosure Type
Plastic
WHATS IN THE BOX
Included in Package
1 - docking station
1 - 3.3 ft (1 m) USB 3.1 (Type-C) cable
1 - 3.3 ft (1 m) USB 3.1 (Type-A) cable
1 - universal power adapter (NA/JP, UK, EU, ANZ)
1 - quick-start guide
Item Dimension (L"xW"xH")
16 x 8 x 11
Weight
11.00 LB
Warranty Information
2 Year Warranty
