StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650 - Mini PCI Express - 4 x DB-9 Male RS-232 Serial - Full-length Plug-in Card MPEX4S552
(No reviews yet)
Write a Review
- SKU:
- 18049629
- MPN:
- mpex4s552
- Availability:
- Out of stock
- Stock Update:
- 07/03/2025 11:50:07 AM PST
- Stock Update:
- 07/03/2025 11:50:07 AM PST
Description
This item is brand-new, factory sealed.

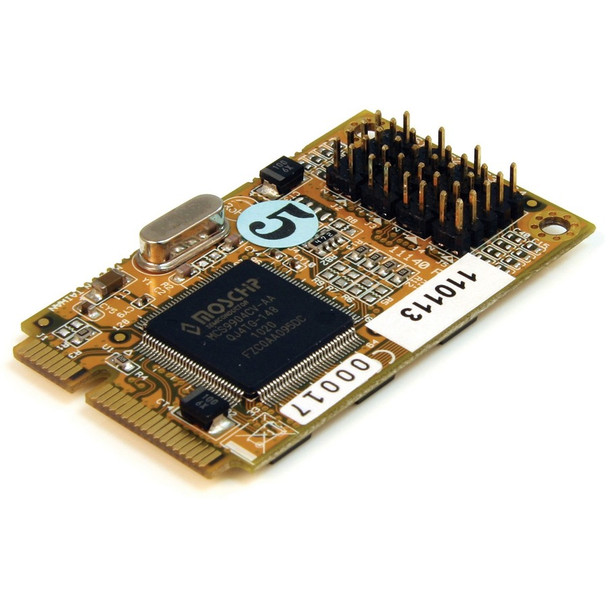

he MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality.A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards . Card Type
Embedded
Color
Green
Industry Standards
PCI Express Base Specification, Revision 1.1
Interface
serial Ports
4
Serial Protocol
RS-232
Max Baud Rate
921.6 Kbps
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2 FIFO
256-byte
Parity
None, Odd, Even, Space, Mark
Flow Control
None, Xon/Xoff, RTS/CTS
Bus Type
mini PCI Express
External Ports
4 - DB-9 (9 pin D-Sub) Male Chipset ID
MosChip MCS9904CV-AA
OS Compatibility
Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64)/ CE 6.0
Windows Server 2008 R2/ 2003(32/64)/ 2000 Linux 2.6.xItem Dimension (L"xW"xH"):
8.66 x 5.91 x 1.57
Weight:
0.48 lb
Warranty Information
Lifetime Warranty
Features
Package Contents:
Yes
Yes
Taiwan
- 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
- 4 x DB9 Ribbon Cable
- 1 x Driver CD
- 1 x Instruction Manual
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Weight (Approximate) | 5.30 oz |
| Product Color | Green |
| Height | 1.2" |
| Color Family | Green |
| Width | 0.4" |
| Card Length | Full-length |
| Warranty | |
| Limited Warranty | Lifetime |
| Interfaces/Ports | |
| Ports Expandability | 4 x DB-9 RS-232 - Serial |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality. A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards . Backed by a StarTech.com Lifetime Warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer |
| Product Type | Multiport Serial Adapter |
| Product Name | 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MPEX4S552 |
| Packaged Quantity | 1 Each |
| Technical Information | |
| Host Interface | Mini PCI Express |
| Maximum Data Transfer Rate | 7.20 Mbit/s |
| Platform Supported |
|
