Startech 5 Port Industrial Ethernet Switch - Din Rail Mountable - 5 Ports - 5 X Rj-45 - 10/100base-tx - Rail-mountable (ies5102)
(No reviews yet)
Write a Review
- SKU:
- 18153720
- MPN:
- ies5102
- Availability:
- Usually ships the same or next business day. In stock at our PA, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/21/2026 06:31:44 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $90.66 each 90.66 |
| Buy 3 - 4 | and pay only $88.26 each 88.26 |
| Buy 5 - 6 | and pay only $86.35 each 86.35 |
| Buy 7 or above | and pay only $83.47 each 83.47 |
- Stock Update:
- 01/21/2026 06:31:44 AM PST
Description
This item is brand-new, factory sealed.
Expand your network connectivity with this rugged unmanaged 10/100Mbps switch. This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.Conquer the tough demands of industrial environments
Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.
Get up and running in no time

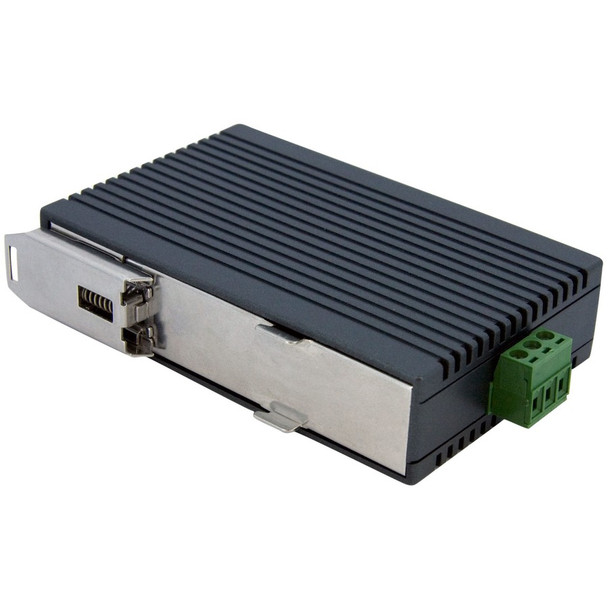

This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.
Reduce your energy costs with Energy-Efficient Ethernet
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Package Contents:
- 5 Port Industrial Ethernet Switch - DIN Rail Mountable
- 1 x Terminal Block
- 1 x Instruction Manual CD
Features
Package Contents:
Yes
Yes
Taiwan
- 5-Port Industrial Ethernet Switch - DIN Rail Mountable
- 1 x Terminal Block
- 1 x Instruction Manual CD
Certifications & Standards:
- CE
- FCC
Industry Sandards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3az
- IEEE 802.1P
- EN61000-6-2
- EN61000-6-4
- EN61000-4-3 (Radiated RFI Standards)
- EN61000-4-4 (Burst Standards)
- EN61000-4-6 (Induced RFI Standards)
- EN61000-4-8 (Magnetic Field Standards)
- IEC60068-2-6 Fc (Vibration)
- IEC60068-2-27 Ea (Shock)
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
Specs
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | No |
| Power Consumption | 2.12 W |
| Physical Characteristics | |
| Product Material | Plastic |
| Form Factor | Rail-mountable |
| Weight (Approximate) | 5.30 oz |
| Length | 2.8" |
| Product Color | Black |
| Height | 4.3" |
| Color Family | Black |
| Width | 1" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Bypass | No |
| USB | No |
| Stack Port | No |
| Management Port | No |
| Port/Expansion Slot Details | 5 x Fast Ethernet Network |
| Total Number of Network Ports | 5 |
| Modular | No |
| Token Ring Port | No |
| LRE Port | No |
| Number of Network (RJ-45) Ports | 5 |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses. Conquer the tough demands of industrial environments Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly. Get up and running in no time This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets. Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required. Reduce your energy costs with Energy-Efficient Ethernet With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs. The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer |
| Product Type | Ethernet Switch |
| Product Name | 5-Port Industrial Ethernet Switch - DIN Rail Mountable |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IES5102 |
| Packaged Quantity | 1 Each |
| Media & Performance | |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
| Reliability | |
| MTBF | 1179133 Hour |
