Startech IT

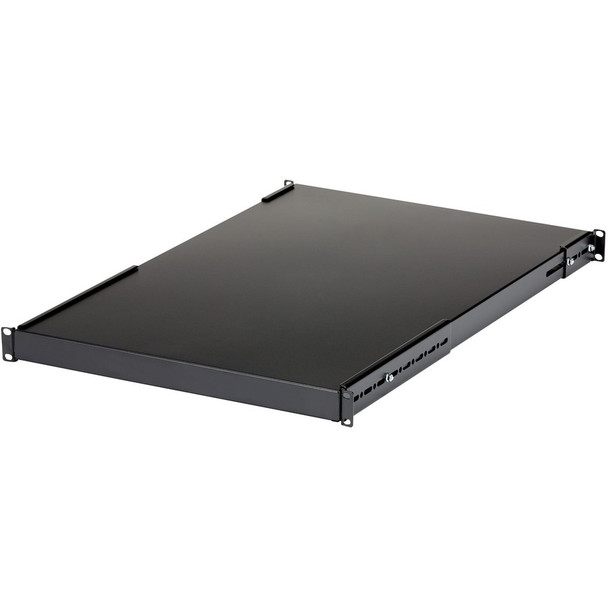

StarTech 1U Adjustable Mounting Depth Rack Mount Shelf - Heavy Duty Fixed Rack Shelf - 175lbs / 80kg (ADJSHELFHD)
(No reviews yet)
Write a Review
- SKU:
- 18057063
- MPN:
- adjshelfhd
- Availability:
- Usually ships the same or next business day. In stock at our CA, GA, IL, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/27/2026 07:08:51 PM PST
- Stock Update:
- 01/27/2026 07:08:51 PM PST
Description
This item is brand-new, factory sealed.

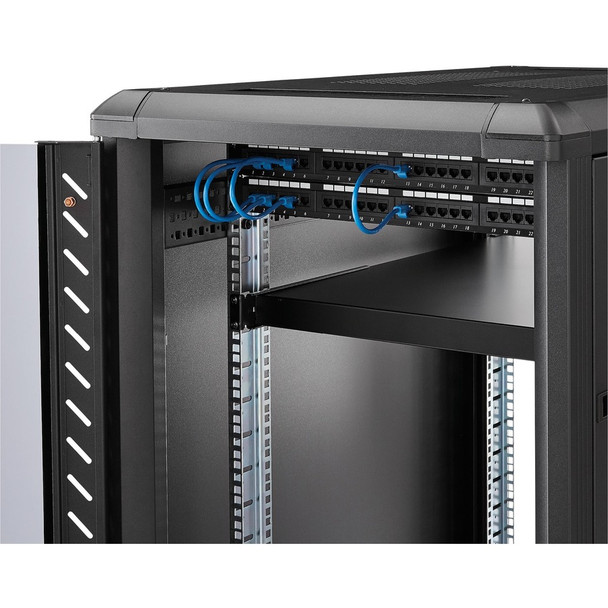

Add a high capacity, adjustable depth fixed shelf into almost any server rack or cabinet. The ADJSHELFHD 1U Adjustable Heavy Duty Fixed Rack Mount Shelf lets you add a high-capacity, adjustable 1U shelf to virtually any standard 19-inch server rack or cabinet. This heavy duty rackmount shelf can be adjusted from 19.5in to 38in (mounting depth) to fit your rack. Constructed using 1.0mm SPCC commercial grade cold-rolled steel, providing the ability to hold up to 80kg (175lbs) of equipment - a durable solution for storing large, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet.
Backed by a StarTech.com Lifetime warranty.
Package Contents:
- Rack Shelf
- 2 x Front Mounting Bracket
- 2 x Rear Mounting Bracket
- 8 x M5 Panel Screw
- 1 x Instruction Manual
Features
End of Life Manual Availability:
Yes
https://media.startech.com/cms/pdfs/adjshelfhd_rohs.pdf
Yes
EU RoHS
https://media.startech.com/cms/pdfs/adjshelfhd_rohs.pdf
Yes
Yes
Taiwan
Yes
EU RoHS Declaration URL:
https://media.startech.com/cms/pdfs/adjshelfhd_rohs.pdf

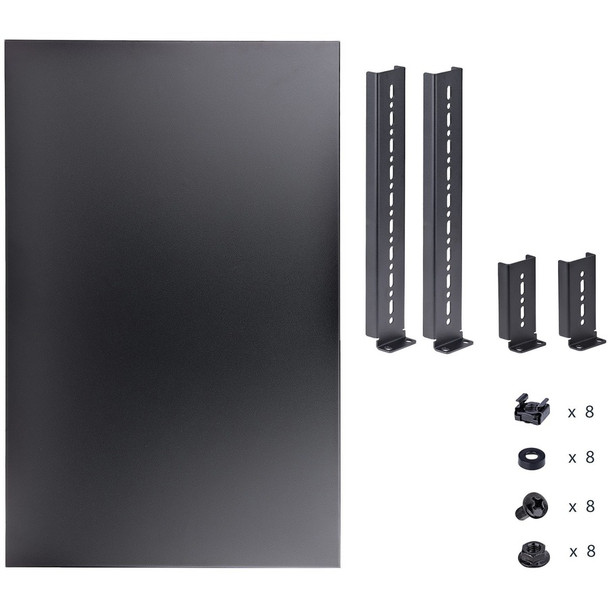

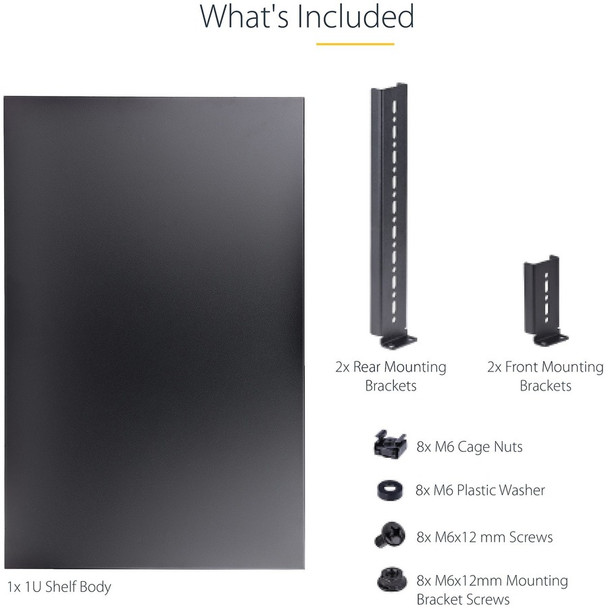

Package Contents:
- ADJSHELFHD Rack Shelf
- 2 x Front Mounting Brackets
- 2 x Rear Mounting Brackets
- 1 x Instruction Manual
- 8 x M6x12 mm Screws
- 8 x M6 Cage Nuts
- 8 x M6 Plastic Washer
- 8 x M6x12mm Mounting Bracket Screws
TAA Compliant:
Yes
Environmental Certification:
EU RoHS
Additional Information:
- EIA RS310-D Standard
- Adjustable mounting depth brackets make it simple to add a storage shelf to a wide variety of racks or cabinets
REACH Declaration URL:
https://media.startech.com/cms/pdfs/adjshelfhd_rohs.pdf
Environmentally Friendly:
Yes
REACH free of SVHC:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Product Material | SPCC |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 13.70 lb |
| Rack Width | 19" |
| Length | 27.6" |
| Product Color | Black |
| Static/Stationary Weight Capacity | 330.80 lb |
| Height | 1.7" |
| Color Family | Black |
| Width | 19" |
| Rack Height | 1U |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The ADJSHELFHD 1U 4-post Adjustable Heavy Duty Fixed Rack Mount Shelf lets you add a high-capacity, adjustable 1U shelf to virtually any standard 4-post 19-inch server rack or cabinet. This heavy duty rackmount shelf can be adjusted from 19.5in to 38in (mounting depth) to fit your rack. Constructed using 1.0mm SPCC commercial grade cold-rolled steel, providing the ability to hold up to 150kg (330lbs) of equipment - a durable solution for storing large, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet. The ADJSHELFHD is backed for life, including free lifetime 24/5 multi-lingual technical assistance. The ADJSHELFHD 1U 4-post Adjustable Heavy Duty Fixed Rack Mount Shelf lets you add a high-capacity, adjustable 1U shelf to virtually any standard 4-post 19-inch server rack or cabinet. This heavy duty rackmount shelf can be adjusted from 19.5in to 38in (mounting depth) to fit your rack. Constructed using 1.0mm SPCC commercial grade cold-rolled steel, providing the ability to hold up to 150kg (330lbs) of equipment - a durable solution for storing large, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet. The ADJSHELFHD is backed for life, including free lifetime 24/5 multi-lingual technical assistance. More from the Manufacturer More from the Manufacturer |
| Product Type | Rack Shelf |
| Product Name | ADJSHELFHD Rack Shelf |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ADJSHELFHD |
| Packaged Quantity | 1 Each |
| Technical Information | |
| Application/Usage |
|
| Rack Post Quantity | 4 |
| Features |
|
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
StarTech 1U Adjustable Mounting Depth Rack Mount Shelf - Heavy Duty Fixed Rack Shelf - 175lbs / 80kg (ADJSHELFHD)
$122.25
