StarTech 4-Port Multi-Gigabit PoE++ Injector AS445CPOEINJECTOR
- SKU:
- 20573808
- MPN:
- as445c-poe-injector
- Availability:
- Usually ships the same or next business day. In stock at our PA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/22/2026 03:17:07 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $339.73 each 339.73 |
- Stock Update:
- 02/22/2026 03:17:07 AM PST
Description
This item is brand-new, factory sealed.
StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged (AS445C-POE-INJECTOR)- 4-PORT MULTI-GIGABIT POE INJECTOR: Multiport PoE++ injector supports up to 5Gbps (NBASE-T) w/auto-negotiation; TAA-compliant Power Sourcing Equipment (PSE) delivers power & data over Ethernet cable; Supports PoE/PoE+/PoE++ 95W max; Level-4 ESD protection

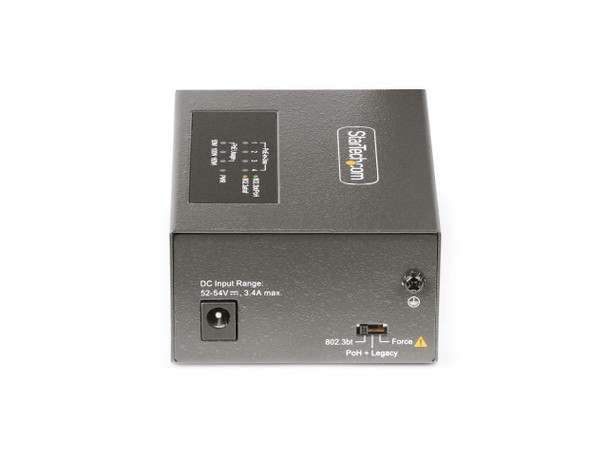

- SELECTABLE POWER OUTPUT: DIP switch allows user to select the power output between auto-negotiation up to 90W, 95W PoH+, or forced legacy 60W (UPoE); 802.3af/802.3at/802.3bt power modes available on all ports; Total power budget of 160 Watts
- MULTI-GIGABIT: Supports 5/2.5/1Gbps & 100/10Mbps; 5GBASE-T/5GBASE-T compatible; Provide data & power to Powered Devices (PDs) up to 328ft (100m) w/Cat 5e/6/6a cabling; Supports WoL/PXE/9K Jumbo frames; Unmanaged PoE injector streamlines setup & deployment
- RUGGED ENCLOSURE: Durable full-metal housing ensures durability; Mount the PoE injector to a wall or a DIN rail with the included bracket; LAN transformers isolate the input/output data, and a power circuit prevents interference between ports
- STATUS LEDS: Top-facing color-coded diagnostic LEDs indicate the current PoE mode per Ethernet port and current PoE power budget of the injector for quick at-a-glance status of the system
- Brand: ?StarTech.com
- Item model number: ?AS445C-POE-INJECTOR
- Item Weight: ?9.8 ounces
- Product Dimensions: ?3.7 x 2.8 x 1.5 inches
- Item Dimensions LxWxH: ?3.7 x 2.8 x 1.5 inches
- Color: ?Black
- Manufacturer: ?StarTech.com
The Power over Ethernet (PoE) Injector is designed for seamless integration into a network infrastructure, delivering multigigabit speeds of 5/2.5/1Gbps and 100/10Mbps across 4 Ethernet ports, utilizing a single Cat5e (or better) cable for network data and power transmission extending up to 328ft (100m) for remote installations. With PoE, PoE+, PoE++ compatibility, and a selectable power output switch (90W, 95W PoH, or legacy 60W), it ensures effortless connectivity with Powered Devices (PD) such as IP cameras, access control devices, POSs, wireless access points, and digital signage. This versatile PoE Injector adheres to IEEE 802.3af, 802.3at, and 802.3bt standards, delivering up to 52V DC and 95Watts, eliminating the need for a separate power source. The Level-4 ESD protection (15kV air and 8kV contact) enhances device safety and reduces EMI. The support for 2.5GBASE-T and 5GBASE-T technology reduces network slowdowns during data-intensive tasks such as high-quality video streaming, high-speed Internet access, online/local backups, and FTP transfers. This TAA-compliant PoE adapter is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.
Package Contents:
- PoE++ Injector
- 1 x Universal Power Adapter
- 1 x DIN Rail Mounting Kit
- 1 x Quick-Start Guide
Features
- PoE++ Injector
- 1 x Universal Power Adapter
- 1 x DIN Rail Mounting Kit
- 1 x Quick-Start Guide
Certifications & Standards:
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Compatibility:
- IP cameras
- access control devices
- remote kiosks (POSs)
- wireless access points
- PoE lighting
- digital signage.
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Power Description | |
| Maximum Output Voltage | 54 V DC |
| Maximum Output Current | 3.30 A |
| Maximum Output Power | 160 W |
| Input Voltage |
|
| Maximum Input Current | 2.50 A |
| Physical Characteristics | |
| Form Factor | DIN Rail/Wall Mountable |
| Weight (Approximate) | 9.80 oz |
| Length | 3.7" |
| Product Color | Black |
| Height | 1.5" |
| Width | 2.8" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Output Ports | 4 x Multi-Gigabit PoE++ |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | This 4-Port Multi-Gigabit PoE++ Injector Hub serves as Power Sourcing Equipment (PSE) and enables multigigabit speeds of 5Gbps, 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps across four Ethernet ports. This mid/end-span injector is capable of transmitting network data and power up to 328ft (100m) for remote installations. The PoE, PoE+, PoE++ compatibility and selectable power output ensure seamless compatibility with Powered Devices (PD). The TAA-compliant injector includes a Universal Power Adapter for different regions (NA/JP, EU, UK, and ANZ). Versatile PoE Injector Multiport PoE Injector supports the IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) standards for Power Sourcing Equipment (PSE), delivering up to 52V DC and 95Watts. This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks (POSs), wireless access points, PoE lighting, and digital signage. Experience streamlined cable management with all network cables routed from one side of the unit for a clean and organized setup. Flexible Power Options Tailor the power output to the specific needs of the device using the Power Output Switch. The options include 90W, 95W PoH, or legacy 60W (for UPoE/UPoE+) for all the ports on the PoE Injector Adapter. The Level-4 ESD protection (15kV air and 8kV contact) enhances device safety and reduces EMI for stable operation, minimizing the risk of downtime and hardware failures. Increased Network Speeds The unmanaged PoE Injector with NBASE-T technology provides access to an increased bandwidth up to 5Gbps, significantly reducing network slowdowns during data-intensive applications such as streaming high-definition video feeds, high-speed Internet, access local network resources, online or local network backups, and FTP access. |
| Product Type | PoE++ Injector |
| Product Name | PoE++ Injector |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | AS445CPOEINJECTOR |
| Packaged Quantity | 1 |
| Technical Information | |
| Protection Type | ESD Protection |
