StarTech Conference Table Connectivity Box for A/V - USB Charging - LAN - HDMI / VGA / DisplayPort Inputs - HDMI Output - 4K (222357)

This item is brand-new, factory sealed.

Overview
This conference table connectivity box for A/V installs in your table or lectern to provide A/V, networking, and USB charging connectivity in your boardroom, auditorium, or classroom. The box makes it easy to connect HDMI, DisplayPort and VGA laptops to your rooms large HDMI display, and provides LAN and USB power connectivity for charging USB devices. The box also provides some boardroom cable management by hiding connectivity cables in your table.

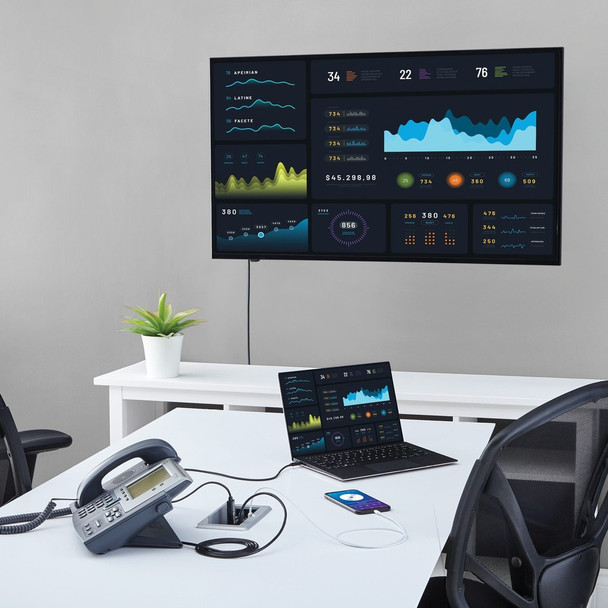

Collaborate Easily Using the Big Screen
The table box enables presenters in your conference room to easily share their laptop screen on the rooms large display or projector, with supported resolutions up to 4K 30Hz.
To share video from virtually any laptop, the table box supports HDMI, VGA and DisplayPort inputs and automatically outputs the most recently connected input to the HDMI display.

Provide Convenient USB Charging and Wired Network Connectivity
Enabling visitors in your conference room to charge their iPhone, iPad, smartphone, or tablet, the table box features three USB charge ports. Plus, the box features an Ethernet pass-through port to provide secure wired network connectivity in rooms where Wi-Fi isnt available.

Add Style and Technological Sophistication to Any Room
The boardroom interconnect box has an aluminum finish that complements your space. The hideaway panel eliminates clutter by discreetly covering the connection ports when theyre not in use.HARDWARE
Active or Passive Adapter:Active
Passive
Audio:Yes
AV Input:VGA
3.5 mm Audio
HDMI
DisplayPort
AV Output:HDMI
USB Pass-Through:No
PERFORMANCE
Aspect Ratio:Wide (16:9)
Maximum Analog Resolutions:1920 x 1200 60Hz
Maximum Cable Length:50 ft (15.2 m)
Maximum Digital Resolutions:3840x2160 (4K) 30Hz
Supported Resolutions:3840x2160 (4K) 30Hz (HDMI and DP Inputs Only)
2560x1600 60Hz (HDMI and DP Inputs Only)
1920x1200 60Hz (Maximum VGA Input)
1920x1080 (1080p) 60Hz
1280x720 (720p) 60Hz
Lower resolutions and refresh rates, not stated but below the maximum, may also be supported
Video Revision:HDMI 1.4
DisplayPort 1.2
Wide Screen Supported:Yes
CONNECTOR(S)
Connector A:1 - HDMI (19 pin) Female Input
1 - VGA (15 pin, High Density D-Sub) Female Input
1 - 3.5 mm Mini-Jack (3 Position) Female Input
1 - RJ-45 Female
3 - USB Type-A (4 pin) USB 2.0 Female
1 - DisplayPort (20 pin) Female Input
Connector B:1 - HDMI (19 pin) Male Output
1 - RJ-45 Female
SPECIAL NOTES / REQUIREMENTS
Note:VGA (Input) to HDMI (Output) - HDMI Output Port is Active
DisplayPort (Input) to HDMI (Output) - HDMI Output Port is Active
HDMI (Input) to HDMI (Output) - HDMI Output Port is Passive
POWER
Input Voltage:100 to 240 AC
Output Current:2A
Output Voltage:12 DC
Plug Type:N
Power Consumption (In Watts):24
Power Source:AC Adapter Included
ENVIRONMENTAL
Humidity:10% to 85% (non-condensing)
Operating Temperature:0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature:-20^oC to 60^oC (-4^oF to 140^oF)
PHYSICAL CHARACTERISTICS
Color:Silver
WHATS IN THE BOX
Included in Package:1 - conference table box
1 - universal power adapter (NA/JP, EU, UK, ANZ)
1 - die cut outline
2 - mounting brackets
1 - cable tie bracket
2 - cable tie bracket screws
1 - quick-start guide
Item Dimension (L inchxW inchxH inch)
10 x 8 x 7Weight
5.00lbWarranty Information
2 Year Warranty

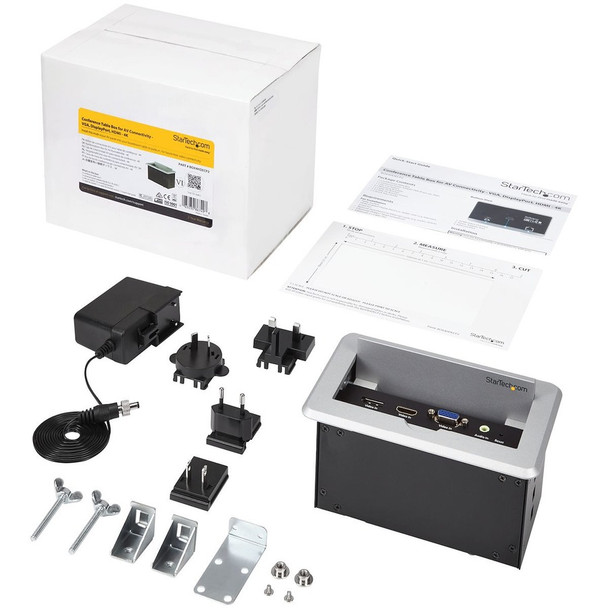

Package Contents:

• Conference Table Connectivity Box for A/V - 4K
• 1 x Universal Power Adapter (NA/JP, EU, UK, ANZ)
• 1 x Die Cut Outline
• 2 x Mounting Brackets
• 1 x Cable Tie Bracket
• 2 x cable Tie Bracket Screws
• 1 x Quick-Start Guide
