Startech
StarTech Dual-Monitor USB-C Docking Station 101NUSBCDOCK
- SKU:
- 20519646
- MPN:
- 101n-usbc-dock
- Availability:
- Usually ships the same or next business day. In stock at our IL, SC warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/29/2026 03:55:53 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 3 | and pay only $152.73 each 152.73 |
| Buy 4 or above | and pay only $145.24 each 145.24 |
- Stock Update:
- 03/29/2026 03:55:53 AM PST
Description
This item is brand-new, factory sealed.

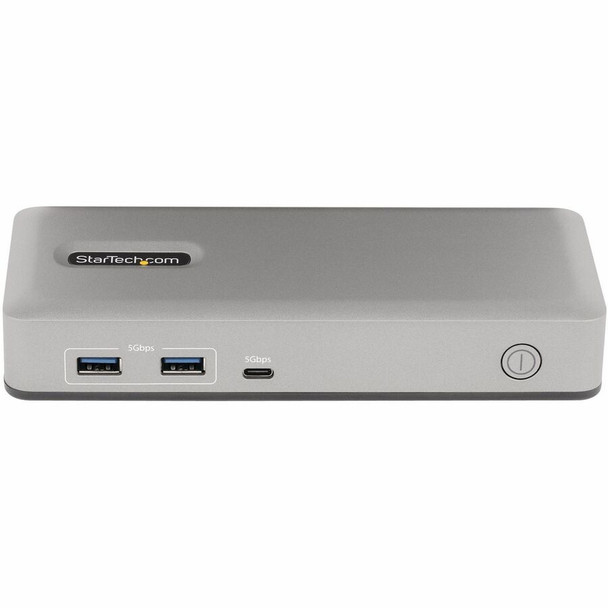

This USB Type-C Docking Station expands the connectivity of a USB-C laptop, enabling support for dual monitors and adding seven downstream USB ports. The USB-C Dock features driverless installation. It's compatible with USB-C and Thunderbolt 3/4 computers and works with Windows and ChromeOS computers. The Dock features a locking USB-C host port and includes a USB-IF Certified 3.3ft (1m) locking host cable.
High-Performance Dual Video via MST
The docking station provides DisplayPort 1.4, HDMI 2.0b and VGA video outputs with support for dual or single video output configurations, creating a powerful workstation. It supports DP 1.4 Alt Mode with MST allowing for uncompressed video performance up to dual 2560x1440 at 60Hz, or single-4K 60Hz on the DisplayPort and HDMI video outputs. Connect a DisplayPort monitor and choose between HDMI or VGA for the second display. This provides users with the flexibility to enjoy dual-monitor functionality with different connectivity options, based on preference or available monitors.
Video performance, such as resolution and refresh rate across both monitors, is dependent upon the host computer and it's video controller. A source device with support for DisplayPort 1.4 and MST is required to achieve maximum performance. Please review the below chart and the specifications of your computer and displays to determine the expected video performance.
Platform
Single Monitor
Resolution
Dual Monitor
Resolution
DisplayPort 1.4 (Intel 11th Generation and Higher)
1x 4K 60Hz
2x 2560 x 1440p 60Hz
DisplayPort 1.2 (Intel 10th Generation and Below) 1x 4K 30Hz 2x 1920x1200/1080p 60Hz
Notes:
- All specified resolutions support RGB color representation (4:4:4)
- Computers with discrete graphics controllers may achieve higher performance
- Chart assumes combination of DisplayPort and HDMI video outputs, maximum VGA resolution is 1920x1200 in any configuration
Full-Featured Docking Station with Built-in 7-Port USB Hub
Connect the docking station to the host computer's USB 3.2 Gen 1 (5Gbps) Type-C port to access a wide range of port connectivity and features, including seven downstream USB ports with a variety of speeds and connector types. The docking station features:
- 1x DisplayPort 1.4 port for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
- 1x HDMI 2.0b port with HDR for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
- 1x VGA port for connecting a Full High-Definition monitor with support for resolutions up to 1080p/1920x1200.
- 2x USB-A (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
- 4x USB-A (USB 2.0 480Mbps) ports for USB HID devices, such as a keyboard and mouse.
- 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
Package Contents:
- Docking Station
- 1 x 3.3ft [1m] USB-C Host Cable (Screw Locking)
- 1 x Universal Power Adapter (North America)
- 1 x Quick-Start Guide
Features
Yes
WEEE Statement:
https://media.startech.com/cms/pdfs/101n-usbc-dock_weee.pdf
EU RoHS Declaration URL:
https://media.startech.com/cms/pdfs/101n-usbc-dock_rohs.pdf
Package Contents:
- Docking Station
- 1 x 3.3ft [1m] USB-C Host Cable (Screw Locking)
- 1 x Universal Power Adapter (North America)
- 1 x Quick-Start Guide
Environmental Certification:
EU RoHS
TAA Compliant:
Yes
Environmentally Friendly:
Yes
REACH Declaration URL:
https://media.startech.com/cms/pdfs/101n-usbc-dock_rohs.pdf
REACH free of SVHC:
Yes
Compatibility:
Compatible with USB-C and Thunderbolt 3/4 computers
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Kensington Security Slot:
Yes
Specs
| Power Description | |
| Maximum Power Supply Wattage | 135 W |
| Power Source Type | Power Adapter |
| Physical Characteristics | |
| Weight (Approximate) | 9.70 oz |
| Product Color | Space Gray |
| Height | 1.20" |
| Color Family | Gray |
| Width | 7.30" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| USB Power Delivery | 85W |
| Number of USB Type-A Ports | 6 |
| USB Type-C Detail | 2 x USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) |
| Number of VGA Outputs | 1 |
| Number of USB Type-C Ports | 1 |
| Number of USB 2.0 Ports | 4 |
| Total Number of USB Ports | 7 |
| DisplayPort Version | 1.4 |
| USB Type-C | Yes |
| VGA | Yes |
| HDMI Version | 2.0b |
| Number of DisplayPorts | 1 |
| Number of HDMI Ports | 1 |
| Host Interface | USB 3.2 (Gen 1) Type C |
| DisplayPort | Yes |
| USB Type-A | Yes |
| HDMI | Yes |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | This USB Type-C Docking Station expands the connectivity of a USB-C laptop, enabling support for dual monitors and adding seven downstream USB ports. The USB-C Dock features driverless installation. It's compatible with USB-C and Thunderbolt 3/4 computers and works with Windows and ChromeOS computers. The Dock features a locking USB-C host port and includes a USB-IF Certified 3.3ft (1m) locking host cable. High-Performance Dual Video via MST The docking station provides DisplayPort 1.4, HDMI 2.0b and VGA video outputs with support for dual or single video output configurations, creating a powerful workstation. It supports DP 1.4 Alt Mode with MST allowing for uncompressed video performance up to dual 2560x1440 at 60Hz, or single-4K 60Hz on the DisplayPort and HDMI video outputs. Connect a DisplayPort monitor and choose between HDMI or VGA for the second display. This provides users with the flexibility to enjoy dual-monitor functionality with different connectivity options, based on preference or available monitors. Video performance, such as resolution and refresh rate across both monitors, is dependent upon the host computer and it's video controller. A source device with support for DisplayPort 1.4 and MST is required to achieve maximum performance. Please review the below chart and the specifications of your computer and displays to determine the expected video performance. Platform Single Monitor Resolution Dual Monitor Resolution DisplayPort 1.4 (Intel 11th Generation and Higher) 1x 4K 60Hz 2x 2560 x 1440p 60Hz DisplayPort 1.2 (Intel 10th Generation and Below) 1x 4K 30Hz 2x 1920x1200/1080p 60Hz Notes: All specified resolutions support RGB color representation (4:4:4) Computers with discrete graphics controllers may achieve higher performance Chart assumes combination of DisplayPort and HDMI video outputs, maximum VGA resolution is 1920x1200 in any configuration Full-Featured Docking Station with Built-in 7-Port USB Hub Connect the docking station to the host computer's USB 3.2 Gen 1 (5Gbps) Type-C port to access a wide range of port connectivity and features, including seven downstream USB ports with a variety of speeds and connector types. The docking station features: 1x DisplayPort 1.4 port for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz. 1x HDMI 2.0b port with HDR for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz. 1x VGA port for connecting a Full High-Definition monitor with support for resolutions up to 1080p/1920x1200. 2x USB-A (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage. 4x USB-A (USB 2.0 480Mbps) ports for USB HID devices, such as a keyboard and mouse. 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage. |
| Product Type | Docking Station |
| Product Name | Docking Station |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 101N-USBC-DOCK |
| Packaged Quantity | 1 |
| Software | |
| Operating System Supported |
|
| Technical Information | |
| Number of Displays Supported | 2 |
| Screen Mode Supported |
|
| Maximum Data Transfer Rate | 640 MB/s |
| Features | Power Delivery Pass-through |
| Supported Resolutions |
|
| Device Supported |
|
| Connectivity Technology | Wired |
