Startech IT

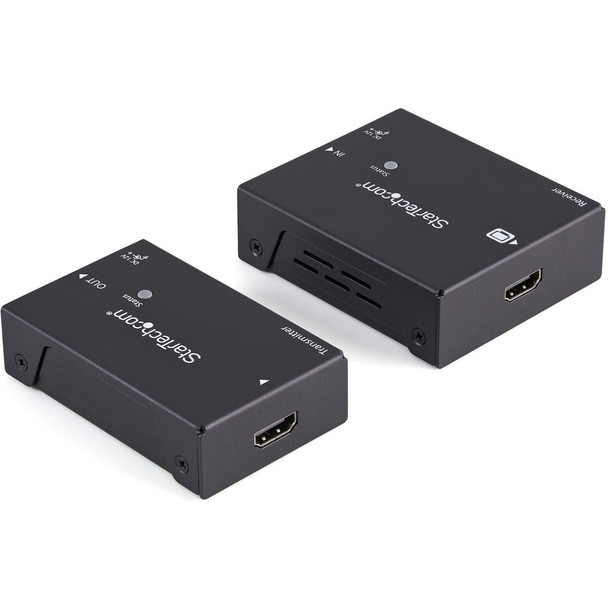

Startech Hdmi Over Cat5e / Cat6 Extender With Power Over Cable - 330 Ft [100m] - 1 Input Device - 1 Output Device - 330 Ft Range - 2 X Network [rj-45] - 1 X Hdmi In (st121hdbtpw)
(No reviews yet)
Write a Review
- SKU:
- 18061269
- MPN:
- st121hdbtpw
- Availability:
- Usually ships in 1-2 business days. In stock at our CA, GA, IL, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/25/2025 07:08:58 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 3 or above | and pay only $371.74 each 371.74 |
- Stock Update:
- 12/25/2025 07:08:58 AM PST
Description
This item is brand-new, factory sealed.
Extend HDMI up to 330ft (100m) over CAT5/CAT6 cable with Power over Cable to Receiver. The ST121HDBTPW video extender kit enables you to extend HDMI audio/video up to 330 feet (100 meters) over a single CAT5e/6 cable. For added versatility, the extender kit supports Power over Cable (POC), which allows power to be sent over the CAT5e/CAT6 cable, powering both the transmitter and receiver with just one adapter.To help you save installation costs, the extender kit can be installed using new or non-existing non-proprietary Ethernet infrastructure wiring with the included mounting brackets. Plus, with support for High-Definition resolutions of up to 1080p and 4K plus the accompanying digital audio, the HDMI extender lets you get the most of your high-end A/V equipment.
The HDMI extender kit includes both the local transmitter and remote receiver units - perfect for point-to-point digital signage applications. To add to the maximum extension distance, the HDMI extender supports HDMI cables up to 32ft on both the local and remote ends.
The ST121HDBTPW is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Features
Package Contents:
Yes
Yes
Taiwan
- 1 x HDMI Extender
- 1 x HDMI Receiver
- 4 x Mounting Brackets
- 2 x Foot Pad Set
- 1 x Universal Power Adapter (NA / EU / UK / AU)
- 2 x Grounding Wires
- 1 x 4ft (1m) Cat5e Cable
- 2 x Screw Sets
- 1 x Instruction Manual
Certifications & Standards:
- CE
- FCC
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Product Material | Aluminum |
| Form Factor | Desktop |
| Receiver Width | 2.64" |
| Receiver Height | 0.98" |
| Length | 3.1" |
| Receiver Depth | 3.15" |
| Receiver Weight (Approximate) | 14.92 oz |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Graphics Modes | 4K |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | This HDBaseT extender Kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility, both the transmitter and receiver can be powered by the same single power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals. What is HDBaseT HDBaseT is a standardized, zero latency, video distribution technology that's revolutionizingHDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio andvideo, along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable. Extend More than Video with HDBaseT For greater versatility than a traditional HDMI extender or HDMI cabling alone, this HDBaseT extender offers HDMI + Power Over Cable in a single kit. The added benefit of power over cable means you'll only need one power source at either side of your extension, great for extending to areas where power outlets may be limited. Astonishing 4K picture quality from an impressive distance With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet.With support for 4K you'll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 130 feet away from your video source. Plus, because the extender supports High-Definition 1080p and lower resolutions at 330 feet away, you can comfortably use this extender to make any video source look great. Hassle-free, Professional Installation with a Single Cable This extender has been specially crafted for a smooth, tidy setup. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Plus, the added benefit of power over cable means you'll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting. The ST121HDBTPW is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support. More from the Manufacturer More from the Manufacturer |
| Product Type | Video Extender Receiver |
| Product Name | HDMI over CAT5 HDBaseT Extender - Power over Cable - Ultra HD 4K - 330 ft (100m) |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST121HDBTPW |
| Packaged Quantity | 1 Kit |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 330 ft |
| Number of Input Devices Supported | 1 |
| Daisy Chain | No |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Startech Hdmi Over Cat5e / Cat6 Extender With Power Over Cable - 330 Ft [100m] - 1 Input Device - 1 Output Device - 330 Ft Range - 2 X Network [rj-45] - 1 X Hdmi In (st121hdbtpw)
$381.11
