Startech.com Hdmi® Over Cat5e / Cat6 Extender W/ Power Over Cable Rs232 Ir And 10/100 Ethernet - 330 Ft [100m] - 1 Input Device - 1 Output Device - 330 Ft Range - 8 X Network [rj-45] (st121hdbt5)
(No reviews yet)
Write a Review
- SKU:
- 18150515
- MPN:
- st121hdbt5
- Availability:
- Out of stock
- Stock Update:
- 07/03/2025 11:50:07 AM PST
- Stock Update:
- 07/03/2025 11:50:07 AM PST
Description
This item is brand-new, factory sealed.

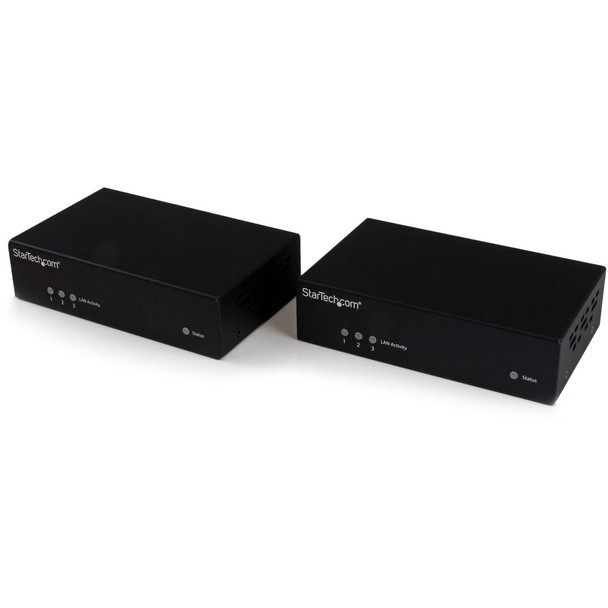

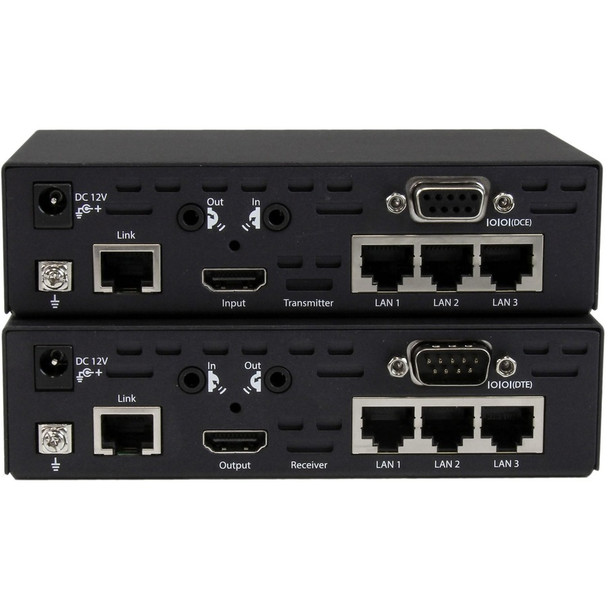

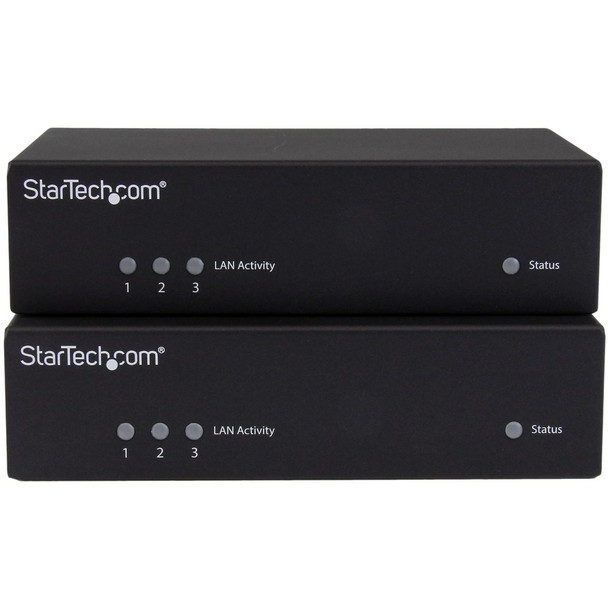

Extend an HDMI signal by up to 330ft (100m) over CAT5/CAT6 cable, with 10/100 network, infrared, serial control, and Power over Cable. The ST121HDBT5 HDMI over CAT5 video extender kit lets you extend HDMI audio/video up to 330 feet (100 meters) over a single Cat5e/6 cable. For added versatility, both the transmitter and receiver can be powered by the same single power source using Power Over Cable (POC).To help save you installation costs, the HDMI over CAT5 extender also extends RS-232 Serial and IR through the same non-proprietary CAT5e / CAT6 Ethernet cable, offering flexible control of local devices from the remote location. The extender also includes a built-in 10/100 network switch with 4 ports on either side, that can extend an IP connection -- perfect for providing remote Internet connections to Smart TVs and gaming consoles.
The HDMI extender kit includes both the local transmitter and remote receiver units, providing a convenient point-to-point digital signage solution right out of the box. To extend your HDMI signal range further, the extender supports HDMI cables up to 5m/16ft long on both the local and remote ends, for an added distance of 32ft.
The ST121HDBT5 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Package Contents:
- 1 x HDMI Extender
- 1 x HDMI Receiver
- 1 x CAT5 Cable
- 1 x Instruction Manual
- 1 x IR Sensor Kit (Transmitter Cable \ Receiver Cable)
- 1 x Power Adapter
- 2 x Foot Pad Set
- 2 x Grounding Wire
- 2 x Mounting Brackets
Features
Package Contents:
Yes
Yes
Taiwan
- 1 x HDMI Extender
- 1 x HDMI Receiver
- 1 x CAT5 Cable
- 1 x Instruction Manual
- 1 x IR Sensor Kit (Transmitter Cable \ Receiver Cable)
- 1 x Power Adapter
- 2 x Foot Pad Set
- 2 x Grounding Wire
- 2 x Mounting Brackets
Certifications & Standards:
- CE
- FCC
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage |
|
| Physical Characteristics | |
| Product Material | Aluminum |
| Form Factor |
|
| Transmitter Weight (Approximate) | 1.89 lb |
| Length | 5.5" |
| Product Color | Black |
| Transmitter Depth | 5.50" |
| Color Family | Black |
| Transmitter Height | 1.50" |
| Transmitter Width | 3.50" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 8 |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Graphics Modes | 4K |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The StarTech.com HDBaseT Extender Kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility, both the transmitter and receiver can be powered from one power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals. What is HDBaseT HDBaseT is a standardized, zero latency, video distribution technology that's revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable. Extend More than Video with HDBaseT The extender offers HDBaseT technology with HDMI, IR, RS232, Ethernet, and power in a single extender kit, for complete end-to-end control. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The IR extension enables you to operate your display and an IR-enabled source device, such as a Blu-ray player or TV Set top box, from either end of your extension. RS232 control let you to connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display for interactive digital signage presentations. While the built-in 6-Port Ethernet hub lets you connect 5 IP devices to your network (3 remote, 2 local). Astonishing Picture Quality at 295 Feet Away With the A/V industry adopting 4K as its new high-resolution standard, long-range video distribution can be difficult, especially considering the 4K distance limitations on standard HDMI cables. You'll be amazed at how this HDBase-T extender kit can deliveryour 4K video signal at up to 295 ft. away from your video source. The extender kit is also backward compatible with 1080p at 330 feet (100 m), so you can comfortably use it to make any video source look great. Hassle-free, Professional Installation with a Single Cable This extender has been specially crafted for a smooth, tidy setup. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Plus, the added benefit of power over cable means you'll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting. The ST121HDBT5 is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support. More from the Manufacturer More from the Manufacturer |
| Product Type | Video Extender Transmitter/Receiver |
| Product Name | Video Console/Extender |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ST121HDBT5 |
| Packaged Quantity | 1 Kit |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6 |
| Media Type Supported | Twisted Pair |
| Technical Information | |
| Maximum Operating Distance | 330 ft |
| Number of Input Devices Supported | 1 |
| Daisy Chain | No |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
