Startech
StarTech M.2 to U.3 Adapter 1M25U3M2ADAPTER
- SKU:
- 20457886
- MPN:
- 1m25-u3-m2-adapter
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, SC, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/30/2026 06:27:50 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $47.00 each 47 |
| Buy 3 | and pay only $43.40 each 43.4 |
| Buy 4 | and pay only $42.21 each 42.21 |
| Buy 5 or above | and pay only $41.47 each 41.47 |
- Stock Update:
- 03/30/2026 06:27:50 PM PST
Description
This item is brand-new, factory sealed.

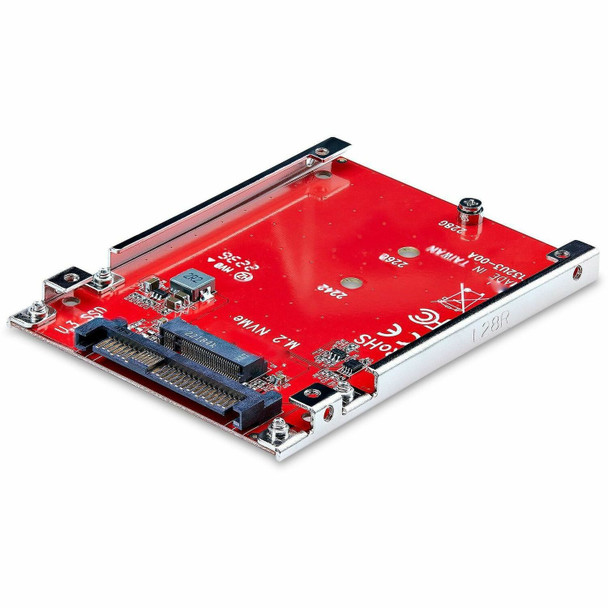

Convert and connect a PCIe M.2 NVMe/AHCI SSD to a 2.5inch form factor to install in a U.3 drive bay or backplane.
Adapt While Retaining Performance
Change the form factor of a 2242, 2260, or 2280 M.2 NVMe drive while maintaining PCIe Gen 4 read and write speeds. This adapter has been designed with no chipset to maintain performance when adapting an M.2 drive to a 2.5-inch form factor.
Hassle-Free Setup
The M.2 to U.3 Host Adapter is compatible with all operating systems, including Windows, macOS, and Linux. No additional drivers or software for installation and operation. The adapter includes M.2 drive and U.3 adapter mounting hardware.
Compatibility
The M.2 to U.3 Host Adapter is backward compatible with earlier versions of M.2 PCIe NVMe drives. It is not compatible with SATA or SAS host controllers, M.2 SATA SSDs, or U.2 host interfaces.
Applications
- Connect an M.2 NVMe SSD to a computer or server through an available U.3 (SFF-TA-1001) connection to increase data storage capacity
- Enhance productivity for data-intensive applications, making it ideal for developers and content creators
Features
Yes
Additional Information:
Connector(s)
Drive Connectors
- 1 - M.2 (NVMe, M-Key, PCIe x4)
Host Connectors
- 1 - U.3 (PCIe, NVMe, SFF-TA-1001)
Environmental
Operating Temperature
- 0°C to 50°C (32°F to 122°F)
Storage Temperature
- -40°C to 85°C (-40°F to 185°F)
Humidity
- 15% - 90% RH
Hardware
Fan(s)
- No
Interface
- U.3 (PCIe, NVMe, SFF-TA-1001)
Bus Type
- PCI Express
Number of Drives
- 1
Compatible Drive Types
- M.2 (PCIe, NVMe, M-Key, NGFF)
Supported Drive Height(s)
- 2242
- 2260
- 2280
Performance
S.M.A.R.T. Support
- Yes
Hardware Raid Supported
- No
Insertion Rating
- 60 Cycles
MTBF
- 12,368,734 Hours
Power
Output Voltage
- 3.3V DC
Output Current
- 5A
Software
OS Compatibility
- No Drivers or Software Required
Environmentally Friendly:
Yes
Compatibility:
M.2 NVMe SSDs
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Weight (Approximate) | 1.31 oz |
| Length | 3.9" |
| Product Color | Red |
| Height | 0.3" |
| Width | 2.8" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | Convert and connect a PCIe M.2 NVMe/AHCI SSD to a 2.5inch form factor to install in a U.3 drive bay or backplane. Adapt While Retaining Performance Change the form factor of a 2242, 2260, or 2280 M.2 NVMe drive while maintaining PCIe Gen 4 read and write speeds. This adapter has been designed with no chipset to maintain performance when adapting an M.2 drive to a 2.5-inch form factor. Hassle-Free Setup The M.2 to U.3 Host Adapter is compatible with all operating systems, including Windows, macOS, and Linux. No additional drivers or software for installation and operation. The adapter includes M.2 drive and U.3 adapter mounting hardware. Compatibility The M.2 to U.3 Host Adapter is backward compatible with earlier versions of M.2 PCIe NVMe drives. It is not compatible with SATA or SAS host controllers, M.2 SATA SSDs, or U.2 host interfaces. Applications Connect an M.2 NVMe SSD to a computer or server through an available U.3 (SFF-TA-1001) connection to increase data storage capacity Enhance productivity for data-intensive applications, making it ideal for developers and content creators |
| Product Type | M.2 to U.3 Adapter |
| Product Name | M.2 to U.3 Adapter |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 1M25-U3-M2-ADAPTER |
| Packaged Quantity | 1 |
