StarTech 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext (PEXESAT322I)
- SKU:
- 18060406
- MPN:
- pexesat322i
- Availability:
- Usually ships the same or next business day. In stock at our CA, IN, MS, NJ, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/02/2026 02:40:27 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $53.73 each 53.73 |
| Buy 3 | and pay only $50.34 each 50.34 |
| Buy 4 - 9 | and pay only $49.36 each 49.36 |
| Buy 10 or above | and pay only $47.64 each 47.64 |
- Stock Update:
- 02/02/2026 02:40:27 AM PST
Description
This item is brand-new, factory sealed.

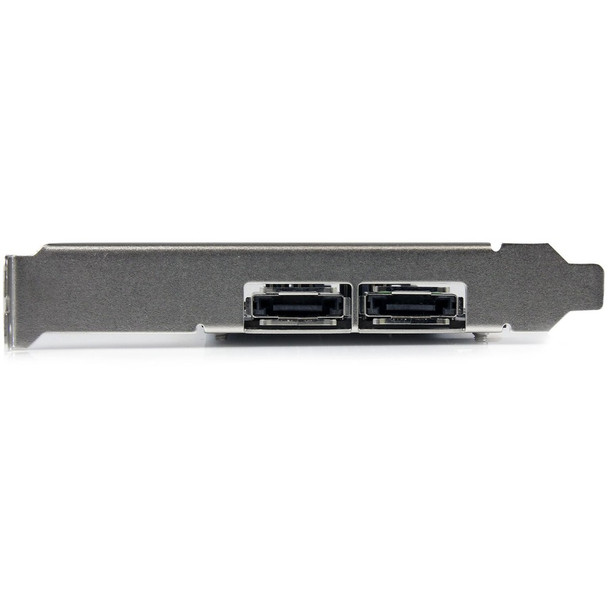

Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot.

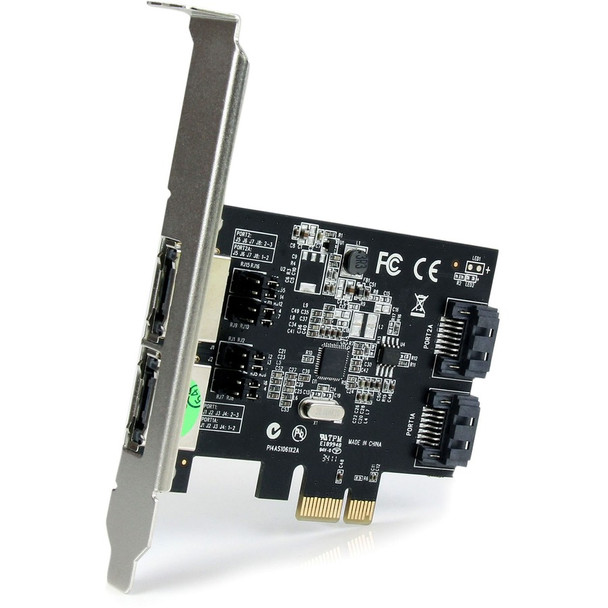

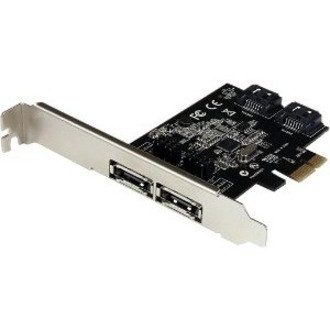

The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.
Package Contents:
- PCIe SATA Controller
- Low Profile Bracket
- Driver CD
- Instruction Manual
Features
- PCIe SATA Controller
- SATA Cable
- Low Profile Bracket
- Driver CD
- Instruction Manual
Environmental Certification:
RoHS
Environmentally Friendly:
Yes
Platform Supported:
PC
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Weight (Approximate) | 1.70 oz |
| Length | 4.8" |
| Height | 0.8" |
| Width | 3.6" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Number of SATA Ports (Internal) | 2 |
| Total Number of SATA Ports | 4 |
| Number of SATA Ports (External) | 2 |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed. The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required. The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray). The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer |
| Product Type | SATA Controller |
| Product Name | PCIe SATA Controller |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEXESAT322I |
| Packaged Quantity | 1 Each |
| Technical Information | |
| Host Interface | PCI Express x1 |
| Controller Type | Serial ATA/600 |
