Startech
Startech Quad M.2 Pcie Adapter Card QUADM2PCIECARDB
(No reviews yet)
Write a Review
- SKU:
- 19170996
- MPN:
- quad-m2-pcie-card-b
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, PA, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/28/2026 06:36:24 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $156.70 each 156.7 |
| Buy 3 | and pay only $154.21 each 154.21 |
| Buy 4 or above | and pay only $149.21 each 149.21 |
- Stock Update:
- 03/28/2026 06:36:24 PM PST
Description
This item is brand-new, factory sealed.

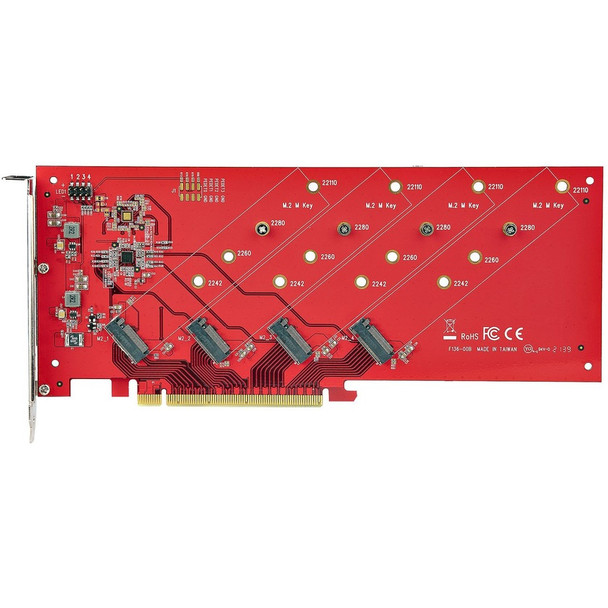

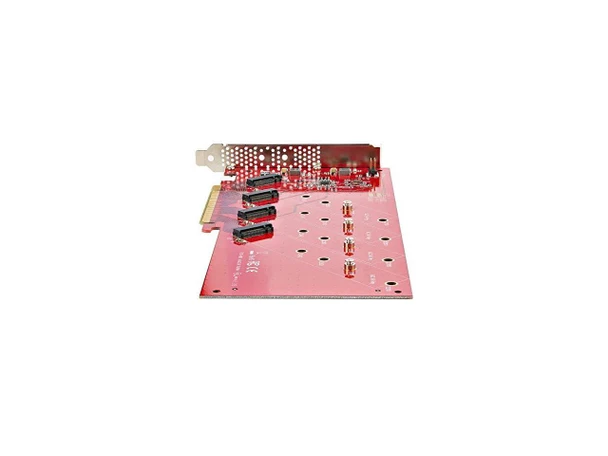

StarTech.com Quad M.2 PCIe Adapter Card, PCIe x16 to Quad NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required, Windows/Linux Compatible (QUAD-M2-PCIE-CARD-B)- HIGH PERFORMANCE: Install 4x PCIe M.2 SSDs (NVMe or AHCI) into a computer or server through an available x16 PCI Express 4.0 slot for ultra-fast data access, capable of reaching high performance read and write speeds up to 7.8GBps per drive
- WIDE COMPATIBILITY: This Quad M.2 PCIe Adapter card was extensively tested to ensure compatibility with Samsung 980 Pro, 970 EVO, 950 EVO, SM951, and other 2242/2260/2280/22110mm PCIe M-Key M.2 SSDs | Not compatible with SATA based M.2 drives
- BACKWARDS COMPATIBILITY: Compatible with PCIe 3.0 motherboards with PCIe bifurcation and an available x16 PCIe slot | PCIe bifurcation is required | This M.2 Adapter works with most workstation and server OS's such as Windows, Windows Server, and Linux
- SOFTWARE RAID FUNCTIONALITY: The M.2 PCI Express adapter enables access to the M.2 PCIe SSDs individually | With OS or 3rd party RAID software, build an array to add redundancy, more capacity, or performance through RAID 0, RAID 1, RAID 5, RAID 10 or JBOD
- VENTED BRACKETS: This PCIe M.2 NVMe Adapter Card comes with a pre-installed full profile bracket | The vented bracket allows for better air flow which helps maintain optimal and reliable performance while helping to avoid drive throttling
- Brand: StarTech
- Series: QUAD-M2-PCIE-CARD-B
- Item model number: QUAD-M2-PCIE-CARD-B
- Operating System: Linux,Windows
- Item Weight: 5.3 ounces
- Product Dimensions: 6.7 x 11.4 x 1.2 inches
- Item Dimensions LxWxH: 6.7 x 11.4 x 1.2 inches
- Color: Red
- Manufacturer: STARTECH.COM
QUAD M.2 PCIE ADAPTER CARD ENABLES INSTALLATION OF 4X PCIE M.2 SSDS (NVME/AHCI)
Package Contents:
- PCI Express x16 to Quad M.2 PCIe SSD Adapter with Bifurcation
- 1 x Quick-Start Guide
- 1 x Set of Mounting Screws
Features
Package Contents:
Yes
Waste Electrical and Electronic Equipment Directive (WEEE)
Taiwan
- PCI Express x16 to Quad M.2 PCIe SSD Adapter with Bifurcation
- 1 x Quick-Start Guide
- 1 x Set of Mounting Screws
Certifications & Standards:
- CE
- FCC
Additional Information:
Hardware
- Interface: M.2 PCIe
- Bus Type: PCI Express
- Number of Drives: 4
- Drive Size: 22 mm - M.2 NVMe
- Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF)
- Drive Installation: Fixed
- SupportedDriveHeight(s):
- 2242
2260
2280
22110
Performance
- Type and Rate: PCI Express 4.0 (16 Gbps)
- Hardware Raid Supported: No
- Hot Swap Capability: No
- MTBF: 4,353,192 hrs
Connector(s)
- DriveConnectors: 4 - M.2 (NVMe, M-Key, PCIe x4)
- HostConnectors: 1 - PCI Express x16
Software
OS Compatibility: No Drivers or Software Required
Environmentally Friendly:
Yes
Compatibility:
Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF)
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Product Color | Red |
| Color Family | Red |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | This Quad M.2 PCIe SSD Adapter adds up to four high performance PCIe M.2 SSDs (NVMe and AHCI) using the PCIe x16 slot of a desktop, workstation, or server. Boost System Performance Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive. Access Four M.2 PCIe SSDs Simultaneously No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x16 PCIe slot that supports PCIe bifurcation. Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance. Wide Compatibility The PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M2. Adapter Card does not require any software or drivers, meaning it works with most operating systems - if the computer/motherboard supports bifurcation. Vented Brackets The pre-installed full-profile vented bracket increases air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures. The QUAD-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance More from the Manufacturer More from the Manufacturer |
| Product Type | M.2 to PCI Express Adapter |
| Product Name | PCI Express x16 to Quad M.2 PCIe SSD Adapter with Bifurcation |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | QUAD-M2-PCIE-CARD-B |
| Packaged Quantity | 1 |
