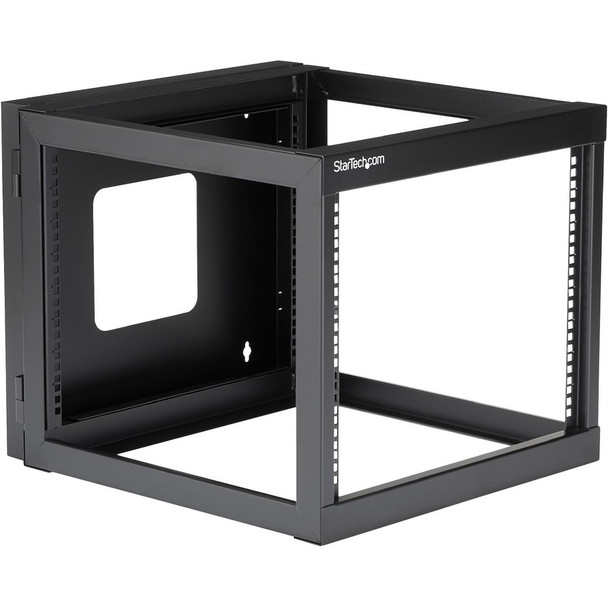

StarTech 8U 22in Depth Hinged Open Frame Wallmount Server Rack (RK819WALLOH)
- SKU:
- 18146357
- MPN:
- rk819walloh
- Availability:
- Usually ships the same or next business day. In stock at our CA, IN, MS, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/14/2026 12:12:22 AM PST
- Stock Update:
- 02/14/2026 12:12:22 AM PST
Description
This item is brand-new, factory sealed.

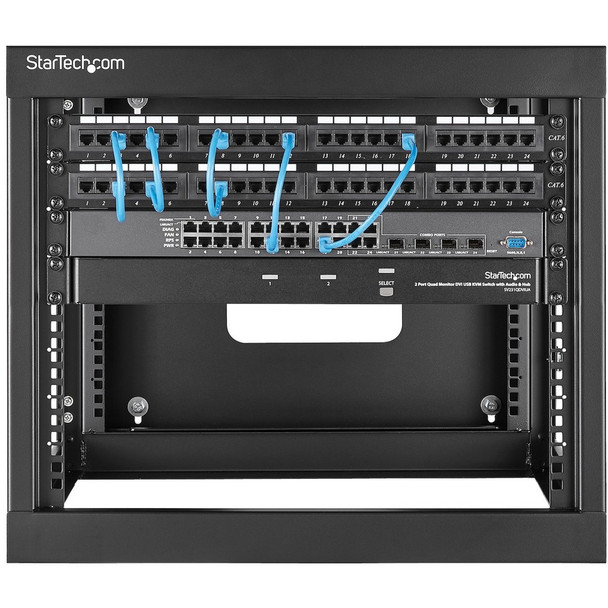

Wall-mount your server or networking equipment with a hinged rack design for easy access and maintenance. The RK819WALLOH 8U 22in Depth Hinged Open Frame Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or network equipment and features a hinged rack design that allows the entire frame to swing open for easy installation and maintenance of your equipment.
The 8U wallmount rack offers a 4 post design for additional support of your equipment, storing a maximum weight capacity of 63 kg (140 lbs). Constructed of high-quality SPCC cold-rolled steel for strength and durability, the open frame wallmount server rack allows for maximum airflow, and ships complete with all of the rack screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.
Backed by a StarTech.com Lifetime warranty.
Package Contents:
- 8U 22in Depth Hinged Open Frame Wall Mount Server Rack
- 32 x #10-32 UNF Panel Screws
- 32 x #10-32 UNF Cage Nuts
- 1 x Instruction Manual
Features
Yes
EU RoHS Declaration URL:
https://media.startech.com/cms/pdfs/rk819walloh_rohs.pdf
Package Contents:
- 8U 22in Depth Hinged Open Frame Wall Mount Server Rack
- 32 x #10-32 UNF Panel Screws
- 32 x #10-32 UNF Cage Nuts
- 1 x Instruction Manual
TAA Compliant:
Yes
Environmental Certification:
EU RoHS
Additional Information:
- Fan(s): No
- Frame Type: Open Frame
- Front Door Type: Open
- Key Lock: No
- Hinged design swings open for simple installation and maintenance of equipment
- Unit is shipped with all the hardware necessary to install components into the rack
- Open-frame rack design allows for maximum airflow, helping to keep your equipment operating temperatures cooler for smoother operation and longer lifespan
- Hinged design for easy access to rear panels
- 4 Post design for added stability
- Open frame design provides additional airflow
- Perfect for installing network switches out of the way and high up on a wall in a branch office, warehouse, or superstore location
- Ideal for small and medium businesses requiring small rack solutions dispersed throughout the organization
- Mount Audio/Video broadcast or distribution components
Industry Standards:
- EIA RS310-D
- CE
- cUL
REACH Declaration URL:
https://media.startech.com/cms/pdfs/rk819walloh_rohs.pdf
Environmentally Friendly:
Yes
REACH free of SVHC:
Yes
Assembly Required:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Product Material | Cold-rolled Steel (CRS) |
| Form Factor | Wall Mountable |
| Weight (Approximate) | 33.30 lb |
| Rack Width | 19" |
| Product Color | Black |
| Maximum Weight Capacity | 139.70 lb |
| Height | 19.2" |
| Color Family | Black |
| Width | 23.8" |
| Depth | 21.9" |
| Rack Height | 8U |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The RK819WALLOH 8U Hinged Open Frame Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or network equipment and features a hinged rack design that allows the entire frame to swing open for easy installation and maintenance of your equipment. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases. The 8U wallmount rack offers a 4 post design for additional support of your equipment, storing a maximum weight capacity of 63 kg (139 lbs) with a maximum mounting depth of 19.8inch. Constructed of high-quality SPCC cold-rolled steel for strength and durability, the open frame wallmount server rack allows for maximum airflow, and ships complete with all of the rack screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately. ~ More from the Manufacturer More from the Manufacturer |
| Product Type | Rack Frame |
| Product Name | 8U 22in Depth Hinged Open Frame Wall Mount Server Rack |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | RK819WALLOH |
| Packaged Quantity | 1 Each |
| Technical Information | |
| Rack Type | Open Frame |
| Application/Usage |
|
| Rack Post Quantity | 4 |
