StarTech 1m [3.3ft] LC to LC [UPC] OS2 Single Mode Simplex Fiber Optic Cable SPSMLCLCOS21M
- SKU:
- 20799798
- MPN:
- spsmlclc-os2-1m
- Availability:
- Usually ships the same or next business day. In stock at our CA, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/02/2026 04:17:03 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $26.56 each 26.56 |
| Buy 3 | and pay only $24.20 each 24.2 |
| Buy 4 | and pay only $23.17 each 23.17 |
| Buy 5 or above | and pay only $22.55 each 22.55 |
- Stock Update:
- 04/02/2026 04:17:03 AM PST
Description
This item is brand-new, factory sealed.

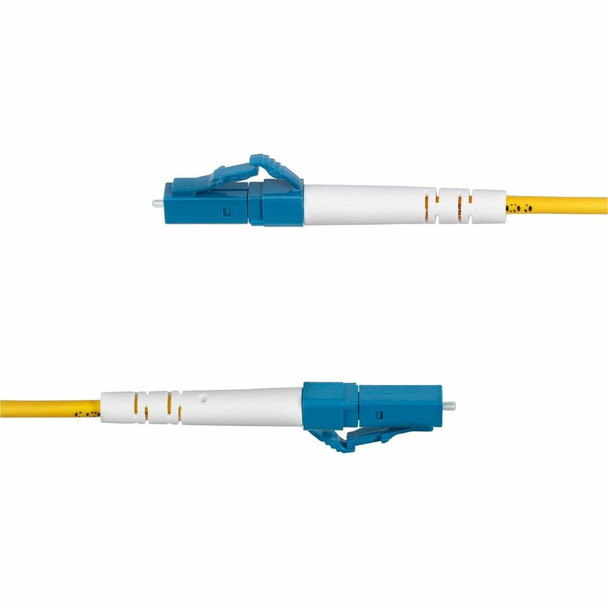

StarTech.com 1m (3.3ft) LC to LC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125, 40G/100G, LSZH Fiber Jumper Cord- SIMPLEX OS2 CABLE: Single Mode Simplex OS2 Fiber Cable is immune to EMI and optimized for 40G/100Gbps networks; Supports bi-directional (BiDi) transmission over a single fiber; Ideal for space-constrained installations requiring minimal fiber count
- QUALITY CONSTRUCTION: LC/LC-UPC ends for improved return loss over PC polish; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 10mm
- SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 0.35dB/km outperforms industry standards
- COMPATIBILITY: Simplex Single Mode Fiber Patch Cord supports 40G/100G networks; Backward compatible with OS1; High micro-bend resistance facilitates tight bends in complex installations; Ideal for point-to-point setups or single-fiber NICs and SFPs
- SPECS: 1 meter (3.3 foot); OS2 Single Mode; LC/LC (UPC) Simplex; 100Gbps; 9/125m; 1260-1625nm Laser Optimized; Insertion Loss: ?0.3dB; Return Loss: ?55dB; Cable OD: 2mm; Bend Radius: 10mm (0.39in) loaded/unloaded
- Brand: StarTech.com
- Connector Type: Lc Simplex
- Cable Type: Fiber Optic
- Compatible Devices: Server
- Special Feature: Data Transfer
- Color: Yellow
- Connector Gender: Male-to-Male
- Shape: Round
- Item Weight: 0.01 Pounds
- Connectivity Technology: Fiber Optic
- Model Name: SPSMLCLC-OS2-1M
- Indoor/Outdoor Usage: Outdoor, Indoor
- Number of Items: 1
- Manufacturer: StarTech.com
- UPC: 065030906647
- Package Dimensions: 8.7 x 7.9 x 0.01 inches
- Item Weight: 0.16 ounces
OS2 LC/LC Single Mode Simplex Fiber Optic Patch cable facilitates reliable connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, enhancing signal quality and performance capacity over OS1 cables. The bend-insensitive fiber and molded strain reliefs support cable runs requiring micro/macro bends while maintaining low attenuation. The OS2 patch cable is ideal for 1260-1625nm laser-optimized sources.?Backward?compatible with 9/125 fiber equipment, ensuring a reliable connection with legacy?LANs. Housed in a Low-Smoke Zero-Halogen (LSZH) flame retardant jacket, this SM Simplex fiber optic cable?ensures?minimal smoke, toxicity, and corrosion when exposed to extreme sources of heat?or in?the event of a fire.?Capable of operating in a wide range of environments, including industrial settings, central offices, and schools, as well as residential settings where building codes are a consideration. Each OS2 fiber cable is also individually tested for for insertion loss and attenuation that meets or exceeds the ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards, for guaranteed compatibility and 100% reliability. This OS2 Fiber Patch Cable is backed for life, including free lifetime multi-lingual technical assistance.
Features
Yes
WEEE Statement:
https://media.startech.com/cms/pdfs/spsmlclc-os2-1m_weee.pdf
EU RoHS Declaration URL:
https://media.startech.com/cms/pdfs/spsmlclc-os2-1m_rohs.pdf
Environmental Certification:
EU RoHS
Environmentally Friendly:
Yes
REACH Declaration URL:
https://media.startech.com/cms/pdfs/spsmlclc-os2-1m_rohs.pdf
REACH free of SVHC:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Physical Characteristics | |
| Product Material | Polypropylene |
| Product Color | Yellow |
| Jacket Material | Low Smoke Zero Halogen |
| Color Family | Yellow |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | OS2 LC to LC Single Mode Simplex Fiber Optic Patch cable facilitates connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances. Compatibility Connect to single-fiber networking devices including simplex patch panels, SFP transceivers, and fiber NICs. This 9/125µm OS2 simplex single mode fiber patch cord is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments. Engineered for Optimal Performance Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to LC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards. LSZH Cable Jacket Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered. Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability. |
| Product Type | Network Cable |
| Product Name | Fiber Optic Simplex Patch Network Cable |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SPSMLCLC-OS2-1M |
| Packaged Quantity | 1 |
| Technical Information | |
| Connector Gender on First End | Male |
| Data Transfer Rate | 100 Gbit/s |
| Cable Type | Fiber Optic |
| Connector on First End Details | 1 x LC Network - Male |
| Connector Gender on Second End | Male |
| Fiber Type | Simplex |
| Fiber Category | OS2 |
| Device Supported |
|
| Connector on Second End Details | 1 x LC Network - Male |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Cable Length | 3.28 ft |
| Jacket Type | LSZH |
| Features |
|
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Single-mode |
