StarTech USB VGA KVM Console Extender over CAT5 UTP (500 ft) (SV565UTPU)
(No reviews yet)
Write a Review
- SKU:
- 18269422
- MPN:
- sv565utpu
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, PA, SC, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/02/2026 12:45:13 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $245.98 each 245.98 |
| Buy 3 or above | and pay only $238.79 each 238.79 |
- Stock Update:
- 02/02/2026 12:45:13 PM PST
Description
This item is brand-new, factory sealed.

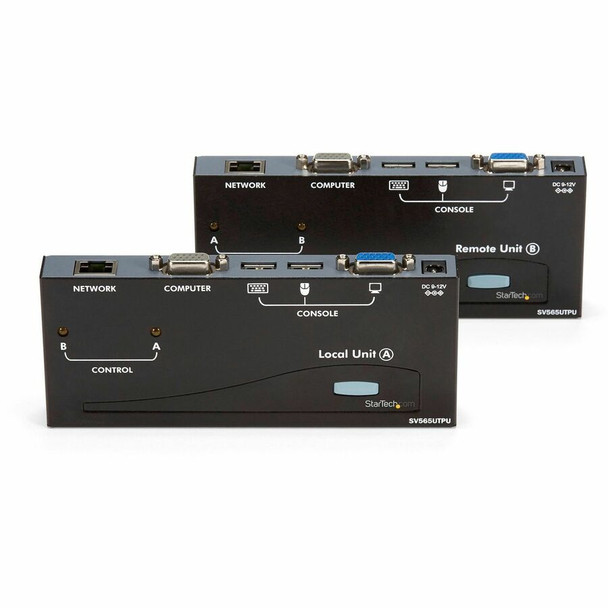

This USB VGA KVM Console Extender lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500ft away.You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.Designed to provide long lasting, reliable operation, the USB VGA Console Extender is backed by StarTech.coms one year warranty.FeaturesCan be used with a single computer or connected to an existing KVM switchEasy installation using industry-standard UTP network cableIntuitive hotkey commandsSupports auto-switching between host and remote users or dedicated controlUSB computers are supported at the host and remote locations (USB keyboard and mouse required for remote console)ApplicationsMonitor computer-controlled equipment in a factory or warehouseUse one or more servers in a server room from a remote locationControl remote machines and security monitoring systemsTechnical SpecificationsWarranty : 1 Year warrantyColor : BlackInput Voltage : 115 ACOutput Current : 600mAPlug Type : MPower Adapter Included : YesPower Adapter - Amperage : 0.6Power Adapter - DC Voltage : 9 (DC)Center Tip Polarity : PositiveFeatures
End of Life Manual Availability:
Yes
https://media.startech.com/cms/pdfs/sv565utpu_weee.pdf
https://media.startech.com/cms/pdfs/sv565utpu_rohs.pdf
USB VGA KVM Console/Extender 2 x 6 ft 2-in-1 USB VGA KVM Cables 8 x Rubber Feet 1 x Power Adapter 1 x Instuction Manual
EU RoHS
Yes
Yes
https://media.startech.com/cms/pdfs/sv565utpu_rohs.pdf
Yes
Taiwan
Yes
WEEE Statement:
https://media.startech.com/cms/pdfs/sv565utpu_weee.pdf
EU RoHS Declaration URL:
https://media.startech.com/cms/pdfs/sv565utpu_rohs.pdf
Package Contents:
Environmental Certification:
EU RoHS
TAA Compliant:
Yes
Environmentally Friendly:
Yes
REACH Declaration URL:
https://media.startech.com/cms/pdfs/sv565utpu_rohs.pdf
REACH free of SVHC:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage Range | 110V AC to 240V AC |
| Input Voltage |
|
| Power Consumption | 5.40 W |
| Physical Characteristics | |
| Form Factor | Desktop |
| Transmitter Weight (Approximate) | 1.32 lb |
| Receiver Width | 6.10" |
| Receiver Height | 0.80" |
| Transmitter Length | 3" |
| Receiver Length | 3" |
| Product Color | Black |
| Receiver Weight (Approximate) | 1.32 lb |
| Color Family | Black |
| Transmitter Height | 0.80" |
| Transmitter Width | 6.10" |
| Warranty | |
| Additional Warranty Information | This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| VGA | Yes |
| Number of USB Ports | 4 |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of VGA Ports | 4 |
| Number of Network (RJ-45) Ports | 2 |
| Video | |
| Maximum Video Resolution | 1024 x 768 |
| Graphic Mode | XGA |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. More from the Manufacturer More from the Manufacturer |
| Product Type | KVM Console/Extender |
| Product Name | USB VGA KVM Console Extender over CAT5 UTP - 500 ft |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SV565UTPU |
| Product Model | SV565UTPU |
| Packaged Quantity | 1 Kit |
| Technical Information | |
| Number of Remote Users Supported | 1 |
| Number of Computers Supported | 2 |
| KVM Technology | Analog |
| Maximum Operating Distance | 500 ft |
| Connectivity Technology | Wired |
| Number of Local Users Supported | 1 |
