StarTech USB 3.0 to HDMI® and DVI Dual Monitor External Video Card Adapter (USB32HDDVII)

This item is brand-new, factory sealed.

The USB32HDDVII USB 3.0 to HDMI and DVI-I Dual Head Adapter turns an available USB 3.0 port into one DVI-I or VGA port (DVI to VGA adapter included) and one HDMI output, with support for high-definition 1080p and 1920x1200 video and 5.1 surround sound audio (from HDMI port only).


The adapter delivers a convenient external video solution that makes it easy to add multi-monitor capability to a USB enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).


Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the USB video adapter functions as a convenient external graphics card that eliminates having to open the computer case for video card installation. The adapter delivers smooth, high definition content to multiple displays and can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop onto a second or third monitor to double or triple your workspace and increase your productivity.


Features:



SuperSpeed USB 3.0 (5 Gbps) Interface, backward compatible with USB 2.0

Supports resolutions up to 1920x1080p (Full HD) and 2048x1152

Quick, easy installation

Dual Head design supports both HDMI and DVI-I simultaneously (DVI to VGA adapter included for VGA monitors)

USB-powered - No external power adapter required

Choose between Mirrored, Extended or Primary display configurations

Driver software supports display rotation

Supports the Windows Aero interface

Supports 5.1 channel surround sound audio (HDMI only)

Supports the use of multiple USB32HDDVII adapters on a single system (up to 3), for up to 6 additional monitorsHardware:
Audio: Yes
Memory: 1GB DDR2
Industry Standards: Standard HDMI, DVI-I, SuperSpeed USB 3.0, USB 2.0
Chipset ID: Display Link DL3900
Output Signal: DVI-I (DVI Digital/Analog) / HDMIConnectors:
Connector A: 1 x USB 3.0 A (9Pin SuperSpeed) Male
Connector B: 1 x DVI-I (29 Pin) Female / 1 x HDMI (19Pin) FemalePerformance:
Maximum Resolutions: 2048 x 1152
Supported Resolutions: Widescreen(16/32 bit): 2048x1152, 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1368x768, 1366x768, 1360x768, 1280x800, 1280x768, 1280x720, 1024x600, 848x480, 800x480, 720X480 / Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x870, 1152x864, 1024x768, 832x624, 800x600, 768X567, 640X480
Wide Screen Supported: Yes
Audio Specifications: 5.1 Channel Surround (48Khz)Software:
OS Compatibility: Windows 8 (32/64 Bit), 7 (32/64 Bit), Vista (32/64), (Aero 3D Interface Supported)Physical Characteristics:
Color: Black
Enclosure Type: Plastic
Cable Length: 6.3in (160mm)Power:
Power Adapter Included: USB PoweredEnvironmental:
Operating Temperature: 0 C to 55 C (32 F to 95 F)
Storage Temperature: -5 C to 40 C (23 F to 104 F)
Humidity: 20 C to 80 C (68 F to 176 F)Requirements:
System and Cable Requirements:
12 USB Displays
Office Application:
CPU: i3 Dual core 2.8GHz
RAM: 2GB or higher
Full HD Video:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)

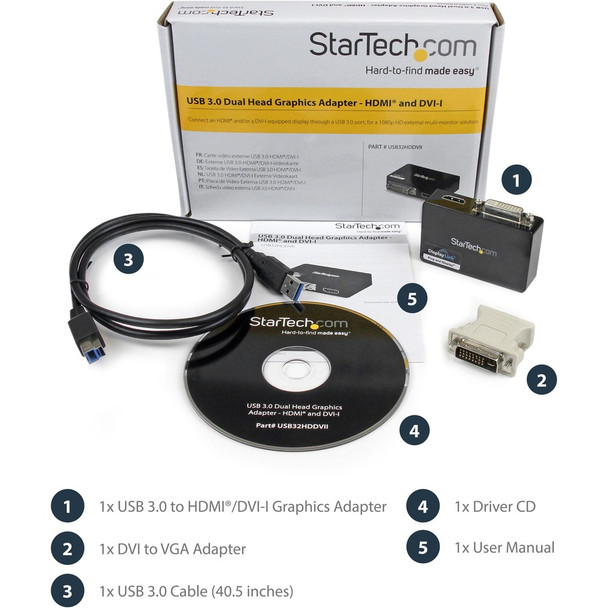

RAM: 4GB or higherPackage Contents:
1 x USB 3.0 to HDMI/DVI-I Graphics Adapter
1 x DVI to VGA Adapter
1 x Mini USB 3.0 Cable
1 x Driver CD
1 x Installation guideItem Dimension (L"xW"xH")
7.83 x 13.39 x 2.05

Weight
0.79 lb

Warranty Information
2 Years
