Startech

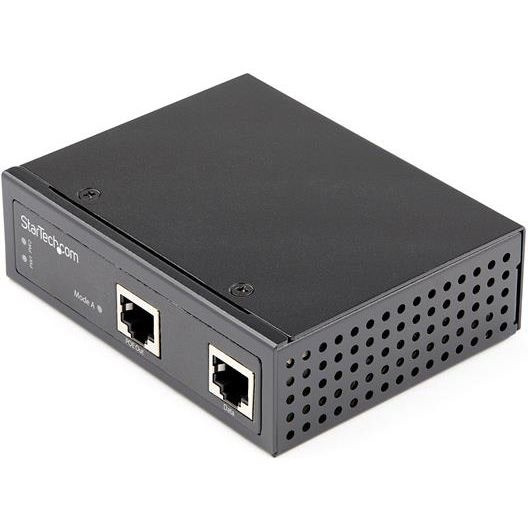

StarTech Industrial Gigabit Ethernet PoE Injector 30W 802.3at PoE+ Midspan 48V-56VDC Power Over Ethernet Injector Adapter -40C to +75C (248814)
- SKU:
- 18213593
- MPN:
- 248814
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 03/25/2026 03:30:34 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $55.12 each 55.12 |
| Buy 3 | and pay only $51.25 each 51.25 |
| Buy 4 or above | and pay only $50.01 each 50.01 |
- Stock Update:
- 03/25/2026 03:30:34 AM PST
Description
This item is brand-new, factory sealed.
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
30 Watt Power BudgetProvides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
- Cameras
- Sensors
- Wi-fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
- Vibration: EN 60068-2-6
- Shock: EN 60068-2-27
- Free-fall: EN 60068-2-32
600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
Dual Power InputsDual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Package Contents:
- POEINJ30W PoE Injector
- Mounting Hardware Kit
- Quick-Start Guide
- Terminal Block to Barrel Power Connector Adapter
- Terminal Block
Features
- POEINJ30W PoE Injector
- Mounting Hardware Kit
- Quick-Start Guide
- Terminal Block to Barrel Power Connector Adapter
- Terminal Block
Certifications & Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
- EN 60068-2-6
- EN 60068-2-32
- MET (UL) 60950-1
- EN60950-1
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage | 56 V DC |
| Physical Characteristics | |
| Form Factor | DIN Rail/Wall Mountable |
| Product Color | Black |
| Color Family | Black |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Output Ports | 1 x PoE+ |
| Input Ports | 1 x Fast Ethernet |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable. 30 Watt Power Budget Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like: Cameras Sensors Wi-fi access points Uses Cat 5e (or higher rated) Ethernet cabling. Designed for Harsh Environments Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-fall: EN 60068-2-32 600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability. Dual Power Inputs Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer |
| Product Type | PoE Injector |
| Product Name | POEINJ30W PoE Injector |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | POEINJ30W |
| Product Model | POEINJ30W |
| Packaged Quantity | 1 Each |
| Technical Information | |
| Protection Type | Overload Protection |
Warranty Information
