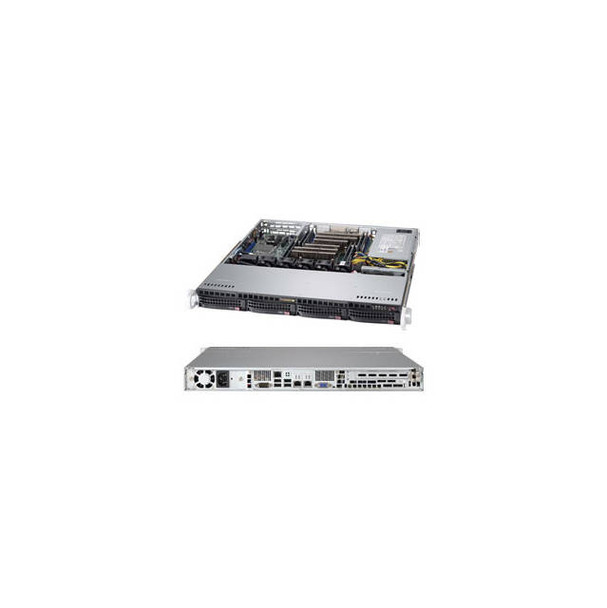

Supermicro SuperChassis CSE-813MFTQC-505CB Copmuter Case - Rack-mountable (CSE813MFTQC505CB)

This item is brand-new, factory sealed.

1. 500W High-efficiency Power Supply Platinum Level (94%+)

2. 4x 3.5" Hot-swap SAS/SATA Drive Bays

3. 1x USB/COM Port tray in Slim DVD bay (Optional)

4. 4x 4cm high performance cooling fans

5. 1x Full-height,Full-length I/O Expansion Slot

6. 1U Short-Depth Rackmount Chassis
Form Factor
1U chassis for motherboard support size 12 inch x 10 inch, 9.6 inch x 9.6 inchProcessor Support
Supports dual, single Intel / AMD processorsExpansion Slots
1 full-height and full-length expansion slot(s)Drive Bays
Internal Bay : 4x 3.5 inch hot-swap SAS/SATA drive bay with SES2Front Panel
Buttons :
Power On/Off button
System Reset Button
LEDs :
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LEDMotherboard(s) for CSE-813MFTQC-505CB
X10DRL-CT
X10DRL-iT
X10DRL-CFans
4x 40x28mm PWM fan, Optional 2x 40x28mm PWM fanOperating Environment (System)
Operating Temperature Range : 5^oC to 35^oC (41^oF to 95^oF)
Non-Operating Temperature Range : -40^oC to 60^oC (-40^oF to 140^oF)
Operating Relative Humidity Range : 8 percent to 90 percent (non-condensing)
Non-Operating Relative Humidity Range : 5 percent to 95 percent (non-condensing)Power Supply
500W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC
AC Input : 100-240V, 50-60Hz, 6.6A max
DC Output : +3.3V: 12A
+5V: 15A
+5V standby: 3A
+12V: 41A
-12V: 0.2ARegulatory (Power Supply)
Power Supply Safety / EMC : USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 50950/IEC 50950-CompliantItem Dimension (L inchxW inchxH inch)
N/A

Weight
34.00lb

Warranty Information
1 Year
