Description

This item is brand-new, factory sealed.

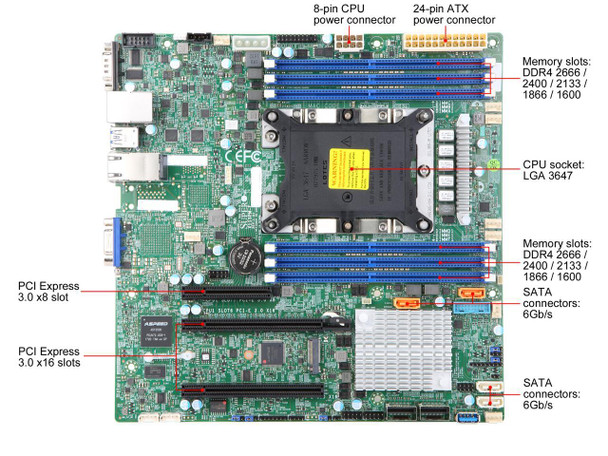

1.Intel Xeon Processor Scalable Family, Single Socket P (LGA 3647) supported, CPU TDP support 165W
2.Intel C621 Chipset
3.Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz 6x DIMM slots
4.Expansion slots: 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (in x8)
5.2 GbE LAN ports
6.12 SATA3 (6Gbps) via C621
7.Supports 12V DC power input
8.4-pin Internal power connector
9.5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
10.I/O: 1 VGA, 2 COM, TPM headerForm Factor
microATXCPU
Intel Xeon Processor Scalable Family.
Single Socket P (LGA 3647) supported, CPU TDP support 165WCores / Cache
Up to 28 coresMemory Capacity
6x 288-pin DDR4 DIMM slots
Up to 768GB ECC 3DS LRDIMM
Up to 384GB ECC LRDIMM
Up to 192GB ECC RDIMMMemory Type
2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMMDIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 64GB, 128GBMemory Voltage
1.2VError Detection
Corrects single-bit errorsChipset
Intel C621SATA
Intel C621 controller for 12 SATA3 (6 Gbps) ports RAID 0,1,5,10IPMI
ASPEED AST2500Network Controllers
Dual LAN with 1GbE with Marvell 88E1512Graphics
Aspeed AST2500 BMCUSB
6 USB 2.0 ports (2 rear + 4 via header(s)),
5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A)Video Output
1 VGA port(s)Serial Port / Header
2 COM Ports (1 rear, 1 header(s))TPM
TPM HeaderPCI-E
2 PCI-E 3.0 x16,
1 PCI-E 3.0 x8M.2
Interface: PCIe 3.0 x4
Form Factor: 2242, 2280BIOS Type
AMI UEFI

Features

Compatibility:

Chassis:

SC813MFTQC-350CB2
SC813MFTQC-R407CB
SC113MFAC2-341CB
SC113MFAC2-R606CB
SC512F-350B
SC823TQ-653LPB
SC213LT-600LPB
SC825TQC-R740LPB
SC833T-653B

SuperServer:

SYS-5019P-M

Specs

Physical Characteristics

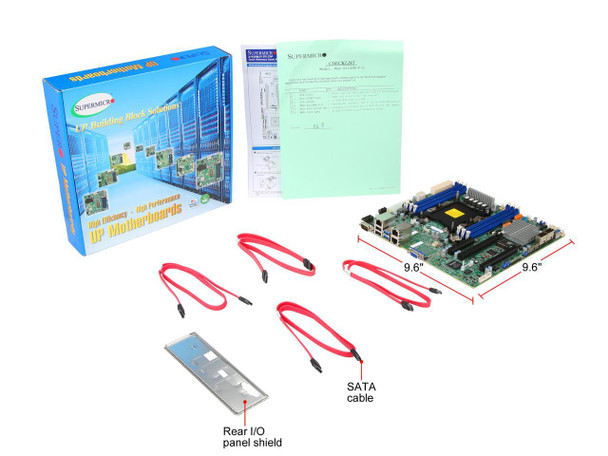

Form Factor	Micro ATX
Width	9.6"
Depth	9.6"
I/O Expansions
Total Number of Expansion Slots	3
Number of PCI Express x8 Slots	1
Number of PCI Express x16 Slots	2
Total Number of PCI Express Slots	3
Memory
Memory Technology	DDR4 SDRAM
Number of Memory Slots	6
Memory Speed Supported	2666 MHz 2400 MHz 2133 MHz 1866 MHz 1600 MHz
Memory Form Factor	RDIMM DIMM LRDIMM
Maximum Memory Supported	768 GB
General Information
Brand Name	Supermicro
Package Type	Retail
Manufacturer Website Address	http://www.supermicro.com
Marketing Information	UP Xeon® Motherboards - Socket P (LGA 3647) BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647) Supermicro's new generation X11 UP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 1TB DDR4 2666MHz in 8 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 1GbE/10GBase-T/10G SFP+ networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN.
Product Type	Server Motherboard
Product Name	X11SPM-F Server Motherboard
Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	MBD-X11SPM-F-O
Product Model	X11SPM-F
Packaged Quantity	1
Processor & Chipset
Chipset Manufacturer	Intel
Processor Supported	Xeon
Total Processor Supported	1
Processor Socket	Socket P LGA-3647
Chipset Model	C621
Onboard Interfaces
Number of SATA Interfaces	12
Total Number of Onboard USB Ports	7
Number of M.2 Interfaces	1
Number of Onboard USB 3.0 Ports	3
Interfaces/Ports
VGA	Yes
Total Number of USB Ports	4
Number of USB 3.0 Ports	2
I/O Controller
RAID Supported	Yes
Controller Type	Serial ATA/600
RAID Levels	10 5 1 0
Video
Onboard Video	On-board Video Chipset
Graphics Controller Model	AST2500
Network & Communication
Gigabit Ethernet	Yes
Audio
Audio Channels	7.1
