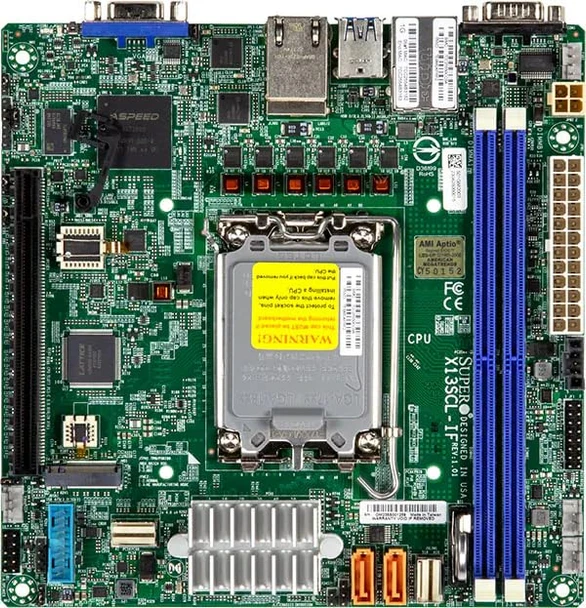

Supermicro MBDX13SCLIFO Mini-ITX Server Motherboard LGA1700 Intel C262 DDR5 up to 64GB

This item is brand-new, factory sealed.

Key Features

Intel Xeon 6300-series/E-2400 Series Processor, Pentium* Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP

(*BIOS 2.0 or above is required to support Intel Xeon 6300-series processor)

Intel C262 controller for 6 SATA3 (6 Gbps) ports ; RAID 0,1,5,10

Up to 64GB ECC Unbuffered DIMM, DDR5-4800MHz, in 2 DIMM slots

1 PCIe 5.0 x16 2 SlimSAS (2 PCIe 4.0x4 or 1 PCIe 4.0x4 & 4 SATA)

Dual LAN with Intel i210 Gigabit Ethernet Controller

M.2 Interface: 1 PCIe 4.0 x4 M.2 Form Factor: 2280 M.2 Key: M-Key

4 USB 3.2 Gen1 ports (2 rear + 2 via header) 2 USB 2.0 ports (2 rear)Physical Stats
Form Factor
Mini-ITX
Dimension
6.7" x 6.7" (17.02cm x 17.02cm)Processor
CPU
Single Socket V0 (LGA-1700)
Intel Xeon 6300-series/ E-2400/Pentium^Note Processor
Note: BIOS 2.0 or above is required to support Intel Xeon 6300-series processor
Core Count
Up to 8C
Note
Supports up to 95W TDP CPUsSystem Memory
Memory
Slot Count: 2 DIMM Slots
Max Memory (1DPC): Up to 64GB 4800MT/s ECC DDR5 UDIMM
DIMM Sizes
UDIMM:8GB, 16GB, 32GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)On-Board Devices
Chipset
Intel C262
SATA
6 SATA (6Gbps) via Intel C262, RAID 0/1/5/10 support
IPMI
ASPEED AST2600 BMC
Network Controller
Dual LAN with 1GbE with Intel I210Input / Output
LAN
1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
2 USB 2.0 port(s) (rear)
2 USB 3.2 Gen1 port(s) (Header)
2 USB 3.2 Gen1 port(s) (Rear)
Video
1 Aspeed AST2600 BMC port(s)
1 VGA D-Sub Connector port(s)
Serial
1 COM port(s) (rear)
TPM
1 TPM 2.0 HeaderExpansion Slots
PCI-Express (PCIe) Configuration
1 PCIe 5.0 x16 slot
1 PCIe 4.0 x4 slot
M2
1 M.2 PCIe 4.0 x4 slot (M-key 2280)System BIOS
BIOS Type
AMI 32MB UEFI
BIOS Features
Plug and Play (PnP)
ACPI 6.4
PCI FW 3.3
SMBIOS 3.5
UEFI 2.8Management
Software
SuperCloud Composer
(https://www.supermicro.com/en/solutions/management-software/supercloud-composer)
Supermicro Server Manager (SSM)
(https://www.supermicro.com/en/solutions/management-software/supermicro-server-manager)
Supermicro Power Manager (SPM)
(https://www.supermicro.com/en/solutions/management-software/supermicro-power-manager)
Supermicro Update Manager (SUM)
(https://www.supermicro.com/en/solutions/management-software/supermicro-update-manager)
Supermicro SuperDoctor 5 (SD5)
(https://www.supermicro.com/en/solutions/management-software/superdoctor)
Super Diagnostics Offline (SDO)
(https://www.supermicro.com/en/solutions/management-software/super-diagnostics-offline)
Supermicro Thin-Agent Service (TAS)
(https://www.supermicro.com/en/solutions/management-software/thin-agent-service)
SuperServer Automation Assistant (SAA) New
(https://www.supermicro.com/en/solutions/management-software/superserver-automation-assistant)
Plug-ins for 3rd Party Software
(https://www.supermicro.com/en/solutions/management-software/plugins)
IPMI Utilities
(https://www.supermicro.com/en/solutions/management-software/ipmi-utilities)
Power Configurations
ACPI Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism
Wake-On-LANSecurity
Hardware
Trusted Platform Module (TPM) 2.0PC Health Monitoring
Voltage
+12V,+3.3V,+3.3V standby,+5V,+5V standby,4 -fan status,Chassis intrusion header,Chipset voltage,Memory Voltages,Monitors CPU voltages,Supports system management utility,System level control,VBAT
LED
CPU/system overheat LED
UID/remote UID LED
Temperature
CPU thermal trip support
Monitoring for CPU and chassis environment
PECI
FAN
4x 4-pin fan headers (up to 4 fans)
4 fans with tachometer monitoring
Fan speed control
Overheat LED indication
Other Features
ACPI power management
Chassis intrusion header
Control of power-on for recovery from AC power loss
M.2 NGFF connector
UID
WOLOperating Environment
Environmental Spec.
Operating Temperature: 0^oC to 50^oC (32^oF to 122^oF )
Non-operating Temperature: -30^oC to 60^oC (-22^oF to 140^oF)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)Weight
3.00 lb

Warranty Information
1 year
