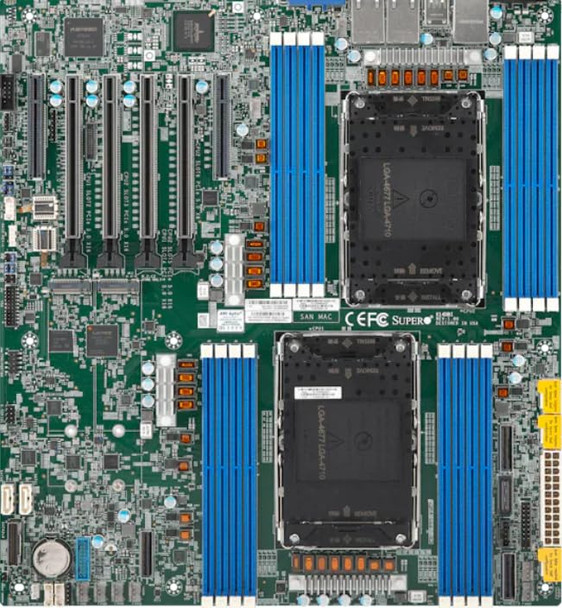

Supermicro MBDX14DBITB E-ATX Server Motherboard Dual LGA-4710 Xeon 6700/6500 DDR5

This item is brand-new, factory sealed.

Key Features
Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores, Dual Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
Total up to 4TB ECC RDIMM DDR5-6400MT/s in 16 DIMM slots
Support CXL 2.0
4 PCIe 5.0 x16
2 PCIe 5.0 x8
3 PCIe 5.0 x8 via MCIO connectors
M.2 Interface: 2 PCIe 5.0 x4M.2 Form Factor: 2280, 22110
Dual LAN with 10GBase-T with Broadcom BCM57416
6 USB 3.2 Gen1 (4 rear and 2 via header)
10 SATA3 ports
Optimized Servers
SYS-622B-TRTProduct SKUs
MBD-X14DBI-TPhysical Stats
Form Factor
E-ATX
Dimension
12.1" x 13.1" (30.73cm x 33.27cm)Processor
CPU
Dual Socket E2 (LGA-4710)
Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores
BIOS 1.2 or above is required to support Intel Xeon 6700/6500-series processors with P-cores
Core Count
Up to 144C
Note
Supports up to 350W TDP CPUsSystem Memory
Memory
Slot Count: 16 DIMM Slots
Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 1TB 8000MT/s ECC DDR5 MRDIMM (P-core only)
DIMM Sizes
MRDIMM (P-core only):32GB, 64GB
RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB
3DS RDIMM:256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)On-Board Devices
IPMI
ASPEED AST2600 BMC
Network Controller
Dual LAN with Broadcom BCM57416 10GBase-TInput / Output
LAN
1 RJ45 GbE Dedicated IPMI LAN port(s)
USB
2 USB 3.1 Gen1 port(s) (Header)
4 USB 3.1 Gen1 port(s) (Rear)
Video
1 VGA D-Sub Connector port(s)
Serial
1 COM port(s) (header)
1 COM port(s) (rear)
TPM
1 TPM header
Others
3 MCIO port(s)Expansion Slots
PCI-Express (PCIe) Configuration
2 PCIe 5.0 x8 slots
4 PCIe 5.0 x16 slots
M2
2 M.2 PCIe 5.0 x4 slots (M-key 2280/22110)Management
Software
SuperCloud Composer
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New
Plug-ins for 3rd Party SoftwareSecurity
Hardware
Trusted Platform Module (TPM) 2.0PC Health Monitoring
Voltage
+12V,+3.3V,+3.3V standby,+5V,+5V standby,CPU temperature,CPU thermal trip support,Memory temperature,Peripheral temperature,Platform Environment Control Interface (PECI)/(TSI),System temperature,VBAT,Veore,Vmem
LED
CPU/system overheat LED
UID/remote UID LED
Temperature
CPU thermal trip support
Monitoring for CPU and chassis environment
PECI
Thermal monitor 2 (TM2) support
FAN
8x 4-pin fan headers (up to 8 fans)
8 fans with tachometer monitoring
Fan speed control
Overheat LED indication
Other Features
ACPI power management
Chassis intrusion detection
Control of power-on for recovery from AC power loss
M.2 NGFF connector
UIDItem Dimension (L"xW"xH")
NA

Weight
3 lbs

Warranty Information
1 year
