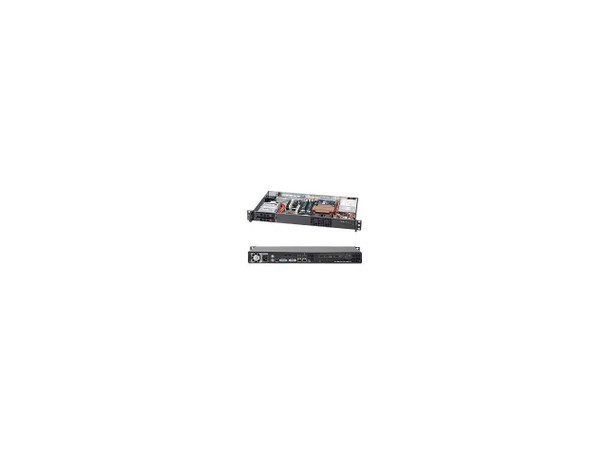

Supermicro SuperChassis SC510T-203B System Cabinet - Rack-mountable - Black (CSE510T203B)

This item is brand-new, factory sealed.

Key Features

1. 200W High-efficiency Power Supply 80 PLUS, Gold Level Certified

2. Low noise level

3. 2x 2.5" hot-swap SAS/SATA HDD Bays

4. 1x Low-profile PCI expansion slot

5. 3x 8500 RPM Cooling Fan

6. Power Switch, Reset Button & 5 LED Indicators

7. Extra Compact Size
Processor Support
Supports Single Intel / AMD ProcessorExpansion Slots
1x low-profile PCI expansion slot (Optional) (Riser Card Required use the full-height I/O bracket on the low-profile add-on card to install)Drive Bays
Hotswap:
- 2x 2.5" SAS / SATA Hot-swap drive trays
- SAS or enterprise SATA HDD only recommendedFront Panel
Buttons:
- Power on/off Button
- System Reset Button
LEDs:
- Power LED
- Hard Drive Activity LED
- 2x Network Activity LEDs
- System Overheat LEDSystem Cooling
FAN:
- 3 x 8500 RPM Cooling FanOperating Environment (System)
Operating Temperature Range:
- 5C - 35C (41F - 95F)
Non-Operating Temperature Range:
- -40 60C (-40 -140 F)
Humidity Range:
- 8 90% Non-Condensing
Non-Operating Humidity Range:
- 5 95% Non-CondensingPower Supply
- 200W Low Noise AC-DC Power Supply with PFC
AC Voltage:
- 100-240V, 50-60 Hz, 2.6 Amp
+5V:
8.0 Amp (Max)
+5V Standby:
- 2.0 Amp (Max)
+12V:
-16 Amp (Max)
-12V:
- 0.5 Amp (Max)
+3.3V:
- 8.0 Amp (Max)
Certifications:
- 80 PLUS GOLD CertifiedRegulatory (Power Supply)
Power Supply Safety / EMC:
- USA - UL listed, FCC
- Canada - CUL listed
- CCC Certification
- EN 60950/IEC 60950-Compliant
- Europe/CE Mark
- Germany - TUV CertifiedForm Factor
11.3"-Depth Mini 1U chassis support for maximum motherboard size - 9.6" x 9.6"Colors
BlackItem Dimension (L"xW"xH")
17.2 x 11.3 x 1.7

Weight
12.00 lb

Warranty Information
1 Year
