Supermicro

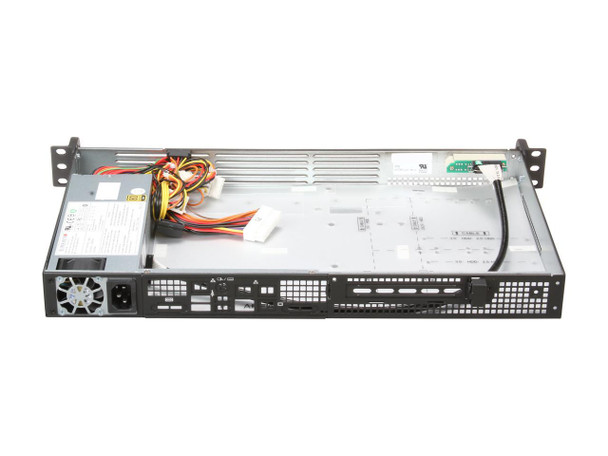

Supermicro Superchassis 504-203b [black] - Rack-mountable - Black - 1u - 1 X Bay - 1 X 200 W - Mini Itx Motherboard Supported - 1 X Internal 3.5" Bay - 1x Slot[s] (128304)
(No reviews yet)
Write a Review
- SKU:
- 18145575
- MPN:
- 128304
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/07/2026 08:39:05 PM PST
- Stock Update:
- 02/07/2026 08:39:05 PM PST
Description
This item is brand-new, factory sealed.
1. Mini 1U Chassis2. 200W High-efficiency Power Supply
80 PLUS, Gold Level Certified
3. Rear I/O Ports
4. 1x 3.5" Internal Drive Bay with 1x
Half-height, Half-length PCI
5.OR 2x 3.5" Internal Drive Bay 6. OR 2x 2.5" Internal Drive Bay with
1x Full-height, Half-length PCI
7.OR 4x 2.5" Internal Drive Bay
8. Power Switch, Reset Button and
5x LED Indicators Form Factor
9.8"-Depth Mini 1U chassis support for maximum motherboard size - 6.7" x 6.7"
Processor Support
Single Processor Support Available Colors
Black
Expansion Slots
Up to 1x full-height, half-length PCI expansions slot
NOTE: Riser Card Required, See Drive Bays for possible configurations Drive Bays
Internal Bay
1x 3.5" Internal Drive Bay with 1x Half-height, Half-length PCI
OR 2x 3.5" Internal Drive Bay
OR 2x 2.5" Internal Drive Bay with 1x Full-height, Half-length PCI
OR 4x 2.5" Internal Drive Bay
Only SAS or enterprise SATA HDD recommended Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
I/O Ports
Standard System I/O
(Mouse, Keyboard, 2x USB Video, COM, LPT, LAN) Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage
100 - 240V, 50-60Hz, 2.6 Amp Max
+5V
8.0 Amp (max.)
+5V standby
2.0 Amp (max.)
+12V
16 Amp (max.)
-12V
0.5 Amp (max.)
+3.3V
8.0 Amp (max.)
Certification
80 PLUS Gold Certified Regulatory (Power Supply)
Power Supply Safety / EMC
USA - UL listed, FCC
Canada - CUL listed
CCC Certification
EN 60950/IEC 60950-Compliant
Europe/CE Mark
Germany - TUV Certified Item Dimension (L"xW"xH"):
25.8 x 18.3 x 6.1
Weight:
17.35 lb
Warranty Information:
1 Year
Package Contents:
- SuperChassis 504-203B (Black)
- 1 x US power cord 18AWG 6ft, PBF (default for low watt)
- 1 x 77.5cm, 16-pin to 16-pin Front Cable
- 1 x Front Panel Control Board
Features
Package Contents:
- SuperChassis 504-203B (Black)
- 1 x US power cord 18AWG 6ft, PBF (default for low watt)
- 1 x 77.5cm, 16-pin to 16-pin Front Cable
- 1 x Front Panel Control Board
Specs
| Power Description | |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Power Supply Wattage | 200 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Product Color | Black |
| Height | 1.7" |
| Color Family | Black |
| Compatible Rack Unit | 1U |
| Width | 17.2" |
| Depth | 9.8" |
| Warranty | |
| Limited Warranty | 3 Year |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Interfaces/Ports | |
| Front USB | Yes |
| Bays | |
| Number of Total Expansion Bays | 1 |
| Number of Internal 3.5" Bays | 1 |
| General Information | |
| Brand Name | Supermicro |
| Manufacturer Website Address | http://www.supermicro.com |
| Product Type | Server Case |
| Product Name | SuperChassis 504-203B (Black) |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | CSE-504-203B |
| Product Line | SuperChassis |
| Technical Information | |
| Motherboard Supported | Mini ITX |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
Supermicro Superchassis 504-203b [black] - Rack-mountable - Black - 1u - 1 X Bay - 1 X 200 W - Mini Itx Motherboard Supported - 1 X Internal 3.5" Bay - 1x Slot[s] (128304)
$188.38
