Supermicro

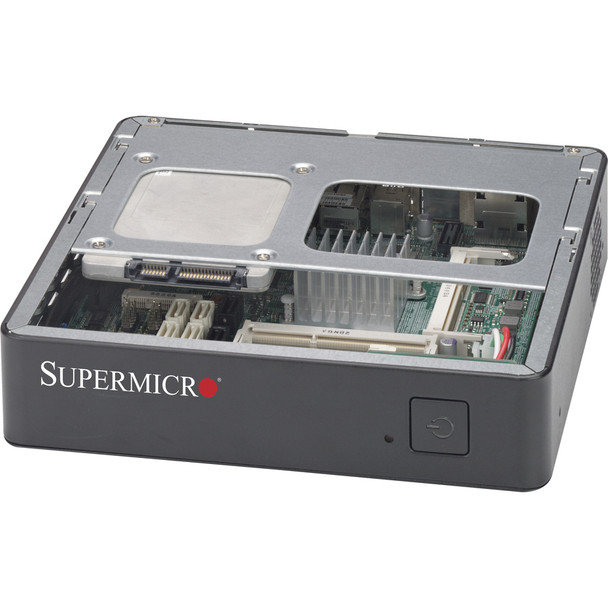

Supermicro SuperServer E200-8B Mini PC Server - 1 x Intel Celeron J1900 Quad-core [4 Core] 2 GHz DDR3 SDRAM - Serial ATA/600 Controller - 0, 1, 10 RAID Levels - 1 x 60 W (sys-e200-8b)
(No reviews yet)
Write a Review
- SKU:
- 18047121
- MPN:
- sys-e200-8b
- Availability:
- Out of stock
- Stock Update:
- 01/02/2026 08:58:19 PM PST
- Stock Update:
- 01/02/2026 08:58:19 PM PST
Description
This item is brand-new, factory sealed.
Specifications
- Mfr Part Number: SYS-E200-8B
- Motherboard: Super X10SBA
- Processor: FCBGA1170
- Intel Celeron J1900 Processor (2.0GHz, 2.42GHz Max Turbo, 2MB Cache, Quad-Core); Supports 10W TDP
- Chipset: Intel J1900 System on Chip
- Memory: 2x 204pin DDR3-1333/ 1066 SODIMM Slots, Supports up to 8GB Non ECC Memory
- Slots: 1x Mini PCI-Express Slot, 1x mSATA Slot
- SATA: 4x SATA3 Ports, Support RAID 0, 1, 10; 2x SATA2 Ports
- Graphics: Intel HD Graphics
- LAN: Dual Intel I210-AT Gigabit Ethernet Controllers
- Drive Bays: 1x 2.5" HDD tray
- Ports: 1x USB 3.0 port, 1x USB 2.0 Ports, 1x Display Port, 1x HDMI Port, 1x VGA Port, 2x Independent Displays Ports, 2x RJ45 LAN Ports
- Form Factor: Mini-ITX
- Power Supply: 60W DC Power Adapter
- System Cooling: 1x 4cm cooling fan
- Front Panel:
- Buttons: Power On/Off
- LEDs: Power
- Color: Black
- Dimensions (WxDxH): 7.68 x 7.68 x 1.7 inch / 195.0 x 195.0 x 43.0 mm
- Weight: 3.86 lbs / 1.75 kg
- RoHS Compliant
Package Contents:
- SuperServer E200-8B (Black)
- 60W DC Power Adapter
Features
Package Contents:
Yes
- SuperServer E200-8B (Black)
- 60W DC Power Adapter
Environmentally Friendly:
Yes
Specs
| Controllers | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels | 0, 1, 10 |
| Power Description | |
| Maximum Power Supply Wattage | 60 W |
| Number of Power Supplies Installed | 1 |
| Processor | |
| Processor Core | Quad-core (4 Core) |
| Number of Processors Installed | 1 |
| Processor Model | J1900 |
| Processor Type | Celeron |
| Number of Processors Supported | 1 |
| Processor Speed | 2 GHz |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Weight (Approximate) | 3.86 lb |
| Height | 1.7" |
| Width | 7.7" |
| Depth | 7.7" |
| Warranty | |
| Limited Warranty | 3 Year |
| Memory | |
| Memory Technology | DDR3 SDRAM |
| Maximum Memory Supported | 8 GB |
| Display & Graphics | |
| Graphics Memory Accessibility | Shared |
| Graphics Controller Model | HD Graphics |
| Graphics Memory Technology | DDR3 SDRAM |
| General Information | |
| Brand Name | Supermicro |
| Manufacturer Website Address | http://www.supermicro.com |
| Marketing Information | Supermicro's new scalable Mini-ITX Box PC based on Intel® Celeron® J1900 SoC in FCBGA1170. It is well-suited for digital signage, indoor kiosk, embedded applications. |
| Product Type | Server |
| Product Name | SuperServer E200-8B (Black) |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-E200-8B |
| Product Model | E200-8B |
| Product Line | SuperServer |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
