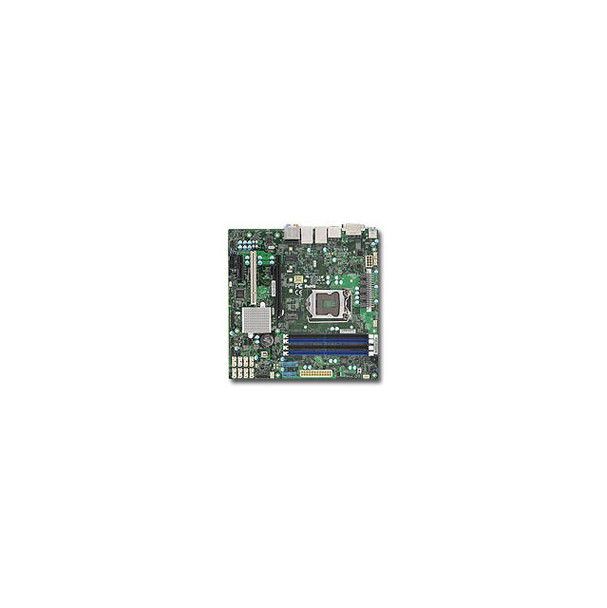

Supermicro X11SAE-M Workstation Motherboard - Intel Chipset - Socket H4 LGA-1151 - Retail Pack (x11sae-m-o)

This item is brand-new, factory sealed.

Key Features:



1. Single socket H4 (LGA 1151) supports, Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i7/i5/i3 series

2. Intel C236 chipset

3. Up to 64GB Unbuffered ECC/non-ECC, UDIMM DDR4 2133MHz; 4x DIMM slots

4. 1x PCI-E 3.0 x16, 1x PCI-E 3.0 x4, and 1x 5V PCI 32-bit slots

5. Single GbE LAN with Intel i210-AT / Single GbE LAN with Intel i219LM

6. 8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (PCIe x4, 2242/2260/2280/22110)

7. I/O: 1x COM, TPM 1.2 header

8. 2x SuperDOM with built-in power

9. 6x USB 3.0 (2 rear + 4 via header) / 6x USB 2.0 (2 rear + 4 via headers) / 2x USB 3.1 (10Gbps, rear)

Processor/Cache
CPU:
- Single Socket H4 (LGA 1151) supports:
- Intel Xeon processor E3-1200 v5, Intel 6th Gen Core i7/i5/i3 series processors
CPU TDP up to 95WSystem Memory
Memory Capacity:
- 4x 288-pin DDR4 DIMM slots
- Up to 64GB DDR4 ECC UDIMM
Memory Type: 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes: 16GB, 8GB, 4GB
Memory Voltage: 1.2V
Error Detection:
- Corrects Single-Bit Errors
- Detects Double Bit Errors (Using ECC Memory)On-Board Devices
Chipset: Intel C236 Chipset
SATA:
- SATA3 (6Gbps) via C236 controller
- RAID 0, 1, 5, 10 support
Network Controllers:
- Intel I210-AT + Intel PHY i219LM Ethernet Controllers
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 outputInput/Output
SATA: 8 x SATA3 (6Gbps) Ports
LAN: 2 x RJ45 Gigabit Ethernet LAN Ports
USB:
- 6x USB 3.0 ports (2 rear + 4 via headers)
- 6x USB 2.0 ports (2 rear + 4 via headers)
- 2x USB 3.1 (rear)
Video: 1 DVI - D, 1 DP (Display Port), 1 HDMI
Audio: ALC 888S HD Audio
Serial Port/Header: 1x COM port (1 header)
SuperDOM: 2x SuperDOM (Disk on Module) ports with built-in power
TPM: 1x TPM 1.2 20-pin HeaderExpansion Slots
PCI-Express:
- 1x PCI-E 3.0 x16 slot
- 1x PCI-E 3.0 x4 slot
- 1x 5V PCI 32bit slotSystem BIOs
BIOs Type:
128Mb SPI Flash EEPROM with AMI BIOS
BIOs Features:
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- Hardware BIOS Virus protection
- SMBIOS 2.7.1
- UEFI 2.3.1
- RTC (Real Time Clock) WakeupManagement
Software:
- AMT
- SuperDoctor 5
- vPro
- Watch Dog
Power Configurations:
- ACPI Power Management
- Keyboard Wakeup from Soft-Off
- CPU Fan auto-off in sleep mode
- Power-on mode for AC power recoveryPC Health Monitoring
Voltage: Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages
FAN:
- Total of 5 fan headers supporting up to 5 fans
- 5 fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature:
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
LED:
- CPU / System Overheat LED
- Suspend static indicator LED
- UID/Remote UID
Other Features:
- Chassis intrusion detection
- Chassis intrusion header
- Chipkill support
- RoHSForm Factor
Micro-ATXItem Dimension (L"xW"xH")
10 x 10 x 1

Weight
3.00 lb

Warranty Information
1 Year
