Supermicro

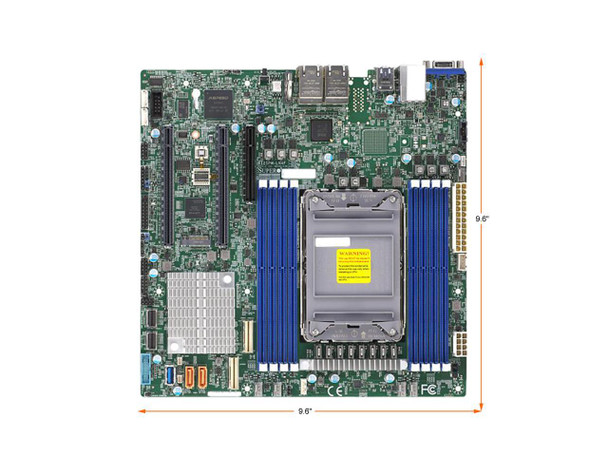

Supermicro MBDX12SPMLN4FO Micro-ATX Server Motherboard LGA-4189
(No reviews yet)
Write a Review
- SKU:
- 18329226
- MPN:
- 247256
- Availability:
- Out of stock
- Stock Update:
- 02/20/2026 01:09:21 PM PST
- Stock Update:
- 02/20/2026 01:09:21 PM PST
Description
This item is brand-new, factory sealed.
SUPERMICRO MBD-X12SPM-LN4F-O Micro-ATX Server Motherboard LGA 4189 C621A- 3rd Gen Intel Xeon Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
- Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
- Up to 2TB Intel Optane Persistent Memory 200 Series, in 8 DIMM slots
- 1 PCIe 4.0 x8, 2 PCIe 4.0 x16, 4 PCIe 4.0 NVMe x4 Internal Port(s) M.2 Interface: 1 SATA/PCIe 3.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key
- 4x NVMe port PCIe 4.0 x4 via SlimSAS connector
Features
Compatibility:
Chassis 2U:
- SC213LT-600LPB
- SCLA26E1C4-R609LP
- SCLA25TQC-R609LP
- SC825TQC-R802LPB
- SC825MBTQC-R802LPB
Chassis 4U/Tower:
-
SC842TQC-668B
Specs
| Onboard Interfaces | |
| Number of SATA Interfaces | 10 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 3.2 Ports | 3 |
| Number of M.2 Interfaces | 1 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 9.6" |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 3 |
| Interfaces/Ports | |
| VGA | Yes |
| Number of USB 2.0 Ports | 2 |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of Network (RJ-45) Ports | 4 |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 8 |
| Memory Speed Supported | 3200 MHz |
| Memory Form Factor |
|
| Maximum Memory Supported | 2 TB |
| Intel Optane Memory Ready | Yes |
| I/O Controller | |
| RAID Supported | Yes |
| Controller Type | Serial ATA/600 |
| RAID Levels |
|
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | AST2600 |
| General Information | |
| Brand Name | Supermicro |
| Package Type | Retail |
| Manufacturer Website Address | http://www.supermicro.com |
| Product Type | Workstation Motherboard |
| Product Name | X12SPM-LN4F Workstation Motherboard |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X12SPM-LN4F-O |
| Product Model | X12SPM-LN4F |
| Packaged Quantity | 1 |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Processor Generation Supported | 3rd Gen |
| Processor Supported | Xeon |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-4189 |
| Chipset Model | C621A |
| Network & Communication | |
| Gigabit Ethernet | Yes |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
