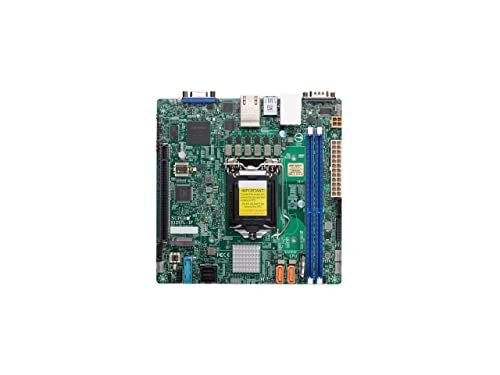

Supermicro X12STL-IF Workstation Motherboard - Intel C252 Chipset - Socket LGA-1200 - Mini ITX (260892)

This item is brand-new, factory sealed.

Key Features

Intel Xeon E-2300 Processor, 10th Generation Intel Pentium Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP

Intel C252

Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz, in 2 DIMM slots

1 PCI-E 4.0 x16

M.2 Interface: 1 PCI-E 3.0 x4

M.2 Form Factor: 2280

M.2 Key: M-Key

Dual LAN with Intel i210 Gigabit Ethernet Controller

Intel C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

1 VGA D-Sub Connector port

2 SuperDOM with built-in power

4x USB 3.2 Gen1 (2 rear, 2 via header), 4x USB 2.0 (2 rear, 2 via headers) Form Factor
Mini-ITX Processor
CPU
10th Generation Intel Pentium Processor, Intel Xeon E-2300 Processor
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
Core
Up to 8 cores System Memory
Memory Capacity
2 DIMM slots
Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz
Memory Type
3200/2933/2666MHz SDRAM
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors On-Board Devices
Chipset
Intel C252
SATA
Intel C252 controller for 6 SATA3 (6 Gbps) ports, RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Graphics
ASPEED AST2600 BMC
Network Controllers
Dual LAN with Intel i210 Gigabit Ethernet Controller Input / Output
SATA
6 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
4 USB 2.0 port(s) (2 rear, 2 via header)
4 USB 3.2 Gen1 port(s) (2 via header, 2 rear)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
1 COM Port(s) (1 rear)
DOM
2 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header Expansion Slots
PCI-E
1 PCI-E 4.0 x16
M.2
M.2 Interface:
1 PCI-E 3.0 x4
Form Factor: 2280
Key: M-Key System BIOS
BIOS Type
256MB UEFI
BIOS Features
ACPI 6.0
SMBIOS 3.3
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0 Management
Software
SuperDoctor 5, SUM, SPM, SSM, IPMI2.0, Watchdog
System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management PC Health Monitoring
Voltage
VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 4 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
LED
UID/Remote UID
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
FAN
4x 4-pin fan headers (up to 4 fans)
Thermal control tachometer fan connectors
Fan speed control
4 fans with tachometer monitoring
Overheat LED indication
Other Features
WOL, UID, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management Operating Environment
Operating Temperature Range

0^oC - 50^oC (32^oF - 122^oF)
Non-Operating Temperature Range
-20^oC - 60^oC (-4^oF - 140^oF)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non Operating Relative Humidity Range
10% - 95% (non-condensing)Weight
3.00 lb

Warranty Information
1 Year
