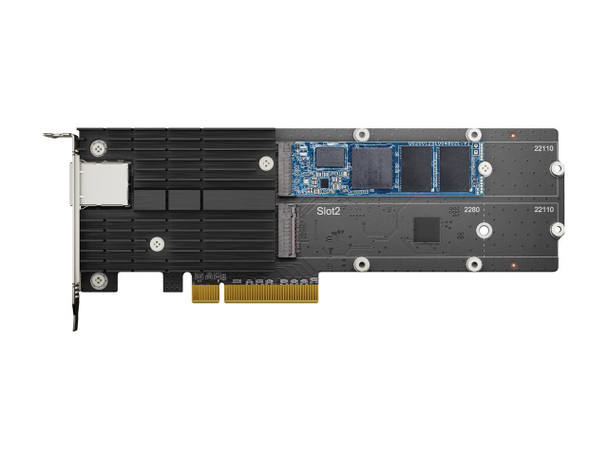

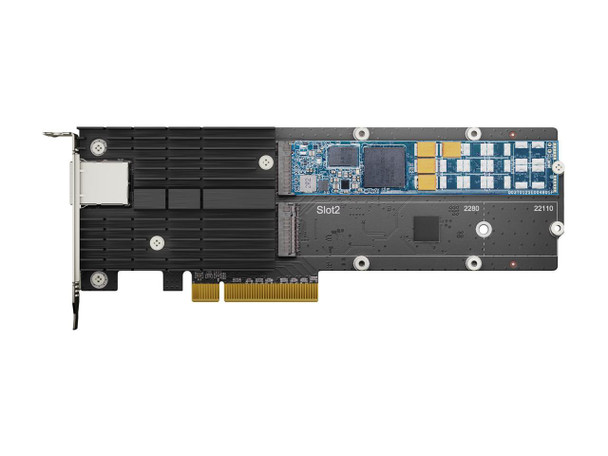

Synology AC E10M20-T1 M.2 Adapter & 10 Gigabit Ethernet Card Retail (244578)

This item is brand-new, factory sealed.

10GbE bandwidth and M.2 SSD cache, all at once

Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS.



10GbE ready

Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps.



NVMe enabled

Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots.



Dedicated cache slots

Free up primary drive bays for data storage.



A perfect match with Synology SNV3000 series NVMe SSD

Install Synology SNV3000 series NVMe SSD on the E10M20-T1 adapter card for fast and streamlined cache acceleration, and take full advantage of Synology SSDs enterprise-grade endurance, performance, and reliability with your Synology NAS. Hardware Specifications General Host Bus Interface
PCIe 3.0 x8 Bracket Height
Low Profile and Full Height Operating Temperature
0^oC to 40^oC (32^oF to 104^oF) Storage Temperature
-20^oC to 60^oC (-5^oF to 140^oF) Relative Humidity
5% to 95% RH Notes
The warranty period starts from the purchase date as stated on your purchase receipt. Storage Storage Interface
PCIe NVMe Supported Form Factor
22110 / 2280 Connector Type and Quantity
M-key, 2 Slots Network IEEE Specification Compliance
IEEE 802.3an 10Gbps Ethernet
IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control Data Transfer Rates
10 Gbps Network Operation Mode
Full Duplex Supported Features
9 KB Jumbo Frame
TCP/UDP/IP Checksum Offloading
Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s Compatibility Applied Models NVMe SSD
SA series:SA3600, SA3400
20 series:RS820RP+, RS820+
19 series:DS2419+, DS1819+
18 series:RS2818RP+, DS3018xs, DS1618+
