Thermaltake PS-SPD-0550MNFABU-1 Smart Bm2 550w Bronze Psspd-0550mnfabx-1

This item is brand-new, factory sealed.

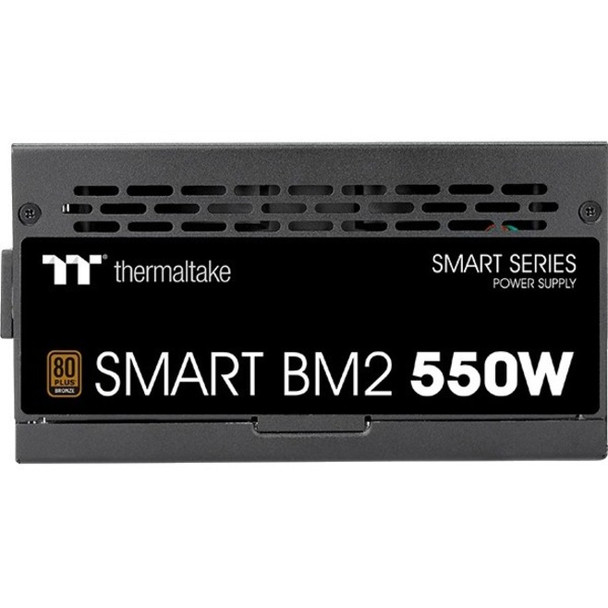

Smart BM2 550W - TT Premium Edition

Built to deliver 80 PLUS Bronze efficiency with up to 85% of it, the Smart BM2 series is available in 450W/550W/650W/750W. Constructed with a 140mm rifle bearing fan, Japanese main capacitors and other premium components, the Smart BM2 550W delivers a continuous and stable power output at 40?, allowing near silent operation and reliable performance. With an ample 5-year warranty, the Smart BM2 550W is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.

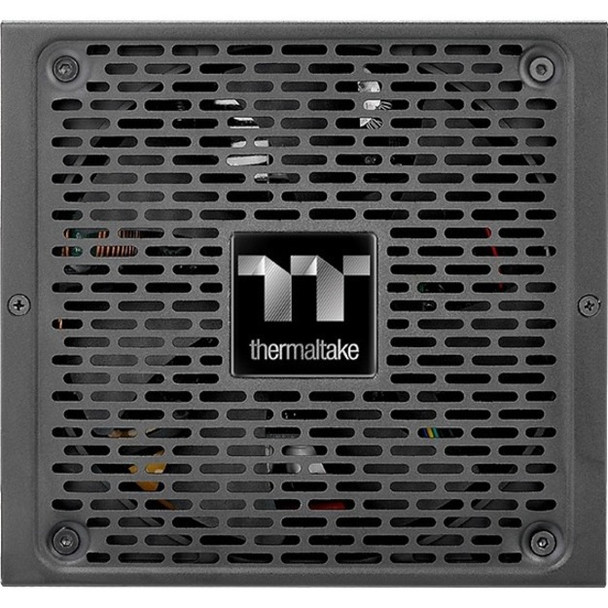

Ultra Quiet 140mm Rifle Bearing Fan

The Smart BM2 550W adopts a 140mm silent Rifle Bearing fan with intelligent preset RPM control guarantying cooling performance and silent operation.

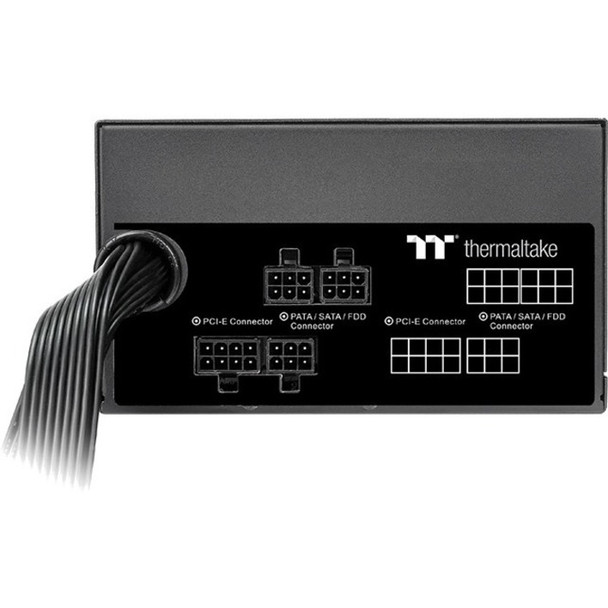

Semi Modular Flat Cable Design

Soft flat black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages.


Japanese Main Capacitor

High quality Japanese main capacitor greatly improves the power supplies durability and ensures the Smart BM2 550W to have highest stability and reliability.


DC to DC for Stable Output Voltage

With DC to DC design, the unit can optimize maximum energy harvest for your system. Such as efficiently change voltage level for 12V, 5V, and 3V and to match the loads to your power supply.


High Amperage Single +12V Rail

Powerful single +12V rail ensures a stable and reliable supply to other PC components. WATTS
550W RGB FAN
No MODEL
SP-550AH3CCB-B TYPE
ATX 12V v2.4 and EPS v2.92 MAX. OUTPUT CAPACITY
550W PEAK OUTPUT CAPACITY
660W COLOR
Black PFC (POWER FACTOR CORRECTION)
Active PFC POWER GOOD SIGNAL
100-500 msec HOLD UP TIME
> 12msec at 80% of full load at 230Vac input INPUT CURRENT
8A max. INPUT FREQUENCY RANGE
47Hz -63Hz INPUT VOLTAGE
100V-240V or more OPERATING TEMPERATURE
0^oC to +40^oC OPERATING HUMIDITY
20% to 90%,non-condensing STORAGE TEMPERATURE
-20 ^oC to +70 ^oC STORAGE HUMIDITY
5% to 95%, non-condensing COOLING SYSTEM
140mm Fan: 2300 R.P.M. +/- 10% EFFICIENCY
Meet 80 PLUSBronze at 115Vac input. MTBF
100,000 hrs minimum
