tp-link
TP-Link TL-SM5110-LR - 10G-LR SFP+ LC Transceiver
(No reviews yet)
Write a Review
- SKU:
- 18315382
- MPN:
- 255529
- Availability:
- Usually ships the same or next business day. In stock at our FL, NJ, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/17/2026 04:46:48 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $35.62 each 35.62 |
| Buy 3 | and pay only $32.89 each 32.89 |
| Buy 4 | and pay only $31.90 each 31.9 |
| Buy 5 - 9 | and pay only $30.55 each 30.55 |
| Buy 10 or above | and pay only $29.32 each 29.32 |
- Stock Update:
- 02/17/2026 04:46:48 PM PST
Description
This item is brand-new, factory sealed.

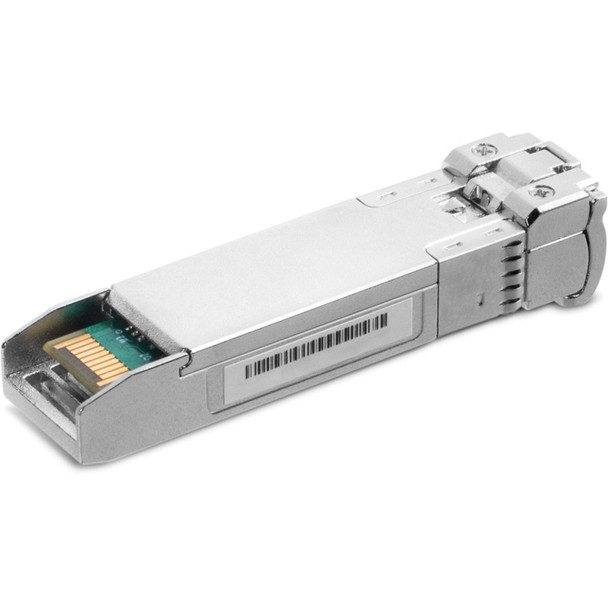

TL-SM5110-LR10GBase-LR SFP+ LC Transceiver
Single-mode SFP+ LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
What This Product Does
The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125m fiber cables respectively.HARDWARE FEATURES
DDM
Yes
SFP-MSA
Yes
Hot Swappable
YesTRANSCEIVER
Standards and Protocols
IEEE 802.3ae, TCP/IP
Wave Length
1310 nm
Power Supply
3.3V
Fiber Type
9/125um Single-Mode
Max. Cable Length
10 km
Data Rate
10 Gbps
Port Type
LC Duplex
Safety and Emission
FCC, CE
Environment
Operating Temperature: 0-70 oC (32-158 oF)
Storage Temperature: -40-85 oC ( -40-185 oF)
Operating Humidity: 10-90% RH, Non-Condensing
Storage Humidity: 5-90% RH, Non-CondensingItem Dimension (L"xW"xH")
5 x 4 x 2
Weight
1 lb
Warranty Information
2 years
Features
Environmentally Friendly:
Yes
China
Yes
Compatibility:
- MSA Compliant
- TP-Link JetStream Switches
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Form Factor |
|
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-LR Network |
| General Information | |
| Brand Name | TP-Link |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Product Type | SFP+ |
| Product Name | 10GBase-LR SFP+ LC Transceiver |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SM5110-LR |
| Media & Performance | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Network Technology | 10GBase-LR |
| Technical Information | |
| Application/Usage |
|
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
View AllClose
TP-Link TL-SM5110-LR - 10G-LR SFP+ LC Transceiver
$39.94
