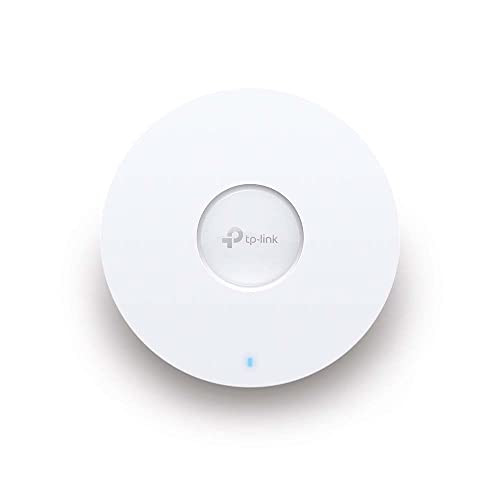

TP-Link EAP610_V2 - AX1800 Ceiling Mount WiFi 6 Access Point EAP610_V2

This item is brand-new, factory sealed.

Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.

Note1: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.

Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.^Note2

Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment. ^Note2

PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.

Noe2: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition. HARDWARE FEATURES

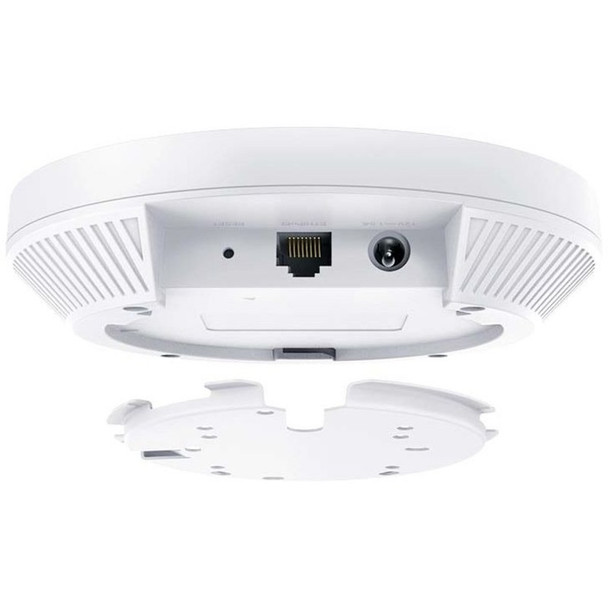

Interface
1x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE) Button
Reset Power Supply
802.3at PoE
48 V Passive PoE
12 V / 1.5 A DC Power Consumption
EU: 13.7 W (For PoE), 12.3 W (for DC)
US: 14.2 W (For PoE), 12.8 W (for DC) Antenna Type
Internal Omni Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box Mounting WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a Frequency
2.4 GHz and 5 GHz Signal Rate
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power
CE:
less than 20 dBm(2.4 GHz, EIRP)
less than 23 dBm(5 GHz band1/2, EIRP), less than 25 dBm (5 GHz band3)
FCC:
less than 25 dBm (2.4 GHz)
less than 25 dBm (5 GHz) MANAGEMENT
Omada App
Yes Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) Email Alerts
Yes LED ON/OFF Control
Yes Management MAC Access Control
Yes SNMP
v1, v2c, v3 System Logging Local/Remote Syslog
Local/Remote Syslog
