TP Link

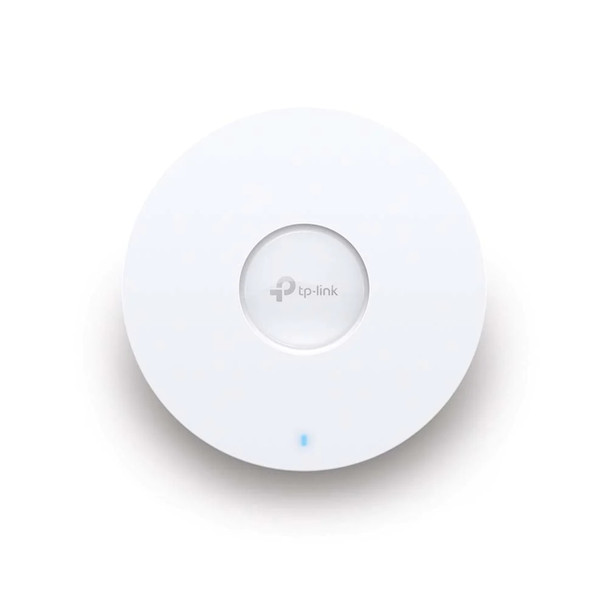

TP-Link EAP613 - Omada True WiFi 6 AX1800 Wireless Gigabit Business Access Point - Limited Lifetime Warranty (271571)
(No reviews yet)
Write a Review
- SKU:
- 20015397
- MPN:
- 271571
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/15/2025 03:47:52 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $85.59 each 85.59 |
| Buy 3 - 12 | and pay only $84.30 each 84.3 |
| Buy 13 | and pay only $82.34 each 82.34 |
| Buy 14 or above | and pay only $79.99 each 79.99 |
- Stock Update:
- 12/15/2025 03:47:52 AM PST
Description
This item is brand-new, factory sealed.
EAP613AX1800 Ceiling Mount WiFi 6 Access Point
Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations.
Ultra-Slim Design: ?160 mm x 33.6 mm elegant design brings more agility.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.HARDWARE FEATURES
Interface
1x Gigabit Ethernet (RJ-45) Port
Button
Reset
Power Supply
802.3at PoE
48 V Passive PoE
12 V / 1 A DC (Power Adapter IS NOT included)
Power Consumption
11.0W (For PoE)
9.9W (For DC)
Antenna TypeI
nternal Omni Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi
Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box MountingWIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)
FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller OC300
Omada Hardware Controller OC200
Omada Software Controller
Cloud Access
Yes, through
OC300
OC200
Omada Software Controller
Omada Cloud-Based Controller
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based ControllerOTHERS
Certification
CE, FCC, RoHS
Package Contents
EAP613
Ceiling/ Wall Mounting Kits
Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
Operating Temperature: 0-40 oC (32-104 oF)
Storage Temperature: -40-70 oC (-40-158 oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensingItem Dimension (L"xW"xH")
10 x 9 x 3
Weight
2 lbs
Warranty Information
Limited Lifetime Warranty
Package Contents:
- AX1800 Ceiling Mount WiFi 6 Access Point
- Ceiling/ Wall Mounting Kits
- Installation Guide
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
Vietnam
- AX1800 Ceiling Mount WiFi 6 Access Point
- Ceiling/ Wall Mounting Kits
- Installation Guide
Additional Information:
Legal Disclaimer:
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Vietnam
Specs
| Power Description | |
| Power Consumption | 9.90 W |
| Physical Characteristics | |
| Form Factor |
|
| Height | 1.3" |
| Width | 6.3" |
| Antenna Form Factor | Internal |
| Depth | 6.3" |
| Warranty | |
| Limited Warranty | 5 Year |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| General Information | |
| Brand Name | TP-Link |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | Easily Upgrade to Business WiFi 6 Network AX1800 Ceiling Mount WiFi 6 Access Point AX1800 WiFi 6 Speed 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz Seamless Roaming Uninterrupted streaming when moving between APs Ultra-Slim Design Φ160 mm ? 33.6 mm elegant design brings more agility High-Efficiency WiFi 6 More connected devices can enjoy faster speeds Omada Mesh Technology More flexible and convenient wireless deployment Gigabit Wired Performance Boosts overall throughput with a Gigabit Ethernet port Centralized Cloud Management Manage the whole network locally or from the cloud PoE+ Powered Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations Optimized WiFi Performance With Portal Authentication, MU-MIMO, Band Steering, Airtime Fairness, and Load Balance Upgrade to WiFi 6, Power up Your Business WiFi 6 brings faster speeds, less lag, and higher capacity. Superior WiFi 6 Speeds Upgrade to WiFi 6 with speeds up to 1775 Mbps brings 50% faster speeds than WiFi 5. Every application feels more fluid with drastically improved Wi-Fi speeds. Seamless Integration into Omada SDN The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface. Hardware, Software, or Cloud-Based Controllers Centralized Cloud Management Intelligent Monitoring Zero-Touch Provisioning (ZTP) Auto Channel Selection and Power Adjustment to Optimize Overall Performance Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network. Easy Deployment & Higher Performance by Omada Mesh | Easy Pairing, Less Wiring With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas. Optimized Network Performance Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted. Always Stay Smooth with Fast Roaming Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal. |
| Product Type | Wireless Access Point |
| Product Name | AX1800 Ceiling Mount WiFi 6 Access Point |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | EAP613 |
| Product Model | EAP613 |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ax |
| Network Band | Dual Band |
| Wireless Transmission Speed | 1.73 Gbit/s |
| MIMO Technology | Yes |
| Data Encryption | Yes |
| Frequency Band |
|
| Beamforming Technology | Yes |
| Encryption Standard |
|
