TP-Link TL-POE260S - 2.5G PoE+ Injector Adapter (TLPOE260S)

This item is brand-new, factory sealed.

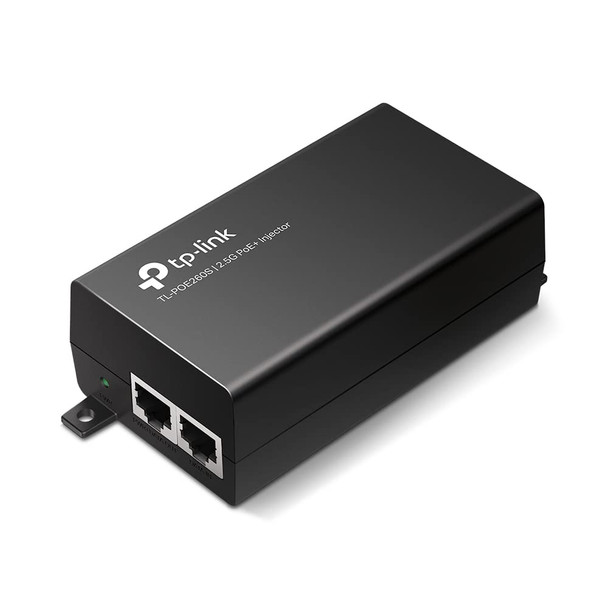

TL-POE260S

2.5G PoE+ Injector

2x2.5 Gbps ports ensure faster transmission

Complies with IEEE802.3af/at standards, supplies up to 30 W

Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

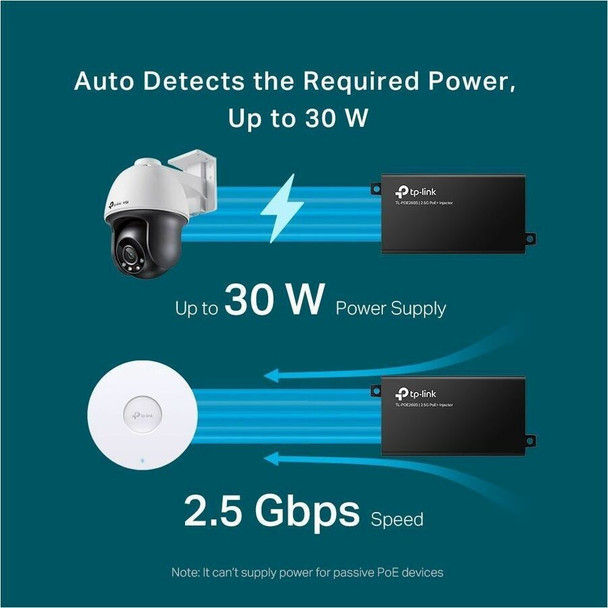

Automatically determines and supplies the exact power to meet the device's need

Wall-mounting and desktop design accommodates most installation scenarios

Plug & Play installation, requires no configuration

Integrated power supply

What This Product Does

The 2.5G PoE+ Injector TL-POE260S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or other equivalent products, to expand your network to where there are no power line or outlet, where you wish to fix device such as 2.5G AP, HD IP Camera or IP Phone, etc.NETWORK
Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3atGENERAL
Certification
FCC, CE, RoHS
Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensingPACKAGE CONTENTS
Package Contents
2.5Gbps PoE+ Injector TL-POE260S
Installation Guide
Power Cord
RJ45 Cable
Wall Mounting KitsHARDWARE FEATURES
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100 Omega STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100 STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
2.5GBASE-T: UTP category 5e or above cable(maximum 100 m)
Ports
1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 data-in port
1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 power+data-out port
1 AC socket
Power Consumption
Input: 100-240 V, 50/60 Hz
Output: Auto-determine the necessary power requirements (max. 30 W)
Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play
LED Indicator
ON: Supplying power normally
OFF: No power supplyItem Dimension (L"xW"xH")
10 x 7 x 4

Weight
3 lbs

Warranty Information
Limited Lifetime
