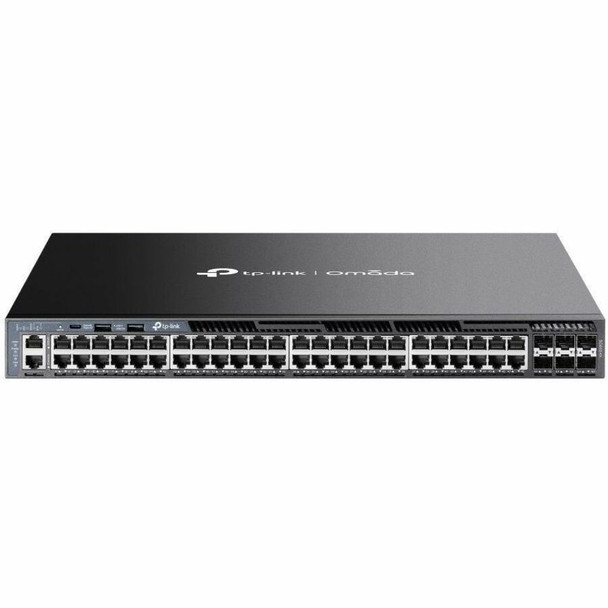

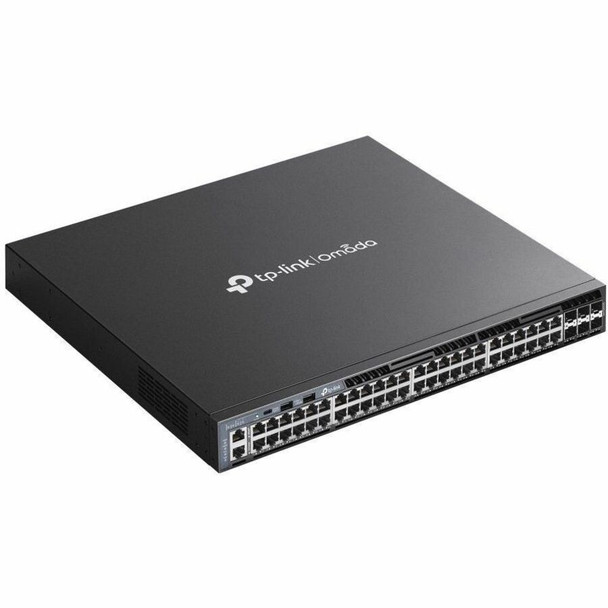

TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots SG6654X

This item is brand-new, factory sealed.

SG6654X
Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots
48 Gigabit RJ45 ports and 6 10 Gbps SFP+ slots
216 Gbps switching capacity per unit
Physical Stacking up to 8 units for built-in redundancy and performance
L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
Security Strategies: ACL, Port Security, DoS Defend, 802.1X
Highly Available with two internal fixed power supplies, VRRP, and ERPS
Centralized cloud management via Omada SDN controller
Standalone management via web, CLI, SNMP, and RMON
What This Product Does
Omada SG6654X, a L3 managed switch, offers L3 routing, swift 10 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 48x gigabit RJ45 ports, 6 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.
High-speed Connectivity and Powerful Stacking
48x Gigabit RJ45 ports and 6 10 Gbps SFP+ slots provide up to 216 Gbps switching capacity per unit. Up to 8 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM and PIM-SM multicast routing protocol guarantees efficient routing for multicast groups.
Highly Available
Internal fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 and IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.HARDWARE FEATURES
Interface
48 10/100/1000 Mbps RJ45 Ports
6x 10G SFP+ Slots
2x USB 2.0 Ports
1x RJ45 Console Port
1x USB Type-C Console Port
1x RJ45 Management Port
Fan Quantity
Four Internal Fixed Fans
Power Supply
Two Internal Fixed Power Supply Modules (100240 VAC, 50/60 Hz)
Mounting
Rackmountable
Max. Power Consumption
39.8 W (220 V/50 Hz)
Max. Heat Dissipation
135.81 BTU/hr (220 V/50 Hz)PERFORMANCE
Switching Capacity
216 Gbps per Unit
Stacking
Stacking Number: 8
Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
Stack Bandwidth: Up to 120 Gbps (6 stack ports)
Packet Forwarding Rate
160.7 Mpps
MAC Address Table
32 K
Packet Buffer Memory
3 MB
Jumbo Frame
9 KBSOFTWARE FEATURES
Quality of Service
Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
Bandwidth Control
- Rate Limit
- Storm Control
Voice VLAN
User-Defined OUI
Smoother Performance
Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
L3 Features
IP Interfaces:
- IPv4: Max 256, IPv6: Max 256
Static Routing
- Max 1,024, IPv6: Max 512
Host Route Table: Max 6,100 entries
RIP: Version v1/v2, Max 8,190
OSPF: Version v2/v3 v2: Max 8,190, v3: Max 4,097
VRRP: Version v2/v3, Max 64 groups
ECMP: 256 entries, max 32 ECMP Nexthops per Destination
Static ARP: 512 static entries
Dynamic ARP: 7,680 dynamic entries
Proxy ARP
DHCP Server:
- Max 8K IP Pools
- Max 1,000 Manual Binding Entries
DHCP Relay:
- Relayed Interface
- Relayed VLAN
L2 and L2+ Features
Link Aggregation
Spanning Tree Protocol
Port-based and VLAN-based Loopback Detection
802.3x Flow Control
Supports 2,048 IGMP groups
ERPS
Mirroring
RSPAN
MAC Address Table
PIM-DM (IPv4)
Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast IP
- Multicast FilteringAdvanced Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ISP Features:
802.3ah Ethernet Link OAM
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
DDM
sFlow
VLAN
Max 4K VLAN Group (802.1q VLAN)
802.1Q Tagged VLAN
MAC VLAN Entries: 200
Multicast VLAN
Management VLAN
VLAN VPN (QinQ): Max 256 entries
GVRP
Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
VLAN VPN
Voice VLAN
Private VLANSecurity
Port Isolation
CPU-Defend
ARP Inspection (Dynamic ARP Inspection)
DoS Defend
IP-MAC-Port Binding
-1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
IPv6-MAC
-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
DHCP Filter
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
AAA (including TACACS+)
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv2
IP/Port/MAC-based access controlManagement Features
Omada App
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning
Yes. Requiring the use of the Omada Cloud-Based Controller.
Management Features
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP Auto Install
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
Password Recovery
SNTP
System Log
EEEOTHERS
Package Content
SG6654X Switch
2x Power Cords
RJ45 Console Cable
Quick Installation Guide
Rackmount Kit
Rubber Feet
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment
Operating Temperature:
-5 ^oC to 50 ^oC (23 ^oF to 122 ^oF) at 300 meters
-5 ^oC to 45 ^oC (23 ^oF to 113 ^oF) at 2,000 meters
-5 ^oC to 40 ^oC (23 ^oF to 104 ^oF) at 3,000 meters
Storage Temperature: -40 ^oC to 70 ^oC (-40 ^oF to 158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensingItem Dimension (L"xW"xH")
24 x 23 x 7

Weight
28 lbs

Warranty Information
5-year
