TP Link
TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++ (tl-sg105pp-m2)
(No reviews yet)
Write a Review
- SKU:
- 20888951
- MPN:
- tl-sg105pp-m2
- Availability:
- Usually ships the same or next business day. In stock at our CA, IL, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/10/2026 04:50:21 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 5 | and pay only $194.43 each 194.43 |
| Buy 6 or above | and pay only $188.84 each 188.84 |
- Stock Update:
- 02/10/2026 04:50:21 PM PST
Description
This item is brand-new, factory sealed.

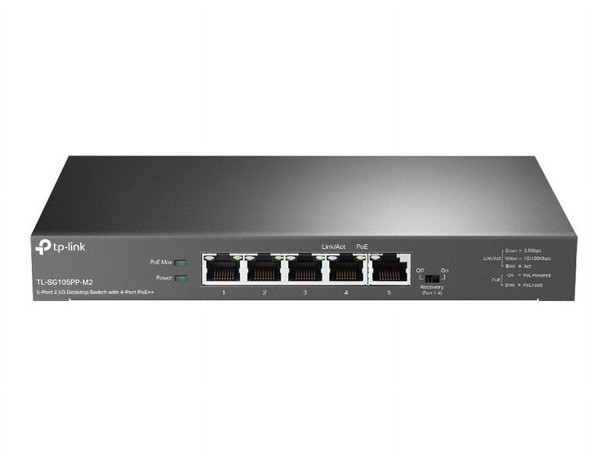

TL-SG105PP-M25-Port 2.5G Desktop Switch with 4-Port PoE++
5 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
With four PoE++ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at/bt type3 compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 60 W for each PoE++ port
Supports PoE Power up to 123 W for all PoE ports
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Plug and Play, no configuration and installation requiredHARDWARE FEATURES
Interface
5x 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
AUTO Negotiation
AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 Omega STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 Omega STP (maximum 100m)
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate
18.6 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at/bt type3 compliant
PoE++ Ports: Ports 14
Power Supply: 123 W
Mac Address Table
4K
Switching Capacity
25 Gbps
Max Power Consumption
7.57 W (220/50 Hz. no PD connected)
143.37 W (220/50 Hz. with 123 W PD connected)
Max Heat Dissipation
25.81BTU/h (220 V/50 Hz with no PD connected)
488.89 BTU/h (220 V/50 Hz with 123W PD connected)SOFTWARE FEATURES
Advanced Features
Compatible With IEEE 802.3af/at/bt type3 Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
PoE Auto Recovery (Ports 1-4)
Transfer Method
Store-And-ForwardOTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SG105PP-M2
Power Adapter
Installation Guide
Rubber Feet
Environment
Operating Temperature: 0-40 oC (32-104 oF)
Storage Temperature: -40-70 oC (-40-158 oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensingItem Dimension (L"xW"xH")
13 x 10 x 3
Weight
3.38 lbs
Warranty Information
Limited Lifetime
Features
Package Contents:
Yes
Network
Restriction of Hazardous Substances (RoHS)
- 5-Port 2.5G Desktop Switch with 4-Port PoE++
- Power Adapter
- Installation Guide
- Rubber Feet
Environmentally Friendly:
Yes
Application/Usage:
Network
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | Power Adapter |
| PoE Budget | 123 W |
| Input Voltage | 53.5 V DC |
| PoE (RJ-45) Port | Yes |
| Power Consumption | 143.37 W |
| Physical Characteristics | |
| Product Material | Steel |
| Form Factor |
|
| Product Color | Black |
| Height | 1" |
| Color Family | Black |
| Width | 8.2" |
| Depth | 5" |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 5 x 2.5 Gigabit Ethernet PoE++ |
| Total Number of Network Ports | 5.0 |
| General Information | |
| Brand Name | TP-Link |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Product Type | Ethernet Switch |
| Product Name | 5-Port 2.5G Desktop Switch with 4-Port PoE++ |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TLSG105PPM2 |
| Product Model | TL-SG105PP-M2 |
| Media & Performance | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Network Technology | 2.5GBase-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards |
|
| Technical Information | |
| Features | Fanless |
