TP Link

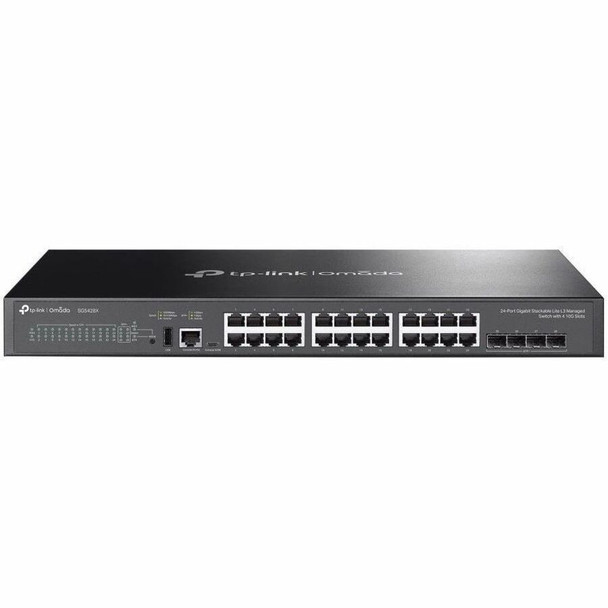

TP-Link Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4? 10G Slots (sg5428x)
- SKU:
- 21366808
- MPN:
- sg5428x
- Availability:
- Usually ships in 2-3 business days. In stock at our CA, IL, NJ warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 01/24/2026 01:34:51 AM PST
- Stock Update:
- 01/24/2026 01:34:51 AM PST
Description
This item is brand-new, factory sealed.
What This Product Does
Omada SG5428X is a dependable entry-level L3 switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 24? gigabit RJ45 ports, 4? 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428X offers a reliable networking solution for SMEs, and ISPs.
High-speed Connectivity and Powerful Stacking
24? gigabit RJ45 ports and 4? 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP). The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management-all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG5428X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Features
Network
Wireless Access Point
Business
Specs
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Frequency |
|
| Input Voltage |
|
| Power Consumption | 19.60 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor |
|
| Height | 1.7" |
| Width | 17.3" |
| Depth | 7.1" |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details |
|
| Total Number of Network Ports | 24 |
| Modular | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| General Information | |
| Brand Name | TP-Link |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | What This Product Does Omada SG5428X is a dependable entry-level L3 switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 24? gigabit RJ45 ports, 4? 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428X offers a reliable networking solution for SMEs, and ISPs. High-speed Connectivity and Powerful Stacking 24? gigabit RJ45 ports and 4? 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance. Abundant Layer 3 Capabilities Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported. Highly Available ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments. Enhanced Security Functions Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell. Omada SDN Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP). The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management-all controlled from a single interface. Apart from the ability to be centrally managed via the web or the Omada app, SG5428X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events. |
| Product Type | Ethernet Switch |
| Product Name | Omada 24-Port Gigabit Stackable Lite L3 Managed Switch with 4? 10G Slots |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | SG5428X |
| Product Model | SG5428X |
| Product Line | Omada |
| Media & Performance | |
| Ethernet Technology |
|
| Media Type Supported |
|
| Network Technology |
|
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards |
|
| Technical Information | |
| High Availability Supported | Yes |
| Features |
|
