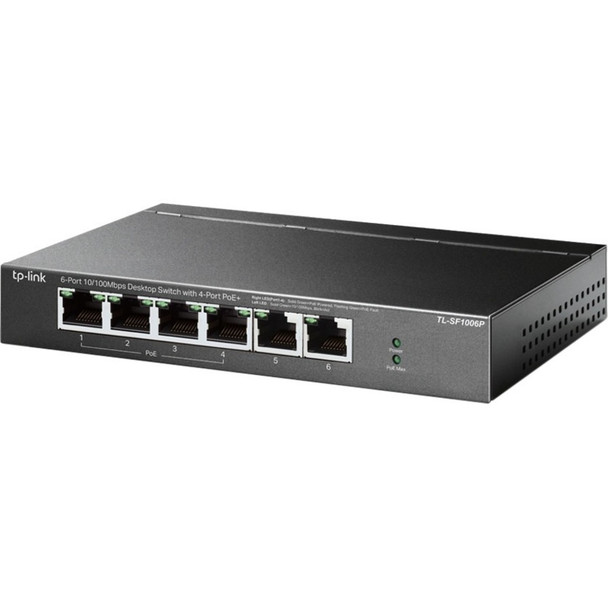

TP-Link TL-SF1006P - 6-Port Fast Ethernet 10/100Mbps PoE Switch - Limited Lifetime Protection

This item is brand-new, factory sealed.

6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

6 10/100 Mbps RJ45 ports

4 PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs

Up to 250m data and power transmitting range under Extend Mode**

Priority Mode ensures high priority of ports 12 to guarantee the quality of sensitive application

Supports PoE Power up to 30 W for each PoE port

Supports PoE Power up to 67 W for all PoE ports*

Plug and play with no configuration required

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.


Professional High-Power Switch with 4 PoE+ Ports

Plug and Play, with PoE Transmission for Surveillance up to 250 m


Dedicated 4-Port PoE+ Switch (67 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE standard supports up to 30 W on each PoE port. The total 67 W PoE power budget* for the 4 PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.


Ideal for IP SurveillanceUp to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m**perfect for IP Camera deployment in large areas.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type. HARDWARE FEATURES
Interface
6x 10/100 Mbps RJ45 Ports (ports 1 - 4 support 802.3af/at PoE+)
AUTO Negotiation
AUTO MDI/MDIX Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 Ohm STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 Ohm STP (maximum 100m)Fan Quantity
Fanless Physical Security Lock
Yes External Power Supply
External Power Adapter (Output: 54 V DC / 1.3 A) Packet Forwarding Rate
892.8 Kpps PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 1 - 4
Power Supply: 67 W Mac Address Table
2K Jumbo Frame
2 KB Switching Capacity
1.2 Gbps Max Power Consumption
1.9 W (with no PD connected)
74 W (with 67 W PD connected) Max Heat Dissipation
6.5 BTU/h(with no PD connected)
252.3 BTU/h(with 67 W PD connected) SOFTWARE FEATURES
Transmission Method
Store-and-forward Advanced Functions
Compatible with IEEE 802.3af/at compliant power devices (PDs)
Extend mode switch (Ports 1 - 4)
Priority mode switch (Ports 1 - 2)
MAC address auto-learning and auto-aging
IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode OTHERS
Certification
FCC, CE, RoHS Package Contents
TL-SF1006P
Power Adapter
Installation Guide Environment
Operating Temperature: 0 - 40 ^oC (32 - 104 ^oF)
Storage Temperature: -40 - 70 ^oC (-40 - 158 ^oF)
Operating Humidity: 10 - 90% RH non-condensing
Storage Humidity: 5 - 90% RH non-condensingItem Dimension (L inchxW inchxH inch)
8 x 6 x 5

Weight
2.00 lb

Warranty Information
Limited Lifetime Warranty
