TP Link

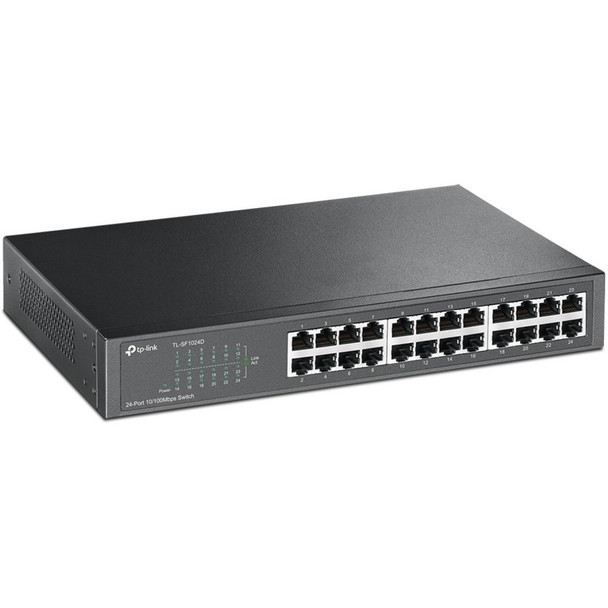

Tp-Link TL-SF1024D Ethernet Switch - 24 Port - 24 x 10/100Base-TX
(No reviews yet)
Write a Review
- SKU:
- 18134504
- MPN:
- tl-sf1024d
- Availability:
- Out of stock
- Stock Update:
- 04/30/2025 05:55:06 PM PST
- Stock Update:
- 04/30/2025 05:55:06 PM PST
Description
This item is brand-new, factory sealed.
24 10/100M RJ45 ports.Supports MAC address self-learning and auto MDI/MDIX.
Standard 13-inch steel case.HARDWARE FEATURES
Standards and Protocols
IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IPInterface
24 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)Network Media
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)Backup Bandwidth
4.8GbpsExternal Power Supply
100-240VAC, 50/60HzLED Indicator
Power, Link/Act, 100MbpsSOFTWARE FEATURES
Basic Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex ModePort Forwarding
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/portTransfer Method
Store-and-ForwardMAC Address Table
8kItem Dimension (L"xW"xH")
20.48 x 16.54 x 13.59Weight
27.73Warranty
1 Year
Features
Package Contents:
Yes
Restriction of Hazardous Substances (RoHS)
- TL-SF1024D Ethernet Switch
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
Certifications & Standards:
- CE
- FCC
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | Power Supply |
| PoE (RJ-45) Port | No |
| Power Consumption | 3.20 W |
| Physical Characteristics | |
| Form Factor |
|
| Height | 1.7" |
| Width | 11.6" |
| Depth | 7.1" |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 24 x Fast Ethernet Network |
| Total Number of Network Ports | 24 |
| Number of Network (RJ-45) Ports | 24 |
| General Information | |
| Brand Name | TP-Link |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | What This Product Does The TL-SF1024D Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75% of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network. |
| Product Type | Ethernet Switch |
| Product Name | TL-SF1024D Ethernet Switch |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TL-SF1024D |
| Product Model | TL-SF1024D |
| Media & Performance | |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards |
|
