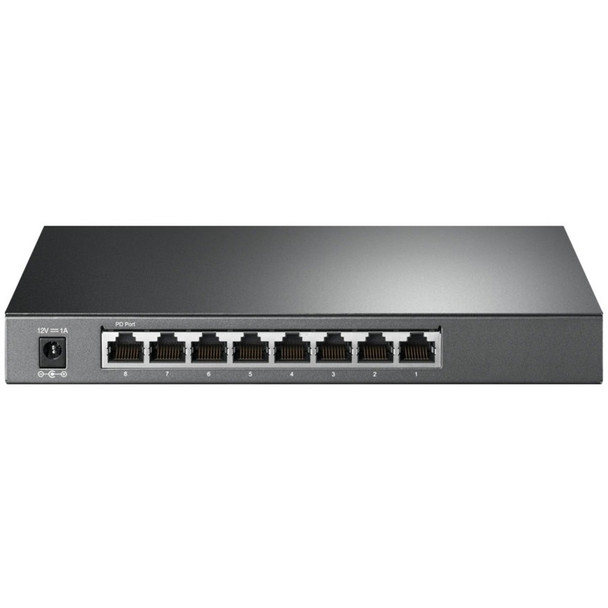

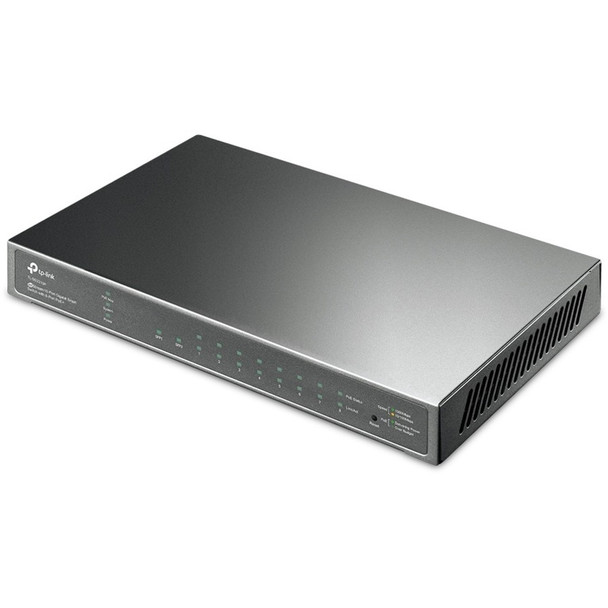

TP-LINK TL-SG2008 8-port Pure-Gigabit Desktop Smart Switch, 8 10/100/1000Mbps RJ45 ports, Tag-based VLAN, STP/RSTP/MSTP, IGMP V1/V2/V3 Snooping, DHCP Filtering, 802.1P Qos, Rate Limiting, Voice VLAN, TLSG2008_3

This item is brand-new, factory sealed.

TP-LINK Gigabit Smart Switch TL-SG2008 is equipped with 8 gigabit RJ45 ports. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features. TP-LINKs 8-Port Gigabit Smart Switch TL-SG2008 is especially designed for the small and medium business networks that require efficient network management. TL-SG2008 comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. Whats more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.




Abundant Layer 2 Features


For more application of layer 2 switches, TL-SG2008 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP; Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast accessHARDWARE FEATURES:Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1pInterface
8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)Fan Quantity
FanlessPower Supply
100 to 240V AC 50/60 HzPERFORMANCE:Bandwidth/Backplane
16GbpsMAC Address Table
8kPacket Forwarding Rate
11.9 MppsJumbo Frame
9216 BytesSOFTWARE FEATURES:Quality of Service
Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLANL2 Features
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow ControlVLAN
Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)Access Control List
L2L4 package filtering based on source and destination
MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range BasedSecurity
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown Unicast Storm ControlManagement
Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP Web
System Diagnose: VCT
SYSLOG Public MIBSOTHERS:Certification
CE, FCC, RoHS
