Trendnet
TRENDnet 1000Base-SX Industrial SFP Multi-Mode LC Module [550 m] (ti-mgbsx)
- SKU:
- 18215879
- MPN:
- ti-mgbsx
- Availability:
- Usually ships the same or next business day. In stock at our MS warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/09/2025 03:27:58 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $39.27 each 39.27 |
| Buy 3 | and pay only $37.37 each 37.37 |
| Buy 4 | and pay only $35.43 each 35.43 |
| Buy 5 - 6 | and pay only $34.86 each 34.86 |
| Buy 7 or above | and pay only $34.21 each 34.21 |
- Stock Update:
- 12/09/2025 03:27:58 AM PST
Description
This item is brand-new, factory sealed.

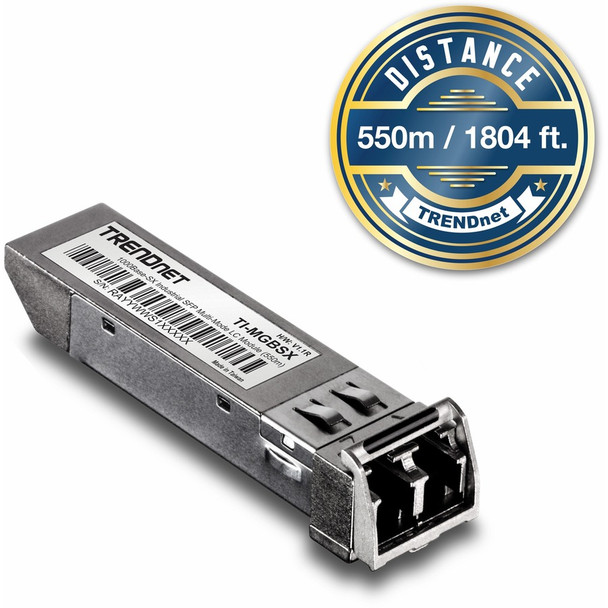

The 1000Base-SX Industrial SFP Multi-Mode LC Module, model TI-MGBSX, is designed to operate within a wide temperature range and is well suited for industrial environments. This SFP module works with standard SFP slots found on industrial switches and fiber converters. The TI-MGBSX is compatible with Duplex LC fiber connector types and supports gigabit multi-mode fiber connections at distances of up to 550 m (1804 ft.).
Fiber Applications

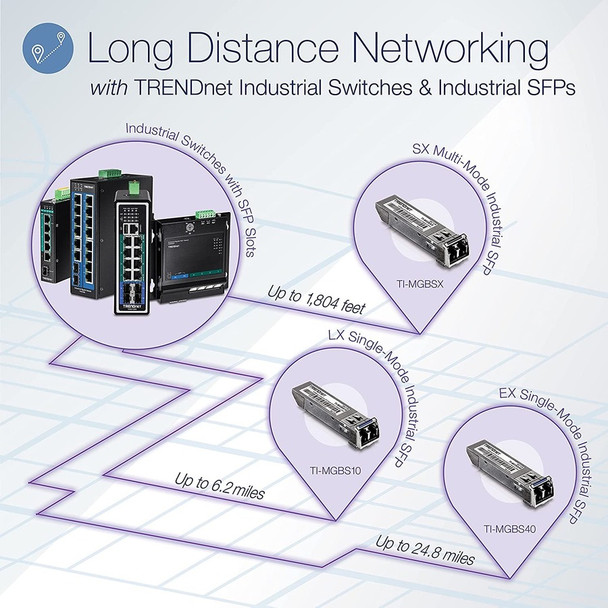

Long distance fiber networking for industrial, manufacturing, and corporate / education campus applications.
Fiber Mode / Distance
Multi-Mode transceiver spans distances up to 550 m (1804 ft.) and supports up to 1.25 Gbps.
Compatibility
Hot-pluggable with a MSA compliant SFP slot and compatible with fiber cables with LC-type duplex connectors.
Package Contents:
- 1000Base-SX Industrial SFP Multi-Mode LC Module (550 m)
- Quick Installation Guide
Features
Yes
Package Contents:
- 1000Base-SX Industrial SFP Multi-Mode LC Module (550 m)
- Quick Installation Guide
Compatibility:
MSA Compliant
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Weight (Approximate) | 1.43 lb |
| Height | 3" |
| Width | 5" |
| Depth | 10" |
| Warranty | |
| Limited Warranty | Lifetime |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-SX Network |
| General Information | |
| Brand Name | TRENDnet |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | The 1000Base-SX Industrial SFP Multi-Mode LC Module, model TI-MGBSX, is designed to operate within a wide temperature range and is well suited for industrial environments. This SFP module works with standard SFP slots found on industrial switches and fiber converters. The TI-MGBSX is compatible with Duplex LC fiber connector types and supports gigabit multi-mode fiber connections at distances of up to 550 m (1804 ft.). Fiber Applications Long distance fiber networking for industrial, manufacturing, and corporate/education campus applications. Fiber Mode / Distance Multi-Mode transceiver spans distances up to 550 m (1804 ft.) and supports up to 1.25 Gbps. Compatibility Hot-pluggable with a MSA compliant SFP slot and compatible with fiber cables with LC-type duplex connectors. Compliant with IEEE 802.3z Gigabit Ethernet ANSI Fiber Channel compliant Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant Wide operating temperature range of -40°- 85 °C (-40° - 185 °F) Supports data rates of up to 1.25 Gbps Transmission distance of up to 550 m (1804 ft.) Low Electromagnetic Interference (EMI) design Supports 850 nm multi-mode network transmissions Duplex LC optical interface Low power consumption NDAA / TAA compliant Lifetime Warranty |
| Product Condition | New |
| Product Type | SFP (mini-GBIC) |
| Product Name | Hardened Mini-GBIC Multi-Mode 100-Base-FX LC Module (2KM) |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TIMGBSX |
| Product Model | TI-MGBSX |
| Media & Performance | |
| Ethernet Technology |
|
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Network Technology | 1000Base-SX |
| Technical Information | |
| Application/Usage |
|
