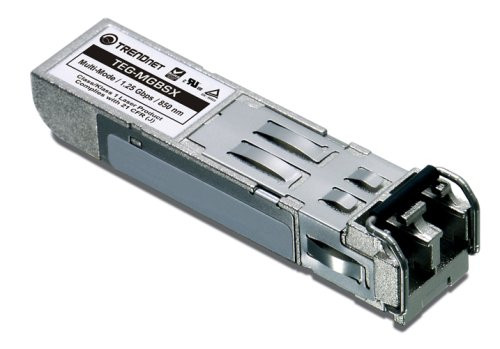

TRENDnet SFP Multi-Mode LC Module TEGMGBSX
- SKU:
- 18061580
- MPN:
- teg-mgbsx
- Availability:
- Usually ships the same or next business day. In stock at our IN, MS warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/08/2025 04:25:43 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $25.38 each 25.38 |
| Buy 3 | and pay only $23.50 each 23.5 |
| Buy 4 - 9 | and pay only $22.17 each 22.17 |
| Buy 10 - 15 | and pay only $19.87 each 19.87 |
| Buy 16 or above | and pay only $19.43 each 19.43 |
- Stock Update:
- 12/08/2025 04:25:43 PM PST
Description
This item is brand-new, factory sealed.
The TEG-MGBSX Mini-GBIC Multi Mode module works with standard Mini-GBIC slots on most switches. This Multi-Mode LC Type module spans distances up to 550m (1,800ft) and includes 1 x 1000Mbps-SX (LC-Type) Mini-GBIC connector
Features
NDAA Compliant:
Yes
Yes
Taiwan
Yes
TAA Compliant:
Yes
Additional Information:
- Wavelength: 850nm
- Die Cast Metal Housing for low EMI
- Pout (dBm): -9.5 ~ 0.0
- Sensitivity: -18
- Power: 8.5
Application:
- Switch to Switch Interface
- High Speed I/O for File Server
- Channel Extender, Data Storage
Compatibility:
- This Module is for industry standard SFP slot
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage | 3.3 V DC |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Weight (Approximate) | 0.39 lb |
| Height | 3" |
| Width | 3" |
| Depth | 5" |
| Warranty | |
| Limited Warranty | 3 Year Lifetime |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-SX |
| General Information | |
| Brand Name | TRENDnet |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | Transmission distance of up to 550m (1804 ft.) Supports data rates of up to 1.25Gbps Compliant with IEEE 802.3z Gigabit Ethernet ANSI Fiber Channel compliant Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant Low Electromagnetic Interference (EMI) design Supports 850nm multi-mode network transmissions Duplex LC optical interface Low power consumption NDAA / TAA compliant (U.S. and Canada only) TRENDnet LIFETIME PROTECTION: This module comes with lifetime manufacturer protection. TRENDnet's SFP Multi-Mode LC Module, model TEG-MGBSX, are compatible with standard SFP slots found on network switches and fiber media converters. The Multi-Mode SFP LC module is equipped with a duplex LC fiber connection interface, and supports gigabit multi-mode fiber connections for long distance networking applications. Fiber Applications Long distance fiber networking for manufacturing, business parks, and school campus applications. Fiber Mode/Distance Multi-Mode transceiver spans distances up to 550m (1804 ft.) at gigabit speeds. Compatibility Hot-pluggable with an MSA compliant SFP slot, and compatible with fiber cables with LC-type duplex connectors. More from the Manufacturer |
| Product Condition | New |
| Product Type | SFP (mini-GBIC) |
| Product Name | Mini GBIC Multi-mode SX Module |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEGMGBSX |
| Product Model | TEG-MGBSX |
| Media & Performance | |
| Ethernet Technology | Gigabit Ethernet |
| Maximum Distance Supported | 0.55 km |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Network Technology | 1000Base-SX |
| Technical Information | |
| Application/Usage | Data Networking |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
