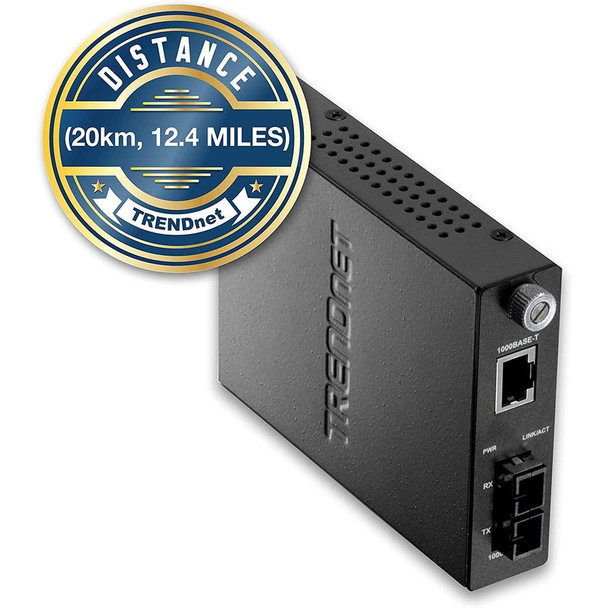

TRENDnet Intelligent 1000Base-T to 1000Base-LX/SX Single Mode SC Fiber Media Converter (TFC1000S20)
(No reviews yet)
Write a Review
- SKU:
- 18427843
- MPN:
- tfc-1000s20
- Availability:
- Out of stock
- Stock Update:
- 07/31/2024 01:52:18 PM PST
- Stock Update:
- 07/31/2024 01:52:18 PM PST
Description
This item is brand-new, factory sealed.
TRENDnet's TFC-1000 series Fiber Media Converter transforms 1000Base-T (Copper Gigabit) media to 1000Base-SX/LX (Fiber Gigabit) media and vice versa. The 1000Base-T port supports full-duplex Gigabit connection at wire speed with RJ45 connector. The fiber Gigabit connection supports longwave (LX) laser optic with single-mode SC type connector. This converter will give your Copper Gigabit connection the ability to interface with fiber connection over a distance up to 20 km.
Features
NDAA Compliant:
Yes
Taiwan
Yes
Certifications & Standards:
- IEEE 802.3ab
- IEEE 802.3z
- EIA/TIA-568
- FCC
- CE
- VCCI
Additional Information:
- Access Method: CSMA/CD
- Wavelength: 1300nm
- Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
Compatibility:
16-Slot Chassis System for TFC series Fiber Converter (TFC-1600)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Input Voltage | 7.5 V DC |
| Power Consumption | 7.20 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Weight (Approximate) | 1.21 lb |
| Height | 3" |
| Width | 6" |
| Depth | 8" |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| SC Port Type | Duplex |
| Total Number of Ports | 2 |
| Number of SC Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| General Information | |
| Brand Name | TRENDnet |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | The TFC-1000S20 Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Single Mode SC-Type fiber converter that supports SNMP and spans distances up to 20km (12.4miles). Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-LX (SC-Type) port. SC-type single-mode fiber port connects over distances of up to 20km (12.4 miles) 1000Base-T Gigabit copper port supports Full-Duplex mode Supports port level SNMP management Functions as a stand alone converter or with the TFC-1600 fiber chassis Lifetime TRENDnet Manufacturer's Warranty NDAA / TAA compliant (U.S. and Canada only) Compliant with IEEE 1000Base-T and 1000Base-LX One 1000Base-T RJ-45 port One 1000Base-LX Port w/ SC-Type Connector Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed Wall-Mountable Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters More from the Manufacturer |
| Product Type | Transceiver/Media Converter |
| Product Condition | New |
| Product Name | 1000Base-T to 1000Base-LX Single Mode Fiber Converter (20KM) |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TFC1000S20 |
| Product Model | TFC-1000S20 |
| Media & Performance | |
| Maximum Distance Supported | 20 km |
| Media Type Supported |
|
| Fiber Mode Supported | Single-mode |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
