TRENDnet 100Base-TX to 100Base-FX Single Mode SC Fiber Media Converter (15 Km / 9.3 Miles) (TFC110S15)
- SKU:
- 18136938
- MPN:
- tfc-110s15
- Availability:
- Out of stock
- Stock Update:
- 10/23/2023 10:48:05 AM PST
- Stock Update:
- 10/23/2023 10:48:05 AM PST
Description
This item is brand-new, factory sealed.
TRENDnet's TFC-110 series Fiber Media Converter transforms 10/100Base-TX UTP/STP media to 100Base-FX media and vice versa. The 10/100Base-TX port auto-sense 10 or 100Mbps connection speed, auto-negotiates half-/full-duplex mode, and auto-selects MDI-X / MDI-II media type. The fiber connection can be multi-mode SC, MT-RJ, or single-mode SC Connector and it has a slide-switch for selecting half- or full-duplex mode. This converter will give your Switch/Hub the ability to interface with fiber connection over a distance up to 15 km. With the optional 16-slot EIA-19" rack-mount chassis; the TFC series converters are the perfect solutions for various fiber media conversions for your network.
Features
- IEEE 802.3: 10Base-T
- IEEE 802.3u: 100Base-TX and 100Base-FX
- FCC
- CE
- VCCI
Additional Information:
- Wavelength: 1300nm
- Protocol: CSMA/CD
- Supported Frame Size: Standard Ethernet up to 1522-Byte
- The fiber connection can be multi-mode SC, MT-RJ
- Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
Used with TFC1600. TFC-1600 is a 19" system chassis. holds up to 16 TFC series Media Converters TFC-110MSC, TFC-110MST, TFC110S15, TFC-110S30 and TFC-1000MSC
Country of Origin:
China
Specs
| Power Description | |
| Input Voltage | 7.5 V DC |
| Power Consumption | 7.20 W |
| Physical Characteristics | |
| Form Factor |
|
| Weight (Approximate) | 8.80 lb |
| Height | 5" |
| Width | 12" |
| Depth | 17" |
| Warranty | |
| Limited Warranty | 3 Year Lifetime |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Ports | 2 |
| Number of SC Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| General Information | |
| Brand Name | TRENDnet |
| Manufacturer Website Address | http://www.trendnet.com |

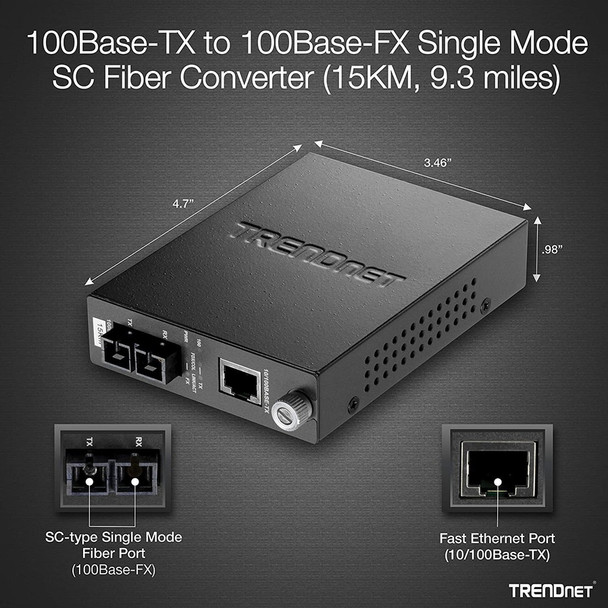

| Marketing Information | The TFC-110S15 Fiber Converter works with the TFC-1600 chassis system or as a standalone unit This converter is a Single Mode SC-Type fiber converter spanning distances up to 15km (9.3 miles) Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type) One 10/100 Base-TX auto-negotiation RJ-45 port Auto-negotiation 10/100 Mbps connection speed and half/full-duplex mode on TX port One 100 Mbps fiber port with single-mode SC-type connector Half/full-duplex mode selector on fiber port Status LED indicators for power, link/activity, full-duplex, and speed NDAA / TAA compliant (U.S. and Canada only) The TFC-110S15 Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Single Mode SC-Type fiber converter spanning distances up to 15km (9.3 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type). Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards 1 x 10/100Base-TX auto-negotiation RJ-45 port Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port Auto MDIX for 10/100Base-TX port 1 x 100Mbps fiber port with single-mode SC-type connector Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed Dip-switch for full and half duplex selection on fiber port Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters Lifetime TRENDnet Manufacturer's Warranty PACKAGE CONTENTS TFC-110S15 Multi-Language Quick Installation Guide Power Adapter (5V, 1A) More from the Manufacturer |
| Product Type | Transceiver/Media Converter |
| Product Condition | New |
| Product Name | 10/100Base-TX to 100Base-FX Single Mode Fiber Converter (15KM) |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TFC110S15 |
| Product Model | TFC-110S15 |
| Media & Performance | |
| Maximum Distance Supported | 15 km |
| Media Type Supported |
|
| Fiber Mode Supported | Single-mode |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology |
|
