Trendnet
TRENDnet Hardened Industrial 90W Gigabit 4Ppoe Injector,4-Pair Power Over Ethernet, Poe[15.4W], Poe+[30W], 4Ppoe[90W]Power, IP30, DIN-Rail/Wall Mount Included, 4-Pair Poe Up to 100M [328 ft.],TI-IG90
(No reviews yet)
Write a Review
- SKU:
- 18815570
- MPN:
- ti-ig90
- Availability:
- Out of stock
- Stock Update:
- 01/31/2026 11:50:30 PM PST
- Stock Update:
- 01/31/2026 11:50:30 PM PST
Description
This item is brand-new, factory sealed.
- Hardened IP30 rated Gigabit 4PPoE Injector
- PoE (15.4W), PoE+ (30W), or 4PPoE (90W) power , Power supply sold separately (model TI-S12048)
- Network a PoE device located up to 100m (328 ft.) away, Includes DIN-rail mount and wall mount
- Extreme -40 to 75 °C (-40 to 167 °F) operating temperature range
- Redundant power inputs with overload current protection
TRENDnet's TI-IG90 is a reliable IP30 rated Industrial Gigabit 4PPoE Injector with hardened components rated for extreme and rugged industrial environments. Connect the TI-IG90 industrial PoE injector to a non-PoE Gigabit switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG90 industrial PoE injector supplies power to a PoE, PoE+, UPoE, or 4PPoE (up to 90W) device. This industrial PoE injector features redundant power inputs with overload current protection to support zero downtime applications. Both DIN-rail and wall mount hardware are included with the industrial PoE injector.
4-Pair PoE
Supplies power to a PoE (up to 15.4W), PoE+ (up to 30W), or 4PPoE (up to 90W) device.
Gigabit Ports
The industrial PoE injector features 1 x gigabit port and 1 x gigabit 4PPoE port.
Installation Flexibility

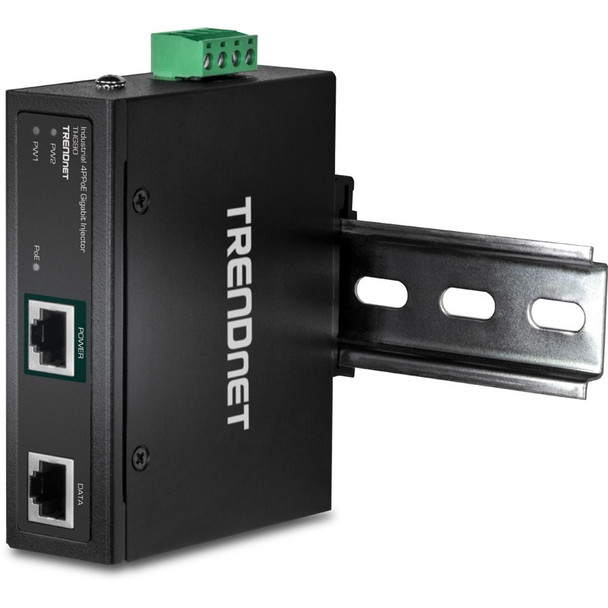

A rugged IP30 rated metal enclosure with DIN-rail and wall mount brackets accommodate most installations scenarios.
PACKAGE CONTENTS
- TI-IG90
- Quick Installation Guide
- Removable terminal block
- DIN-rail and wall mount kit
Package Contents:
- Hardened Industrial 90W Gigabit 4PPoE Injector
- Quick Installation Guide
- Removable terminal block
- DIN-rail and wall mount kit
Features
NDAA Compliant:
Yes
Hardened Industrial 90W Gigabit 4PPoE Injector Removable terminal block DIN-rail and wall mount kit
IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-31) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Yes
Taiwan
Yes
Package Contents:
Certifications & Standards:
Standards:
Certifications:
TAA Compliant:
Yes
Country of Origin:
Taiwan
Specs
| Power Description | |
| Maximum Output Power | 95 W |
| Input Voltage | 57 V DC |
| Physical Characteristics | |
| Form Factor | DIN Rail/Wall Mountable |
| Weight (Approximate) | 4.73 oz |
| Length | 4.1" |
| Mount Type | DIN Rail/Wall Mountable |
| Height | 1.2" |
| Width | 3.2" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Output Ports | 1 x Gigabit PoE++ |
| Input Ports | 1 x Gigabit Ethernet |
| General Information | |
| Brand Name | TRENDnet |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | TRENDnet's TI-IG90 is a reliable IP50 rated Industrial Gigabit PoE++ Injector with hardened components rated for extreme and rugged industrial environments. Connect the TI-IG90 industrial PoE injector to a non-PoE gigabit switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG90 industrial PoE injector supplies power to a PoE, PoE+, or PoE++ (up to 95W) device. This industrial PoE injector features dual redundant power inputs with overload current protection to support zero downtime applications. Both DIN-rail and wall mount hardware are included with the industrial PoE injector. DEVICE INTERFACE: 1 x Gigabit port (10Mbps/100Mbps/1Gbps); 1 x Gigabit PoE++ port (10Mbps/100Mbps/1Gbps); 4- pin power terminal block; LED Indicators NDAA + TAA COMPLIANT: With NDAA and TAA compliant network products, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only) POE++: Supplies power to a PoE (up to 15.4W), PoE+ (up to 30W), or PoE++ (up to 95W) device. CONNECTION DISTANCE: Connect the TI-IG90 industrial PoE injector to a non-PoE gigabit switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. INDUSTRIAL HARDENED DESIGN: Equipped with a rugged IP50 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° - 75° C (-40° - 167° F). DIN RAIL & WALL MOUNTS: IP50 rated industrial injector includes DIN-Rail mount and wall mount hardware POWER SUPPLY SOLD SEPARATELY: Use this industrial injector with the compatible power supply model TI-S15052 (Sold Separately) FAULT TOLERANCE: The industrial PoE++ injector features 48 - 57V DC power input with overload current protection GROUNDING POINT: The injector features a grounding point to protect equipment from external electrical surges ELECTRO MAGNETIC COMPLIANCE: Complies with industrial EMS certifications ESD (IEC 61000-4-2): Level 3 Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 6kV More from the Manufacturer |
| Product Condition | New |
| Product Type | PoE Injector |
| Product Name | Hardened Industrial 90W Gigabit 4PPoE Injector |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TIIG90 |
| Product Model | TI-IG90 |
| Technical Information | |
| Protection Type | Overload Protection |
Warranty Information
