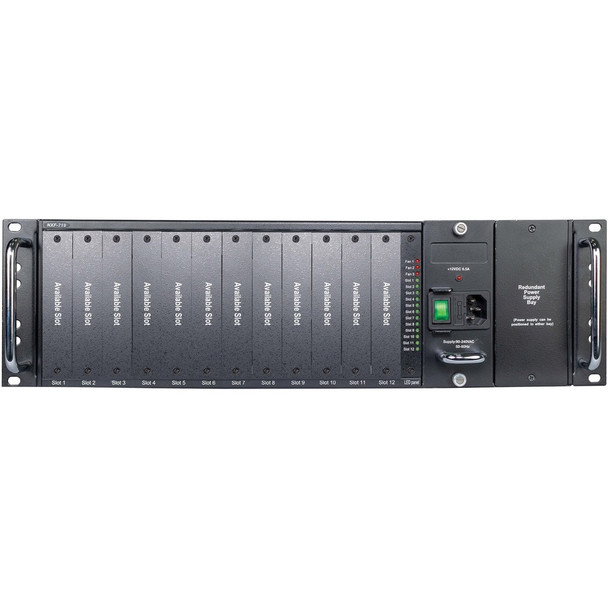

Tripp Lite 12-Slot Media Converter Chassis for Select N784-H and N785-H Models, 3U Rack Mount (n785-ch12)

This item is brand-new, factory sealed.

Tripp Lite 12-Slot Fiber Media Converter Chassis for Select N784-H and N785-H Models, Convert to SC, ST & SFP Fiber Types, 3U Rack Mount, Compatible with AC or DC Power, 1-Year Warranty (N785-CH12)

• ORGANIZE AND POWER UP TO 12 MEDIA CONVERTERS: Power up to 12 multimedia converters, including SC, ST and SFP fiber types. Compatible with Tripp Lite N784-H01-SCMM, N784-H01-STMM, N784-H01-SCSM, N785-H01-SCMM, N785-H01-SCSM & N785-H01-SFP converters.
• WORKS WITH DC AND AC POWER SUPPLIES: Preinstalled AC Power with six-foot (1.8M) power cord and preinstalled glass-tube fuse (two spare fuses are included). Secondary AC or DC power supplies (sold separately) may be installed to provide redundant power.
• LEDS KEEP YOU INFORMED AT A GLANCE: Green LEDs indicate when a media converter has been correctly installed. Three red LEDs let you know the cooling fans are functioning properly. Another red LED informs you that the chassis is receiving power.
• FLEXIBILITY IN INSTALLATION GIVES YOU OPTIONS: Mounts into 3U of space in a EIA-standard 19-inch rack using the included hardware. It can also rest flat on any desktop or mount on a wall with the use of a shelf (not included) that is securely mounted.
• RELIABLE PRODUCT FULLY BACKED AND SUPPORTED: This product is covered by a Manufacturer's 1-Year Limited Warranty and is supported by Tripp Lite's Chicago-based expert technical support team over phone and email.

• Brand: ?Tripp Lite
• Series: ?Tripp,tripp lite
• Item model number: ?N785-CH12
• Item Weight: ?24.2 pounds
• Product Dimensions: ?24.06 x 16.69 x 13.9 inches
• Item Dimensions LxWxH: ?24.06 x 16.69 x 13.9 inches
• Color: ?Black
• Manufacturer: ?Tripp Lite

HOUSE, ORGANIZE AND POWER UP TO 12 TRIPP LITE MEDIA CONVERTERS: This media converter chassis accommodates as many as 12 Tripp Lite N784-H and N785-H multimedia converters, including SC, ST and SFP fiber types. You can easily install the media converters in the chassis' input slots using the included mounting brackets and hardware to create a variety of copper-to-fiber or copper-to-copper installations, including singlemode, multimode and open SFP port converters. The N785-CH12 is compatible with N784-H01-SCMM, N784-H01-STMM, N784-H01-SCSM, N785-H01-SCMM, N785-H01-SCSM and N785-H01-SFP converters. WORKS WITH DC AND AC POWER SUPPLIES: The N785-CH12 is compatible with both DC and AC power supplies, including the preinstalled N785-CH75W-AC with six-foot (1.8-meter) power cord, NEMA 5-15P input and preinstalled glass-tube fuse (two spare fuses are also included). A second power supply may be installed to provide redundant power to the chassis and avoid network downtime. A trigger guard helps prevent the power switch from being turned off accidentally. Note, only one type of power supply should be used. Do not mix DC and AC power supplies. Tripp Lite's N785-CH75W-DC power supply is sold separately. REAR FANS HELP PREVENT OVERHEATING: Three fans built into the rear of the chassis draw air inward to help keep the media converters cool. You may periodically clean the fans by removing the panel assembly. LEDS KEEP YOU INFORMED AT A GLANCE: Green LEDs on the front Status Monitoring Panel indicate when a media converter has been correctly installed in each input slot. These LEDs will not illuminate if an input slot is empty or if power is not being properly supplied. Three red LEDs let you know the cooling fans are functioning properly. Another red LED informs you that the chassis is receiving power. FLEXIBILITY IN INSTALLATION GIVES YOU OPTIONS: The N785-CH12 mounts into 3U of space in your EIA-standard 19-inch rack using the included hardware. It can also rest flat on any desktop or mount on a wall with the use of a shelf (not included) that is securely mounted to a suitable structure. The shelf must support at least 33 pounds (15 kilograms). It should not only be large enough to accommodate the chassis, but also allow sufficient space for adequate ventilation on all sides.

Package Contents:

• N785-CH12 Media Converter Chassis
• Power Supply with 6 ft. Power Cord NEMA 5-15P Plug and Glass-tube Fuse (Input: 90-240V, 50/60 Hz, 2A; Output: 12V 6.5A)
• 2 x Mounting Brackets
• 24 x Mounting Panels
• 2 x Rack-mount Kits
• 48 x M3 6x5 mm Screws
• 10 x F3 6x5 mm Screws
• 6 x M5 16x10 mm Screws
• 4 x M4 10x8 mm Screws
• 2 x Spare Glass-tube Fuses
• Owner's Manual
