tripp lite power management
Tripp Lite UPS Smart Online 1500VA 1350W Rackmount 120V LCD USB DB9 Preinstalled SNMPWEBCARD 2URM SU1500RTXLCDN
(No reviews yet)
Write a Review
- SKU:
- 18287016
- MPN:
- su1500rtxlcdn
- Availability:
- Usually ships the same or next business day. In stock at our CA, PA, SC, TX warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 12/18/2025 09:08:09 PM PST
- Stock Update:
- 12/18/2025 09:08:09 PM PST
Description
This item is brand-new, factory sealed.

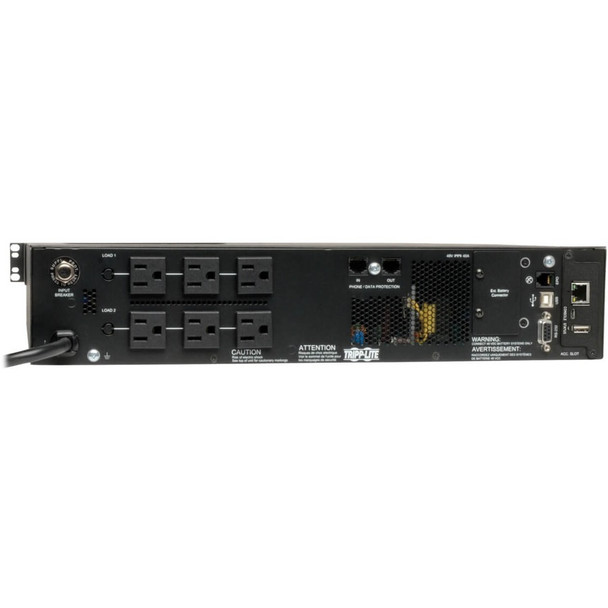

The SU1500RTXLCDN SmartOnline® 120V 1.5kVA 1.35kW On-Line Double-Conversion UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. It converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes.Featuring six NEMA 5-15R outlets in two switchable numbered load banks, as well as a NEMA 5-15P input, the SU1500RTXLCDN has an internal battery that provides 14 minutes of support at half load and 4.2 minutes at full load. Adding external battery packs, such as BP48V24-2U(sold separately), provides extended runtime.
The pre-installed SNMPWEBCARD accessory card permits remote management, including reboots, configuration, updates and activity logs. An interactive front-panel LCD interface displays operating conditions and diagnostic data, such as load, voltage and battery levels. You can set operating modes to reflect your protection priorities, including an optional economy mode that saves heat output and energy costs.
EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 570-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite's included POWERALERT12 software, the SU1500RTXLCDN enables safe unattended system shutdown and file saves in case of a prolonged power failure. An audible alarm indicates startup/shutdown, power failure, low battery, overload and fault conditions.

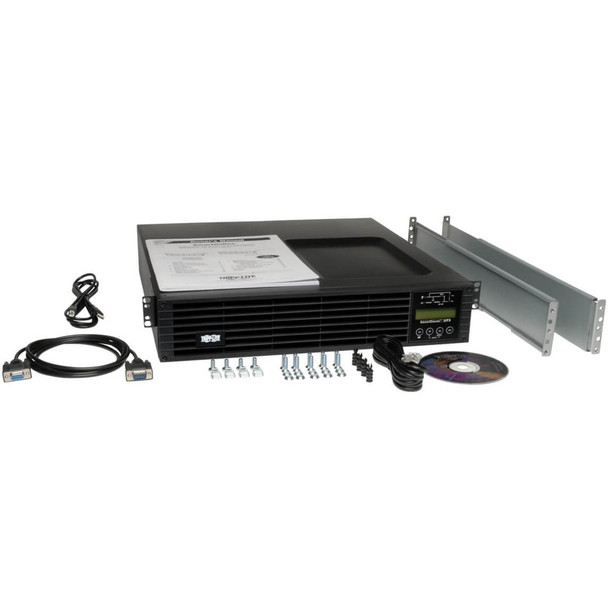

Package Contents:
- SmartOnline SU1500RTXLCDN 1500VA Tower/Rack/Wall Mountable UPS
- SNMPWEBCARD Web Management Card
- USB Cable
- DB9 Cable
- EPO Cable
- PowerAlert Software
- Mounting Hardware
- Owner's Manual
Features
Package Contents:
SmartOnline SU1500RTXLCDN 1500VA Rack/Tower UPS WEBCARDLXE Network Management Card USB Cable DB9 Cable Rack-mounting Hardware Tower support Stands Safety Instructions Quick Start Guide
Yes
Yes
Philippines
Environmentally Friendly:
Yes
Energy Star:
Yes
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Philippines
Specs
| Power Description | |
| Load Capacity (Watt) | 1350 W |
| Output Power Factor | 0.9 |
| Surge Energy Rating | 190 J |
| Input Power Factor | 0.99 |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Load Capacity (VA) | 1500 VA |
| Waveform Type | Pure Sine Wave |
| Output Frequency | 60 Hz |
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 42.55 lb |
| Height | 3.4" |
| Width | 17.3" |
| Depth | 17.7" |
| Rack Height | 2U |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 5.80 Minute |
| DC System Voltage | 48 V DC |
| Replaceable Battery | Yes |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 16.50 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Battery Characteristics | Valve-regulated |
| Display & Graphics | |
| Display | LCD |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU1500RTXLCDN provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48RT, sold separately). Pre-Installed LX Platform Network Management Card Allows Remote Access 24/7 The WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options. NEMA Outlets Protect Your Connected Components Eight 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads. Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. Clear LCD Interface Keeps You Informed at a Glance The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. The LCD rotates to accommodate both rack-mount and tower installation. Advanced Communications Ports Allow for Automatic Saves and Shutdowns RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown More from the Manufacturer |
| Product Type | Double Conversion Online UPS |
| Product Name | SmartOnline SU1500RTXLCDN 1500VA Rack/Tower UPS |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SU1500RTXLCDN |
| Product Model | SU1500RTXLCDN |
| Product Line | SmartOnline |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Overload Protection | Yes |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Application/Usage |
|
| Transfer Time | 0 ns |
| Management | |
| Network Management | Network Card |
| Alarm |
|
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 32°F (0°C) - 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft |
