Tripp Lite 3-Phase PDU Monitored 14.5kW 200/208/240V 42 C13; 6 C19 60A 0URM (pdu3evn10g60b)
(No reviews yet)
Write a Review
- SKU:
- 18466417
- MPN:
- pdu3evn10g60b
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 02/04/2026 04:44:07 PM PST
- Stock Update:
- 02/04/2026 04:44:07 PM PST
Description
This item is brand-new, factory sealed.

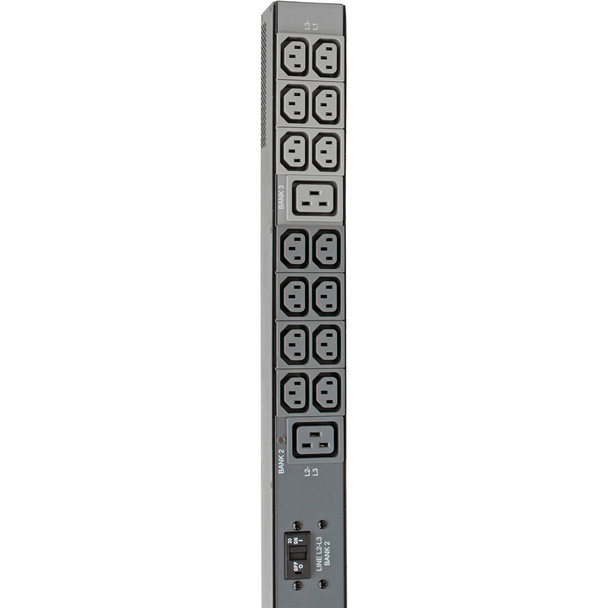

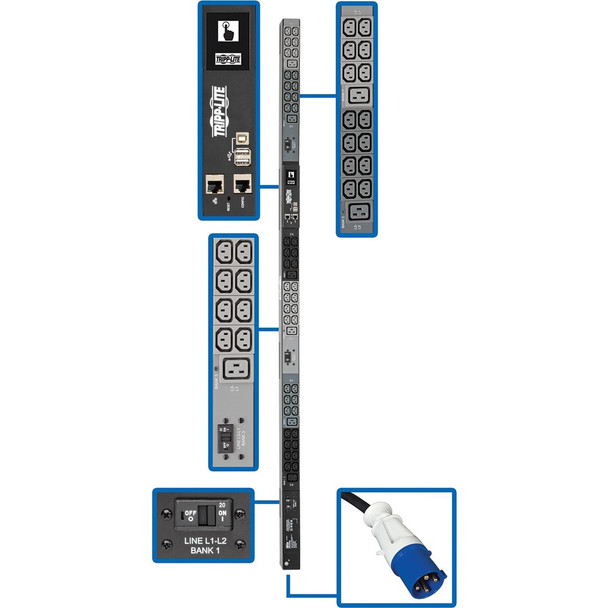

The PDU3EVN10G60B 14.5kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. These advanced remote capabilities can save you money and reduce downtime.Recommended for your IT or industrial application, the monitored PDU features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with IEC 309 60A Blue (3P+E) input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.

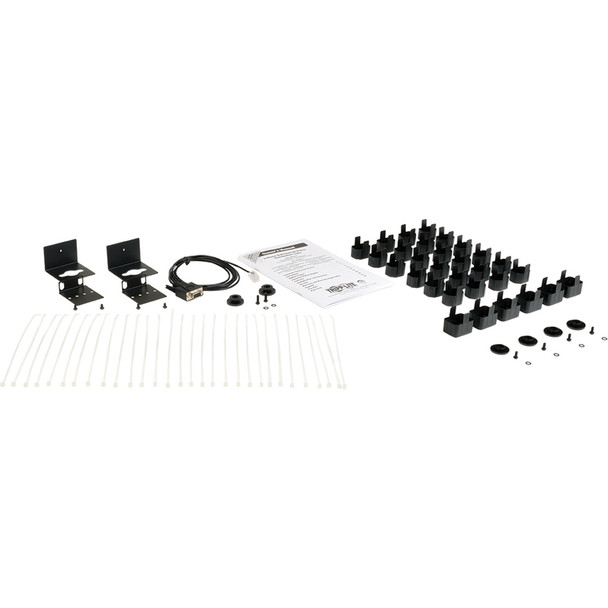

Package Contents:
- PDU3EVN10G60B 48-Outlet PDU
- Built-in LX Platform Interface
- Configuration Cable
- 48 x Plug-lock Insert Sleeves
- Rack-mounting Hardware
- Mounting Bracket Accessory
- Owner's Manual
Features
Package Contents:
Yes
Yes
Restriction of Hazardous Substances (RoHS)
Taiwan
- PDU3EVN10G60B 48-Outlet PDU
- Built-in LX Platform Interface
- Configuration Cable
- 48 x Plug-lock Insert Sleeves
- Rack-mounting Hardware
- Mounting Bracket Accessory
- Owner's Manual
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Power Rating (Watt) | 14.50 kW |
| Input Voltage | 230 V AC |
| Output Voltage |
|
| Input Current | 35 A |
| Physical Characteristics | |
| Weight (Approximate) | 18.66 lb |
| Mount Type | Rack-mountable |
| Height | 70" |
| Mounting Orientation | Vertical |
| Width | 2.2" |
| Rack Height | 0U |
| Depth | 2.5" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The PDU3EVN10G60B 14.5kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. These advanced remote capabilities can save you money and reduce downtime. Recommended for your IT or industrial application, the monitored PDU features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with IEC 309 60A Blue (3P+E) input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A color touchscreen LCD lets you toggle between menus to input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device. More from the Manufacturer |
| Product Type | PDU |
| Product Name | PDU3EVN10G60B 48-Outlet PDU |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDU3EVN10G60B |
| Product Model | PDU3EVN10G60B |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 60A BLUE (3P+E) |
| PDU Type | Monitored |
| Protection Type | Overload Protection |
| Management | |
| Management | <b>Protocols:</b><br /> <ul> <li>IPv4</li> <li>IPv6</li> <li>HTTP</li> <li>HTTPS</li> <li>SMTP</li> <li>SNMPv1</li> <li>SNMPv2</li> <li>SNMPv3</li> <li>telnet</li> <li>SSH</li> <li>FTP</li> <li>DHCP</li> <li>NTP</li> </ul> |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
